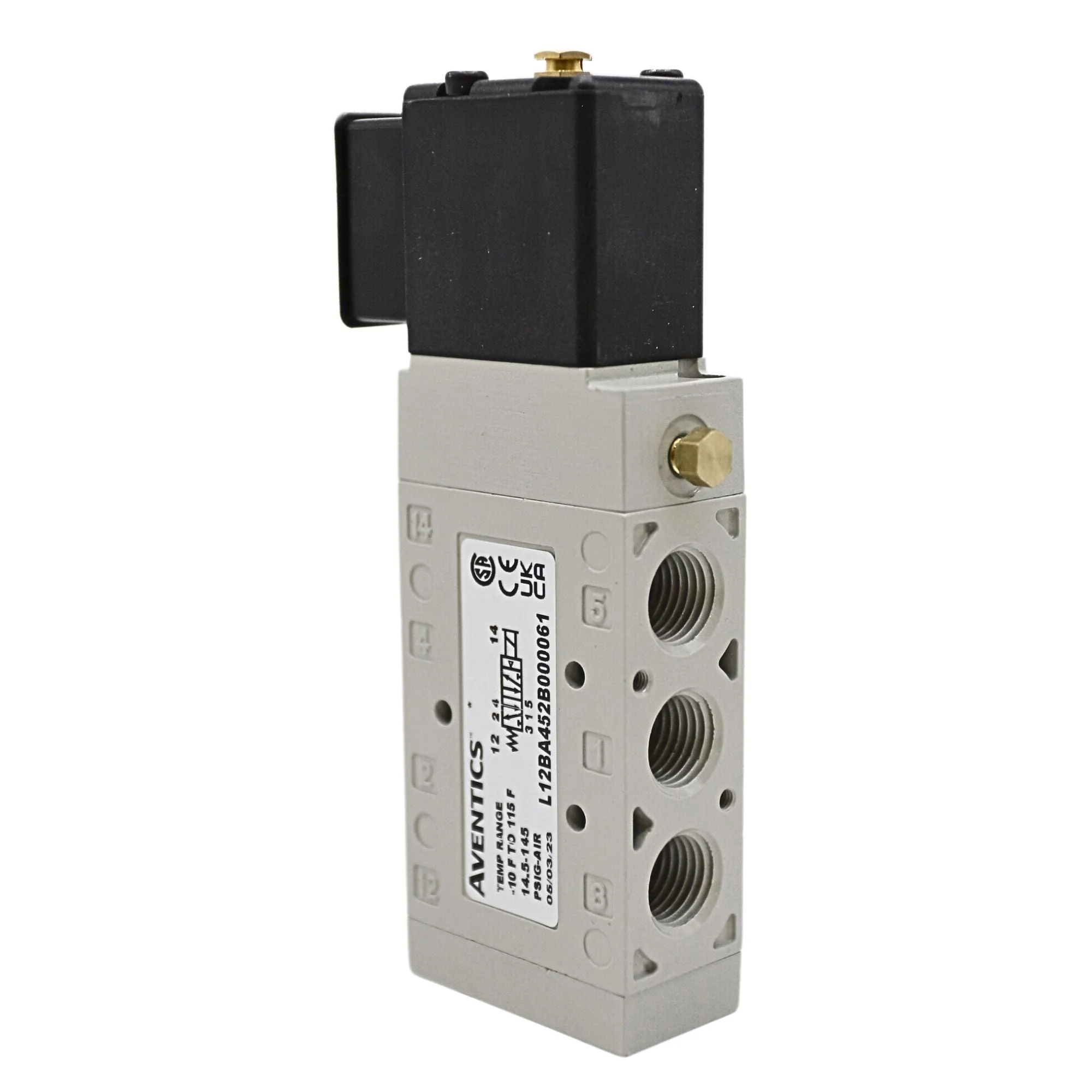

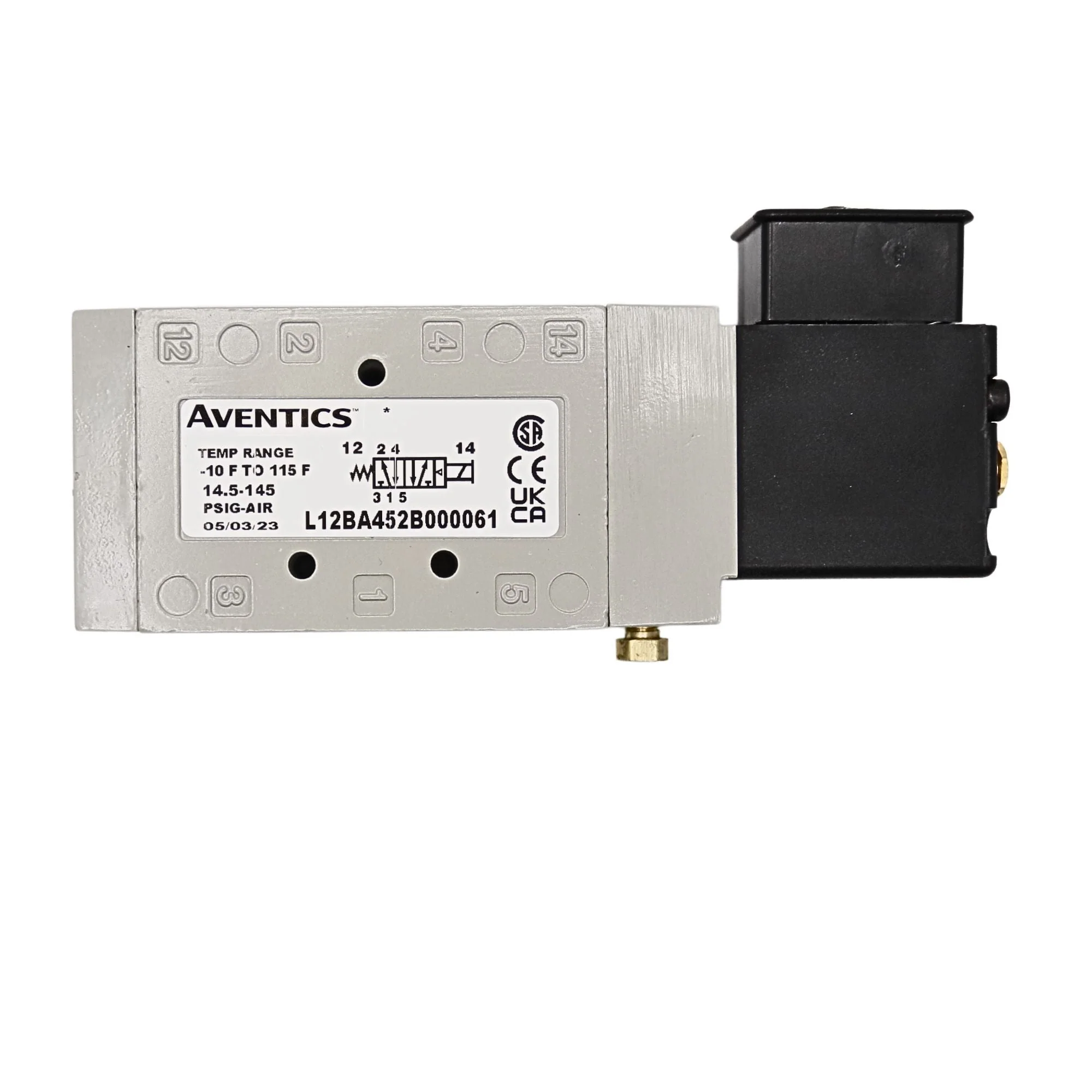

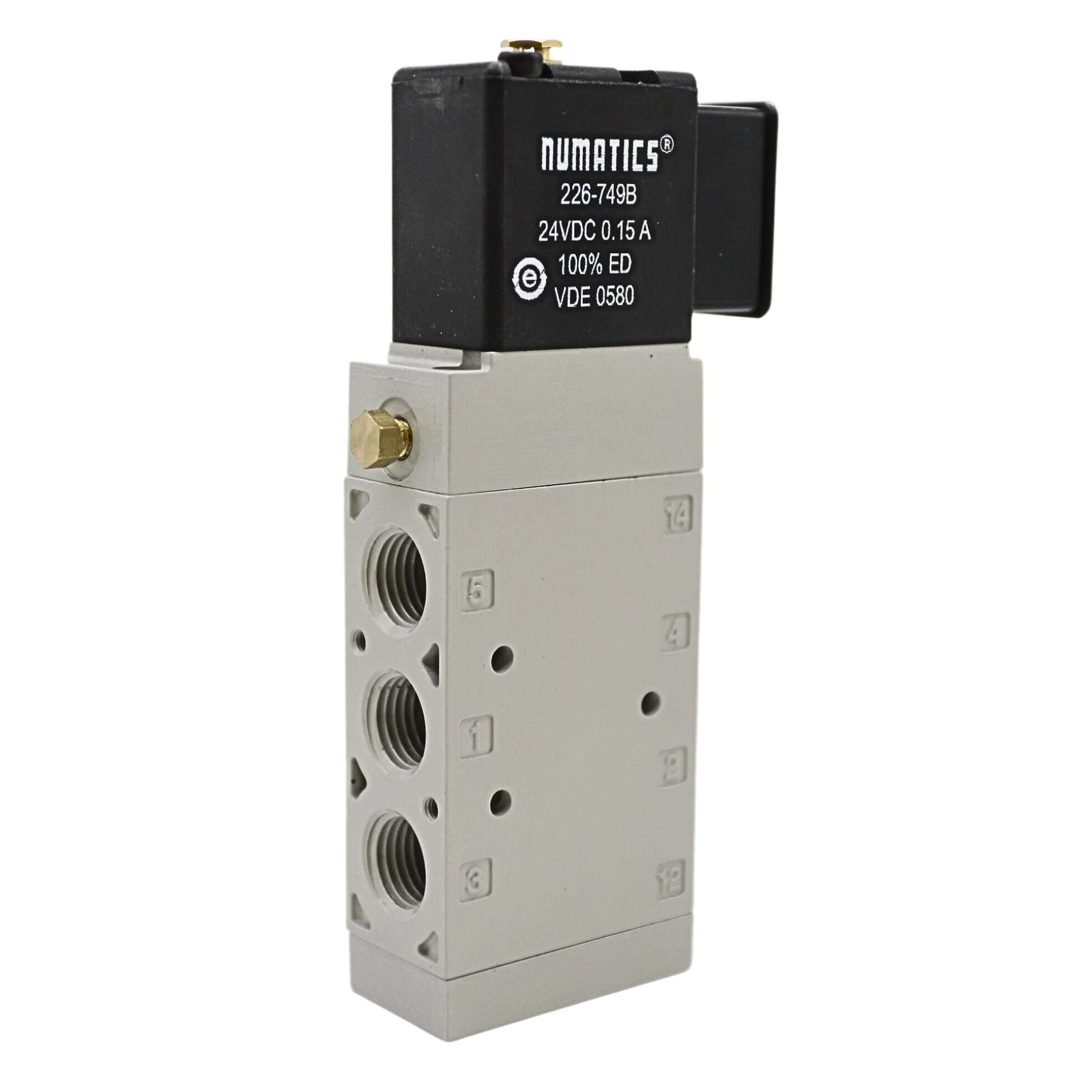

Numatics | Aventics - SOL-Pilot Valve L1 Series 4/2 SPR RTN 24VDC,1/4 in NPT | L12BA452B000061
Numatics L1 series single solenoid valve has pressure rating of 28" Hg vacuum to 150 psig features 1/4" NPTF connection and 24 VDC coil
The L1 Series air valves offer speed and high flow capacity in a compact design. They are available either with solenoid pilot or air pilot actuation. The L1's slim design (.875 in body width) is ideal for inline mounting, while it may also be mounted on one piece extruded manifolds from 2 to 12 stations. A 12 station L1 manifold is only 14.11 inches wide.
- Solenoid pilot or air pilot actuated
- Unlubricated or lubricated service
Original: $103.61
-65%$103.61
$36.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Numatics L1 series single solenoid valve has pressure rating of 28" Hg vacuum to 150 psig features 1/4" NPTF connection and 24 VDC coil
The L1 Series air valves offer speed and high flow capacity in a compact design. They are available either with solenoid pilot or air pilot actuation. The L1's slim design (.875 in body width) is ideal for inline mounting, while it may also be mounted on one piece extruded manifolds from 2 to 12 stations. A 12 station L1 manifold is only 14.11 inches wide.
- Solenoid pilot or air pilot actuated
- Unlubricated or lubricated service
