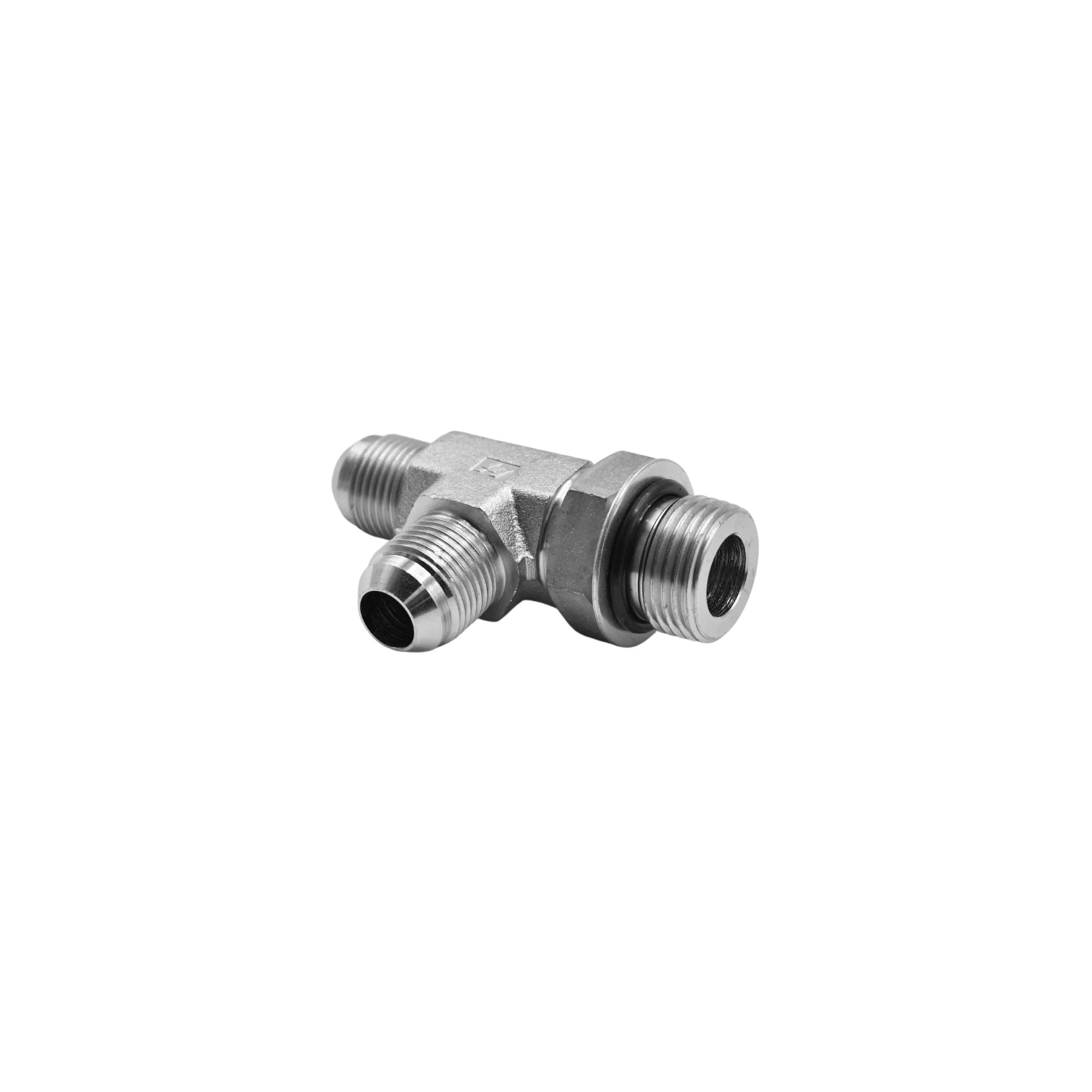

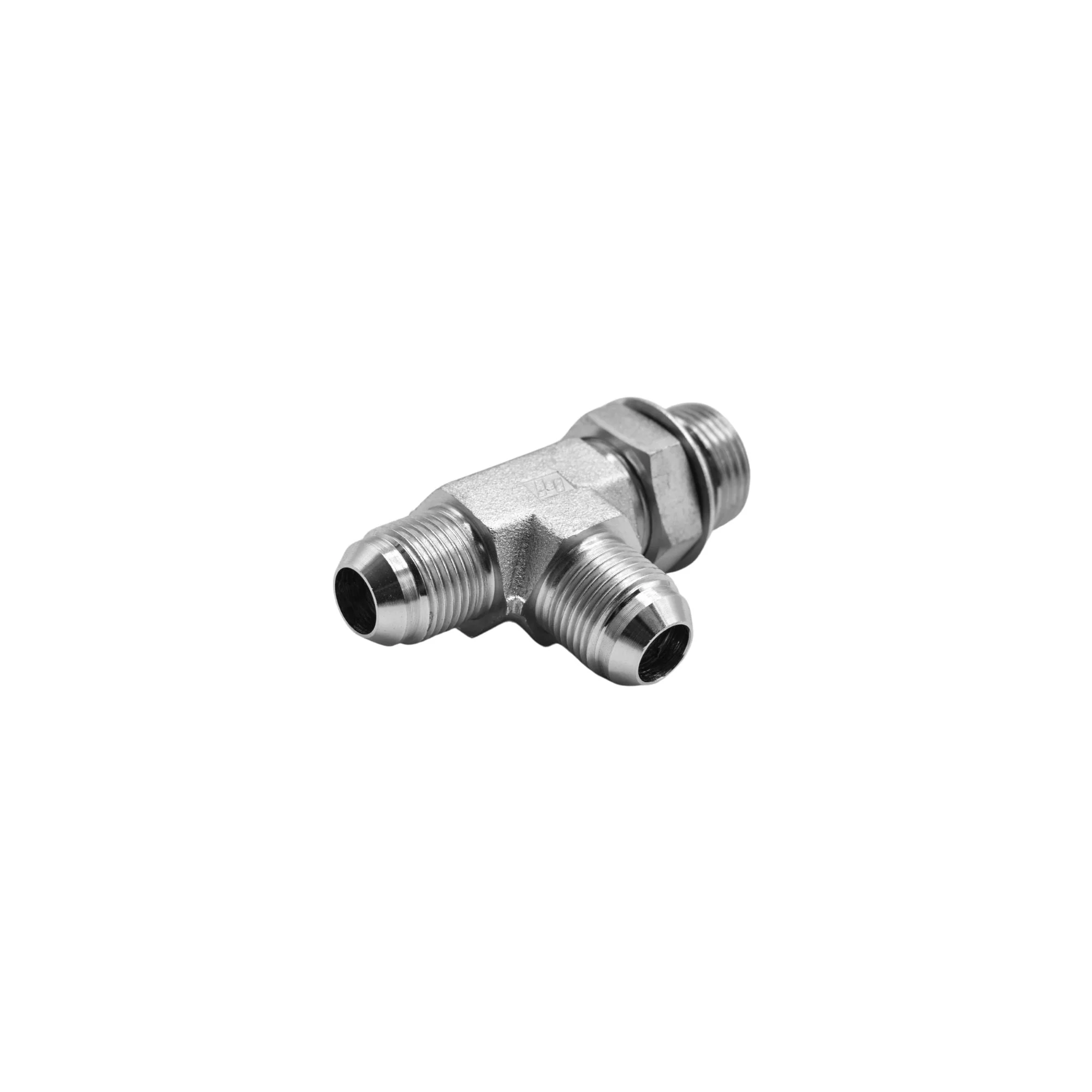

Hydraulics | JIC to ORB Run Tee | 6804-10-12-10-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.540 |
| CENTERLINE LENGTH M IN | 1.540 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.6937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$11.55
Original: $33.01
-65%Hydraulics | JIC to ORB Run Tee | 6804-10-12-10-NWO-FG—
$33.01
$11.55Product Information
