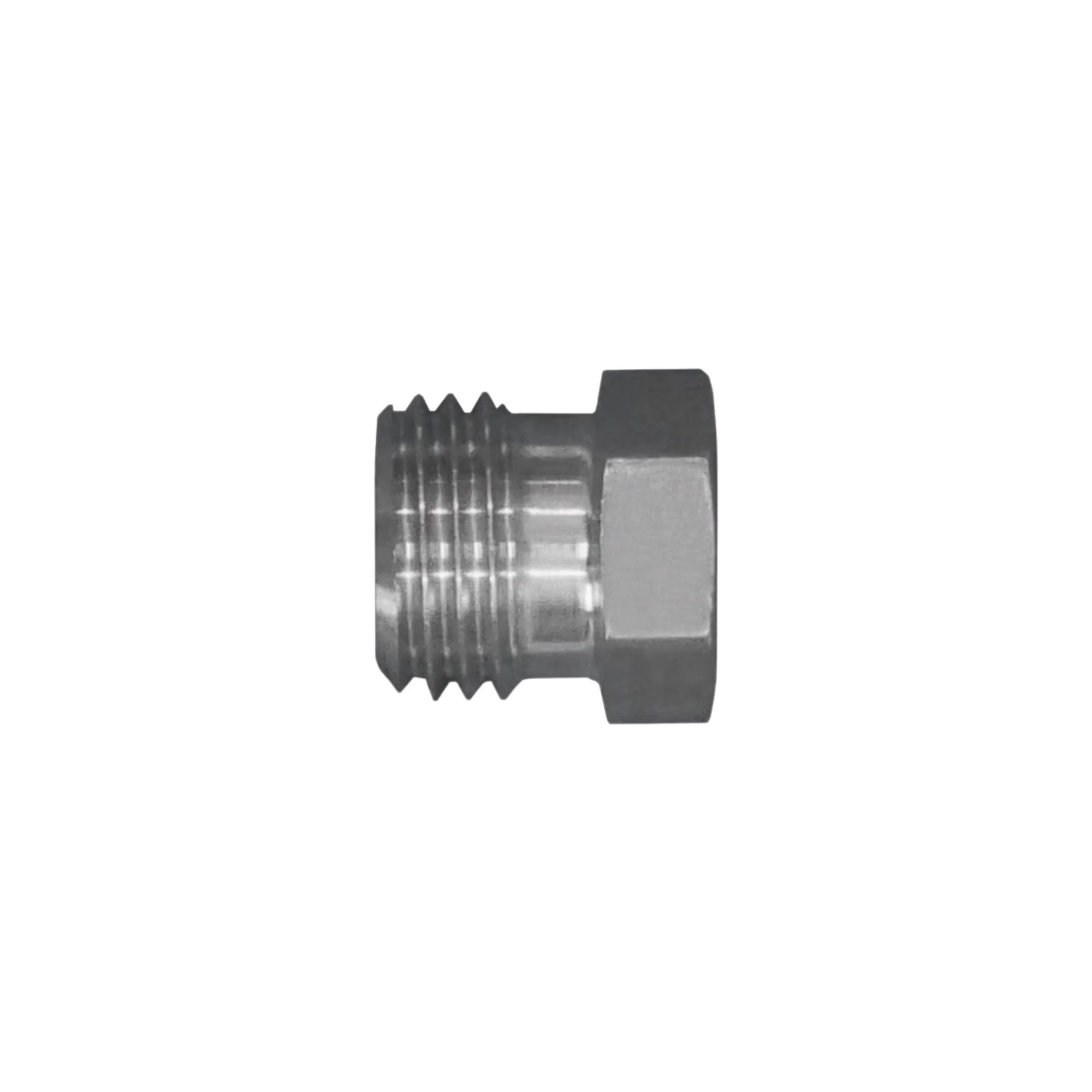

Hydraulics | DIN H Series Tube Plug | D2408-S06-X
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 18.0 |
| OVERALL LENGTH L2 (MM) | 11.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.042 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.215 |
$4.99
Hydraulics | DIN H Series Tube Plug | D2408-S06-X—
$4.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| CONNECTION 1 TYPE | MALE METRIC 24 DEGREE DIN SEAT |
| CONNECTION 1 THREAD SIZE | M14X1.5 |
| CONNECTION 1 TUBE SIZE | HEAVY 06MM TUBE OD |
| CONNECTION 1 SPECIFICATION | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| OVERALL LENGTH L1 (MM) | 18.0 |
| OVERALL LENGTH L2 (MM) | 11.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| WEIGHT (LBS) | 0.042 |
| MAXIMUM DYNAMIC PRESSURE (BAR) | 800 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.215 |
