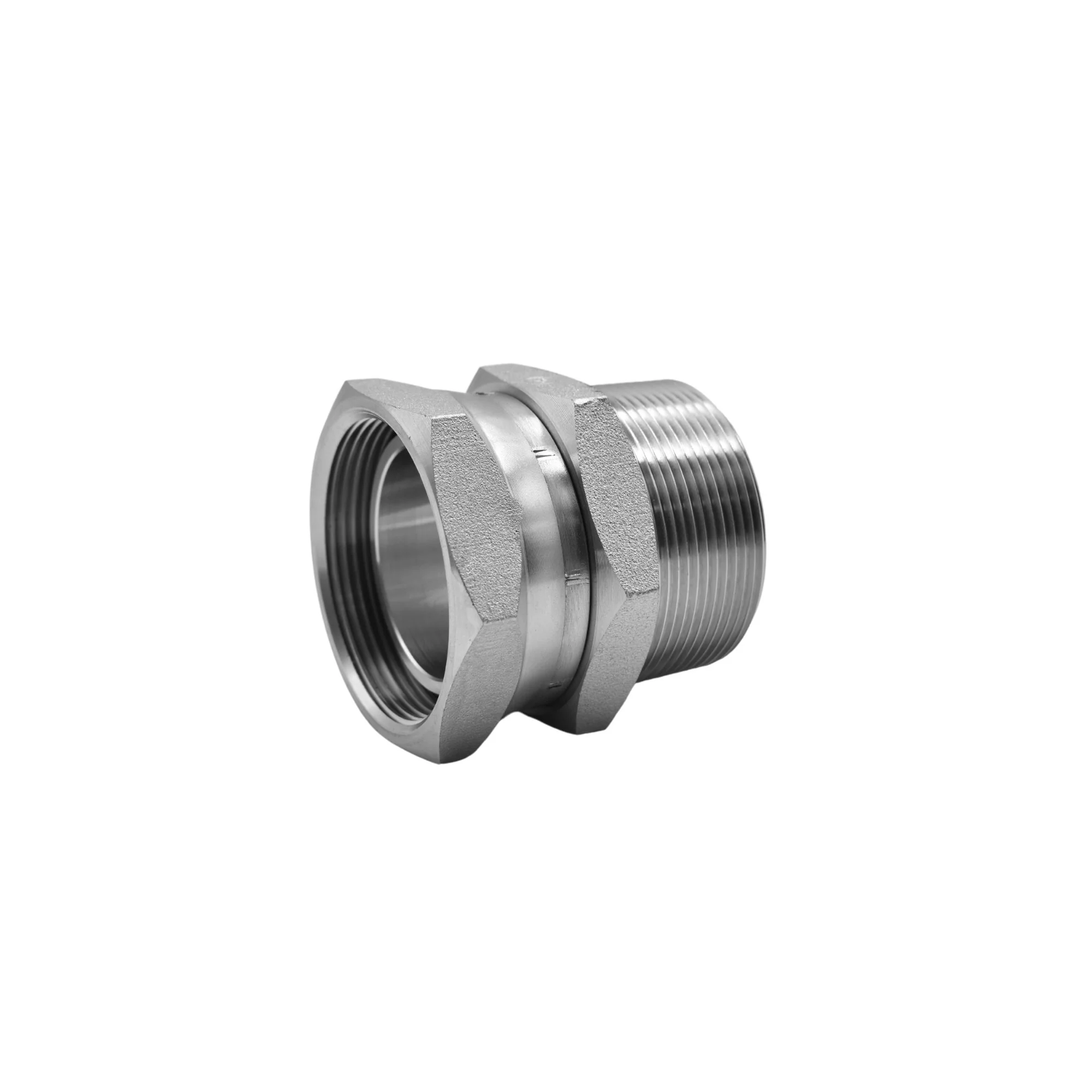

Hydraulics | 32MP-32FPS Straight | 1404-32-32
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 2-11-1/2 |
| THREAD B2 DRILL IN | 1.72 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.625 |
| C HEX 1 IN | 2.625 |
| OVERALL LENGTH L IN | 2.820 |
| OVERALL LENGTH L2 IN | 2.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.88 |
| MAXIMUM DYNAMIC PRESSURE PSI | 1,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 19.432 |
$23.85
Original: $68.15
-65%Hydraulics | 32MP-32FPS Straight | 1404-32-32—
$68.15
$23.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 2-11-1/2 |
| THREAD B2 DRILL IN | 1.72 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.625 |
| C HEX 1 IN | 2.625 |
| OVERALL LENGTH L IN | 2.820 |
| OVERALL LENGTH L2 IN | 2.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.88 |
| MAXIMUM DYNAMIC PRESSURE PSI | 1,100 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 19.432 |
