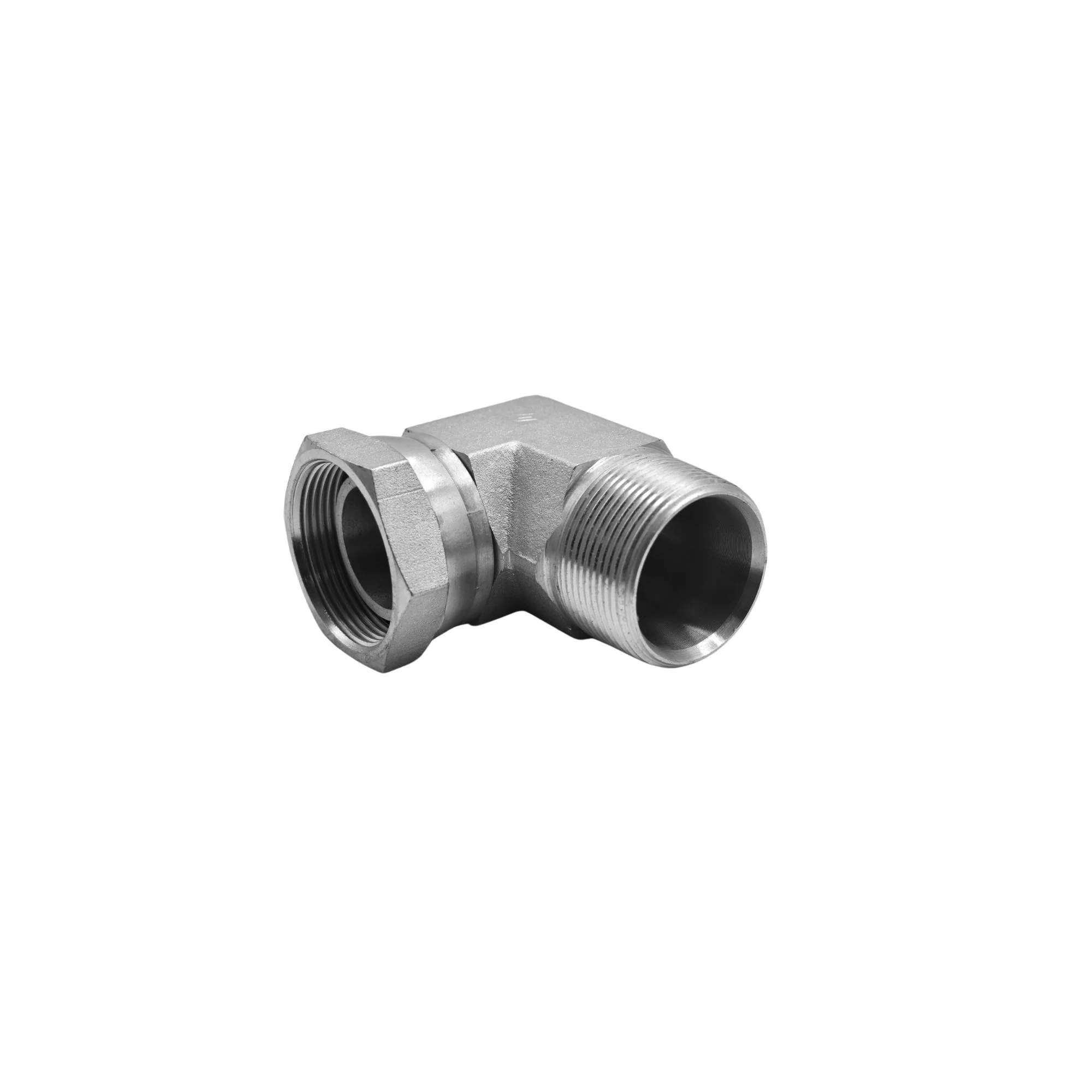

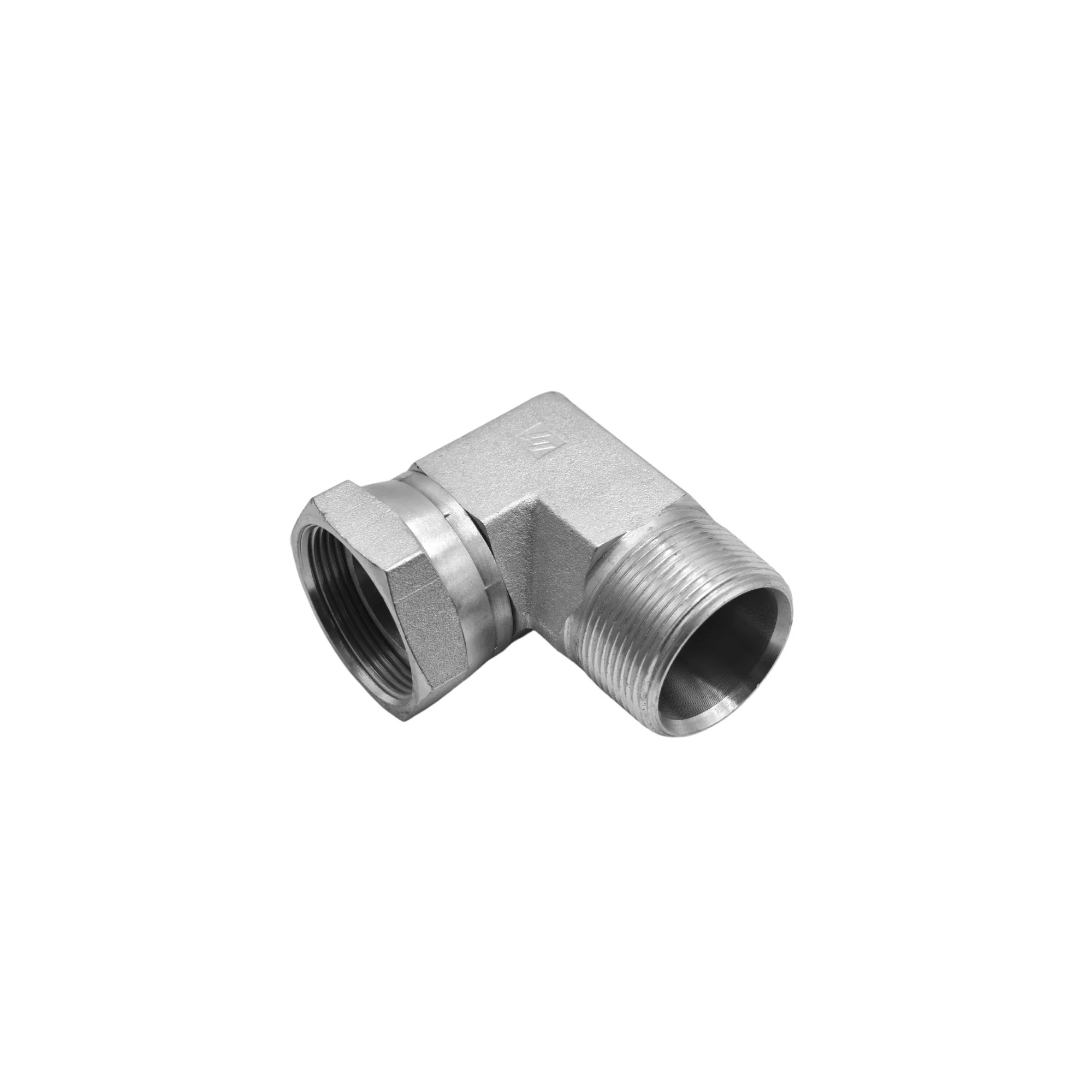

Hydraulics | 24MP-24FPS 90* Elb Forg | 1501-24-24-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 2.640 |
| CENTERLINE LENGTH M IN | 2.310 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.825 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 25.551 |
$23.29
Original: $66.53
-65%Hydraulics | 24MP-24FPS 90* Elb Forg | 1501-24-24-FG—
$66.53
$23.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 2.640 |
| CENTERLINE LENGTH M IN | 2.310 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.825 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 25.551 |
