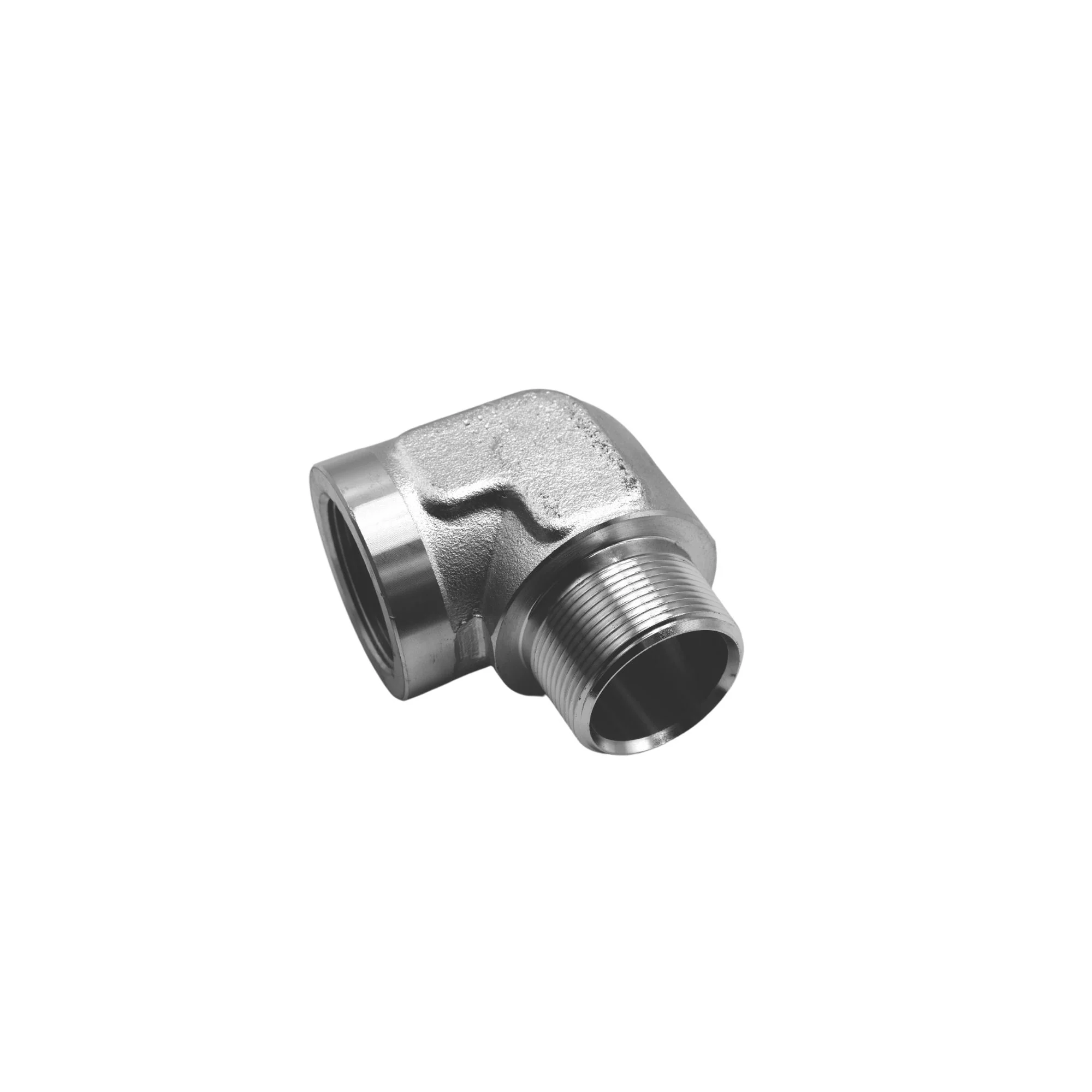

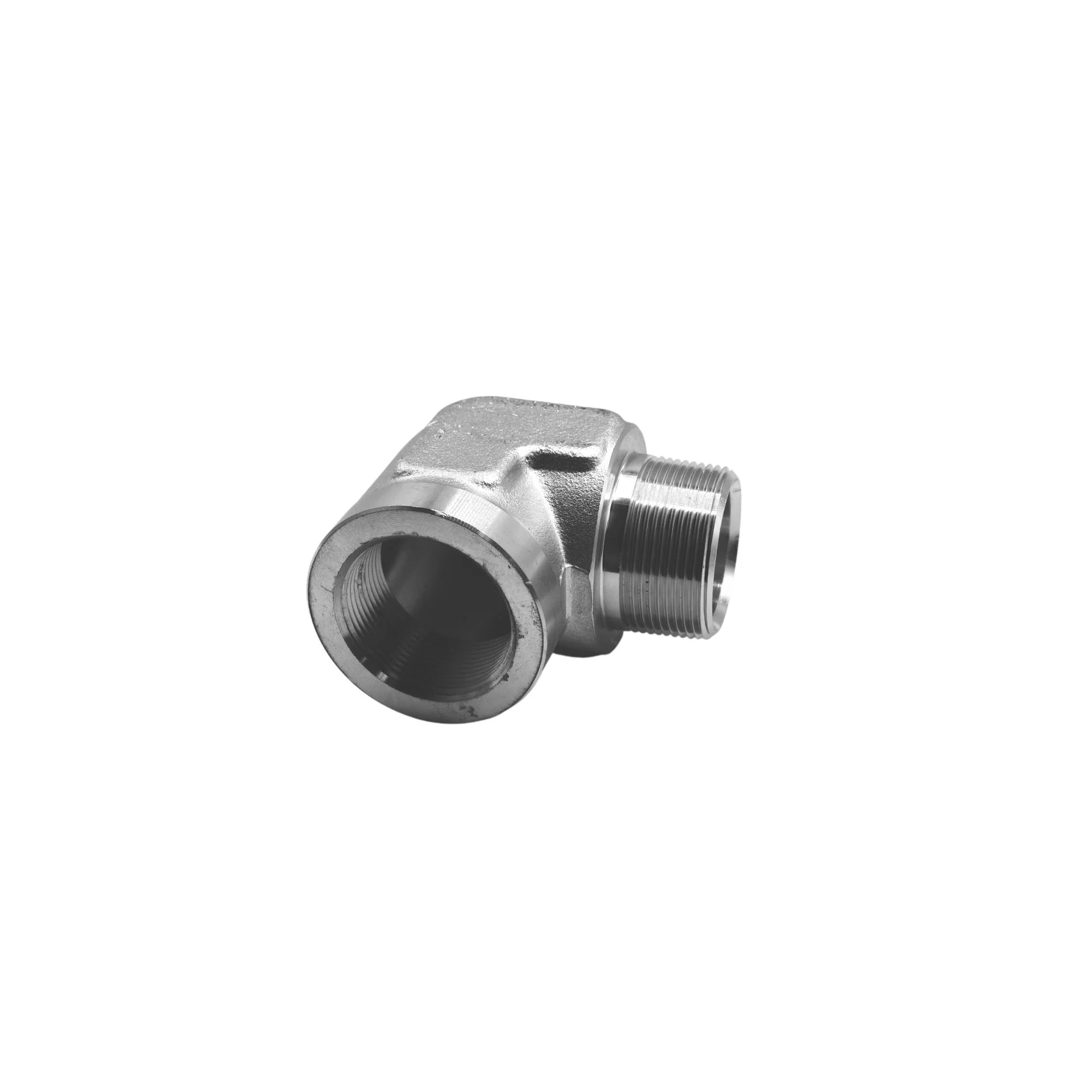

Hydraulics | 24MP-24FP 90deg Street Elb Forg | 5502-24-24-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.500 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.562 |
| OVERALL LENGTH L IN | 2.080 |
| CENTERLINE LENGTH M IN | 2.640 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 3.9437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 33.763 |
$33.77
Original: $96.48
-65%Hydraulics | 24MP-24FP 90deg Street Elb Forg | 5502-24-24-FG—
$96.48
$33.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.500 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.562 |
| OVERALL LENGTH L IN | 2.080 |
| CENTERLINE LENGTH M IN | 2.640 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 3.9437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 33.763 |
