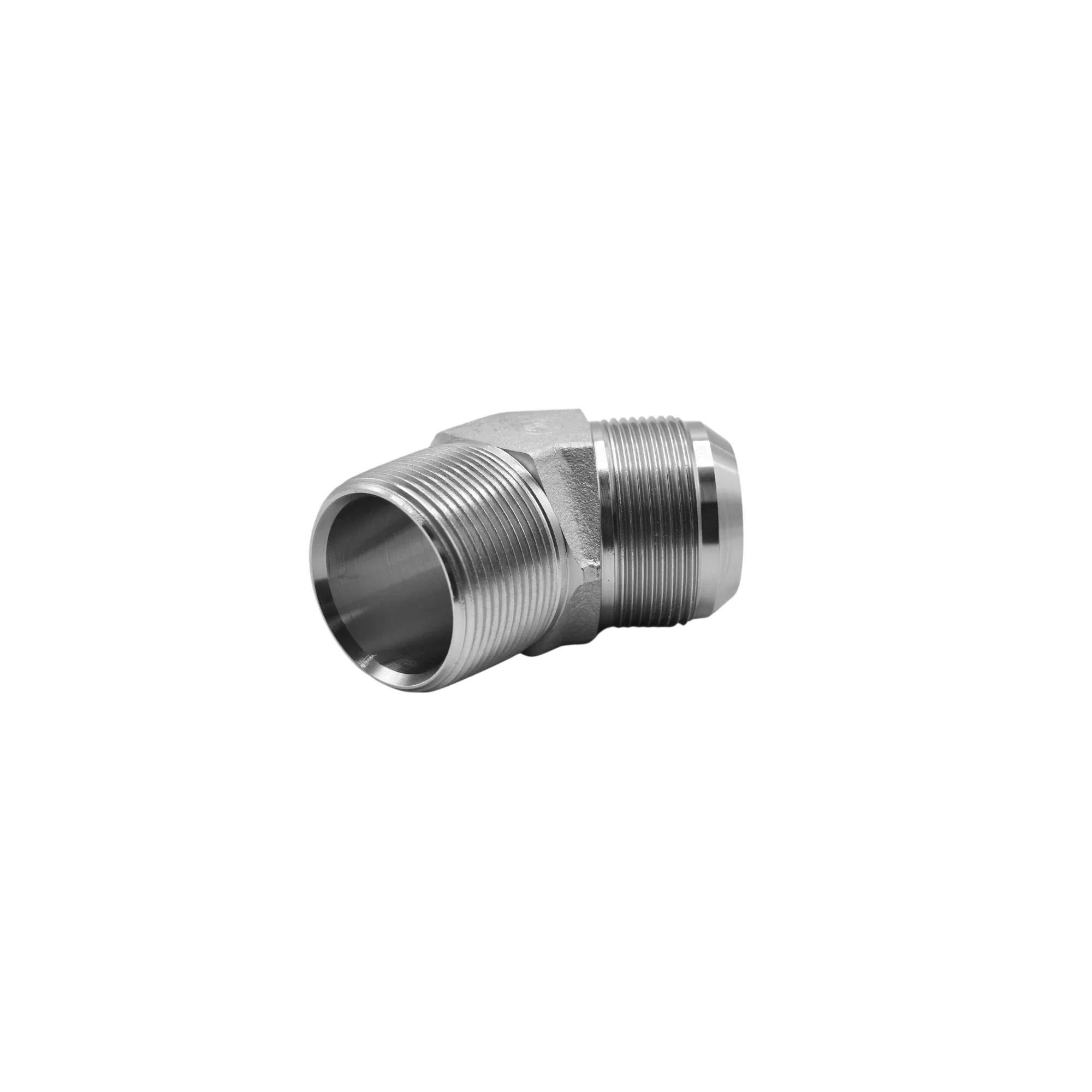

Hydraulics | 24MJ-24MP 45deg Elb Forg | 2503-24-24-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.500 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 1.770 |
| CENTERLINE LENGTH M IN | 1.780 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.1312 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 18.022 |
$17.86
Original: $51.03
-65%Hydraulics | 24MJ-24MP 45deg Elb Forg | 2503-24-24-FG—
$51.03
$17.86Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.500 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 1.770 |
| CENTERLINE LENGTH M IN | 1.780 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.1312 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 18.022 |
