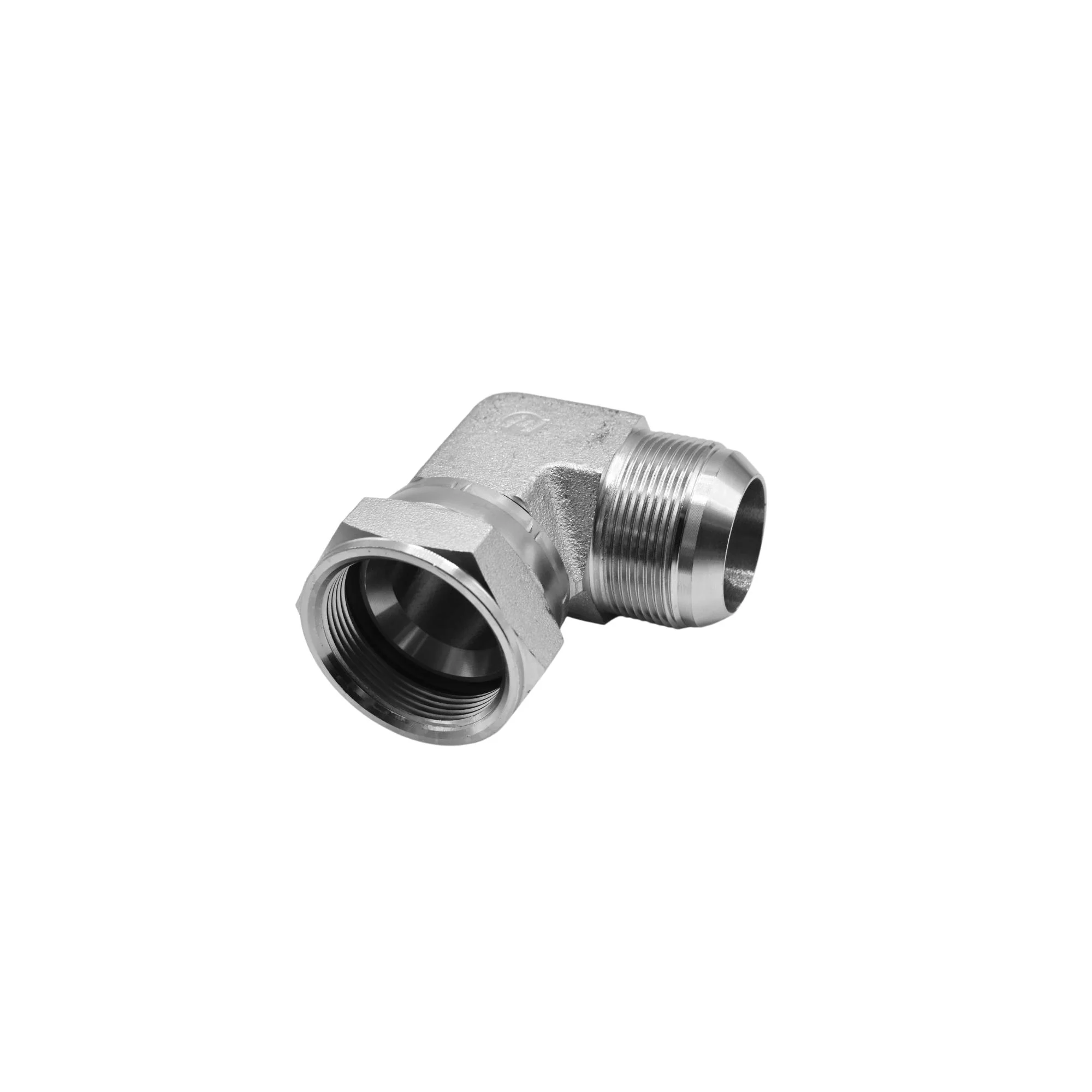

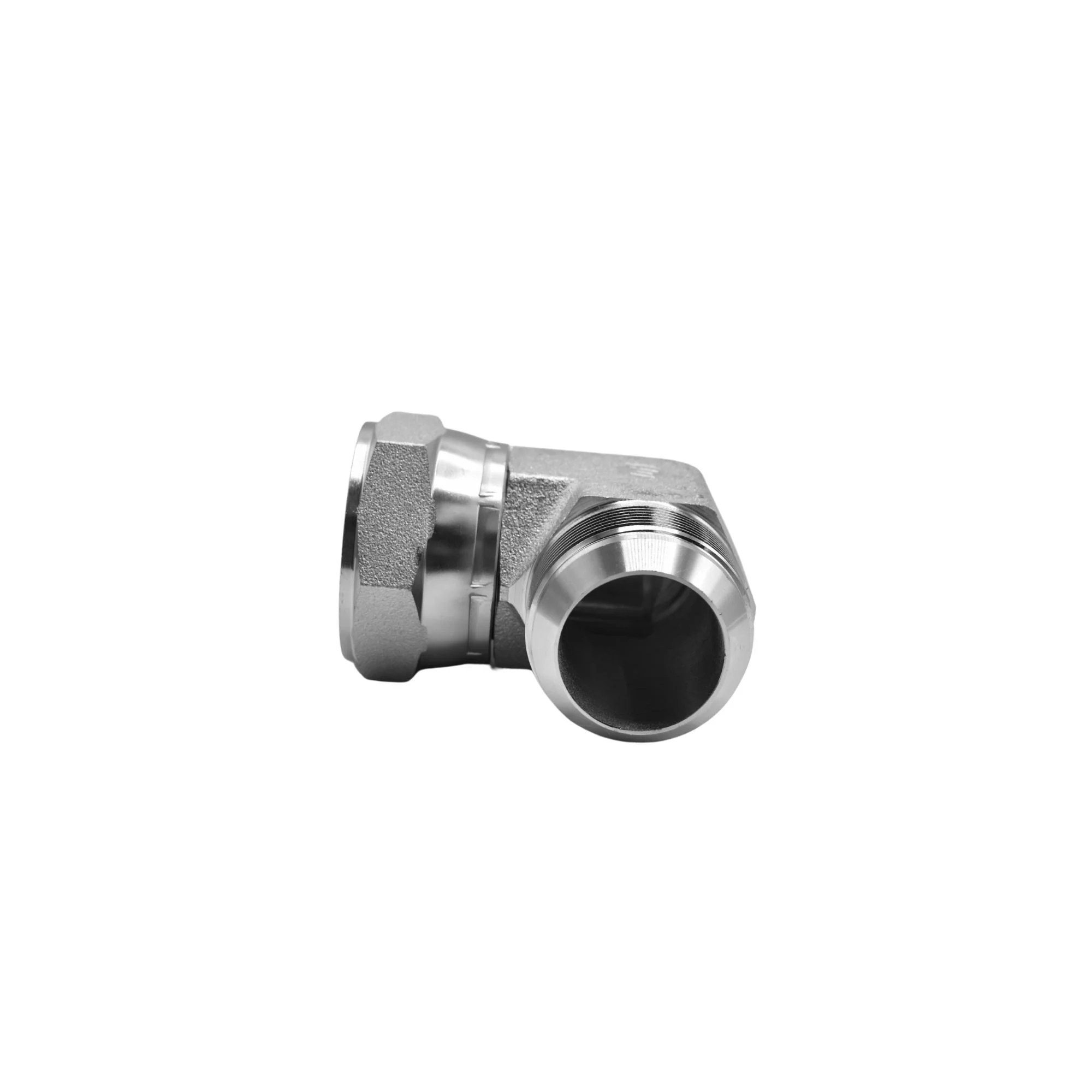

Hydraulics | 24MJ-24FJS 90deg Elb Forg | 6500-24-24-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.250 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.590 |
| OVERALL LENGTH L2 IN | 1.870 |
| CENTERLINE LENGTH M IN | 2.330 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.0812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$17.91
Original: $51.16
-65%Hydraulics | 24MJ-24FJS 90deg Elb Forg | 6500-24-24-FG—
$51.16
$17.91Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.250 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.590 |
| OVERALL LENGTH L2 IN | 1.870 |
| CENTERLINE LENGTH M IN | 2.330 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.0812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
