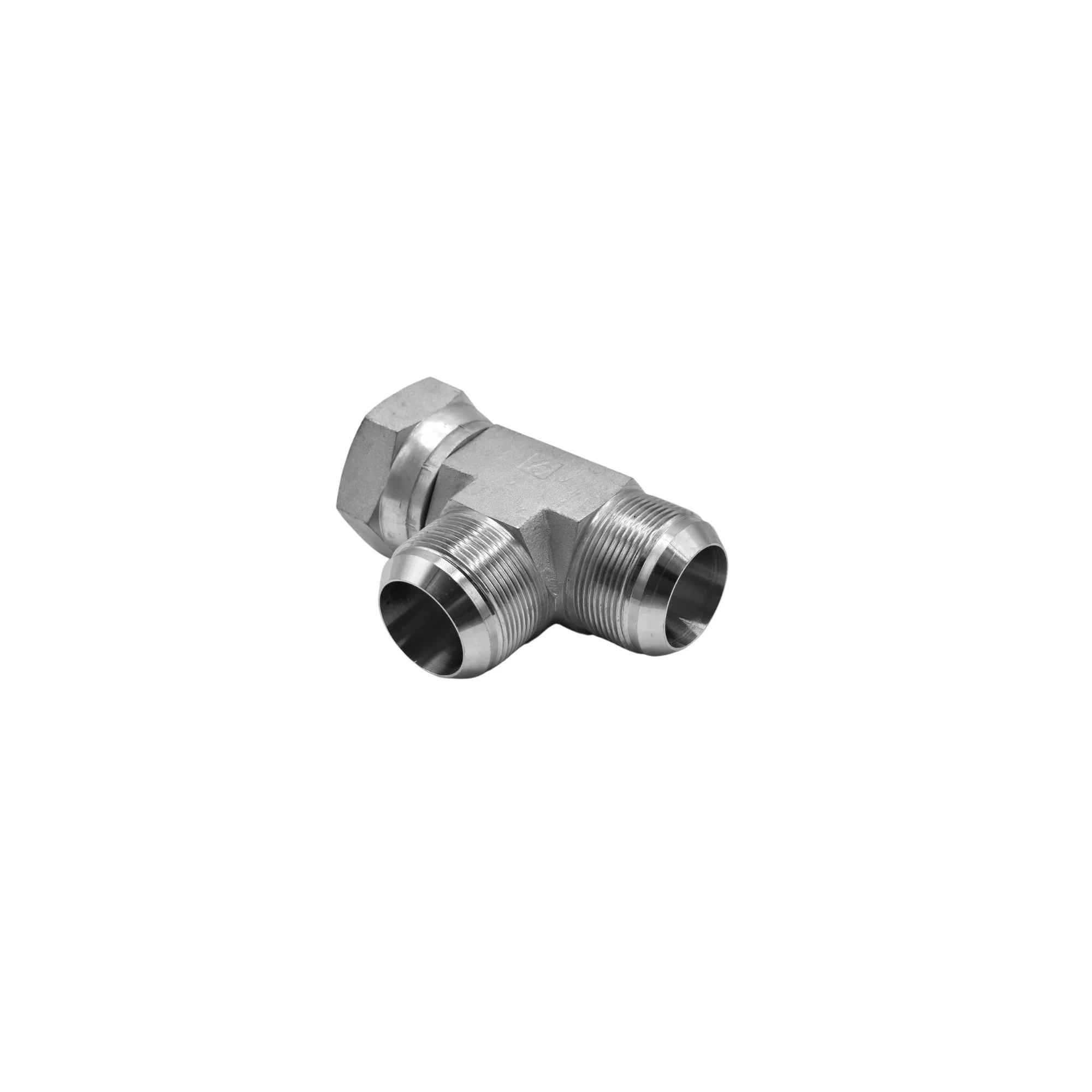

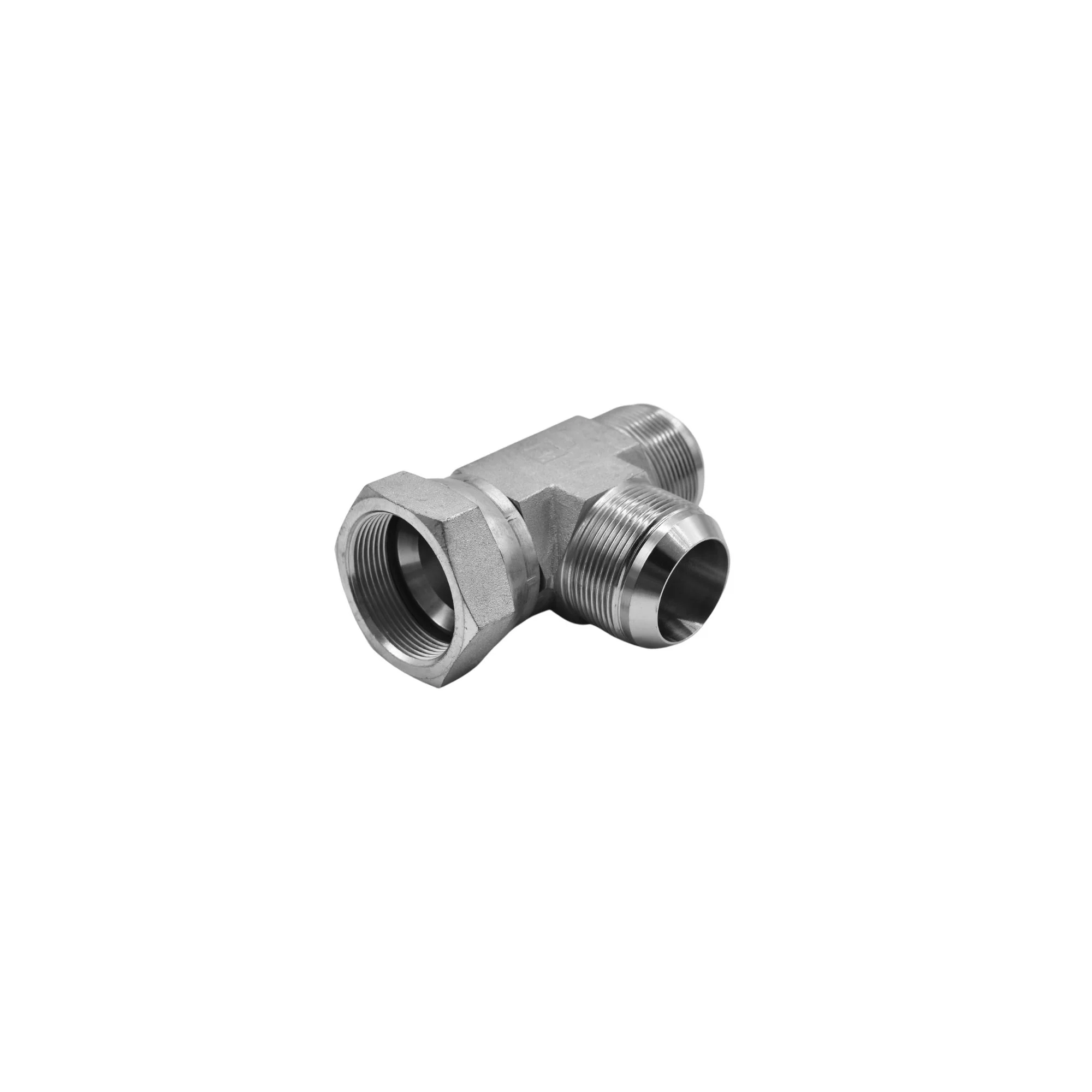

Hydraulics | 24MJ-24FJS-24MJ Tee Forg | 6602-24-24-24-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.250 |
| OVERALL LENGTH L IN | 2.330 |
| CENTERLINE LENGTH M IN | 2.330 |
| CENTERLINE LENGTH M2 IN | 2.590 |
| CENTERLINE LENGTH M3 IN | 1.870 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.4187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$36.90
Original: $105.43
-65%Hydraulics | 24MJ-24FJS-24MJ Tee Forg | 6602-24-24-24-FG—
$105.43
$36.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.250 |
| OVERALL LENGTH L IN | 2.330 |
| CENTERLINE LENGTH M IN | 2.330 |
| CENTERLINE LENGTH M2 IN | 2.590 |
| CENTERLINE LENGTH M3 IN | 1.870 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.4187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
