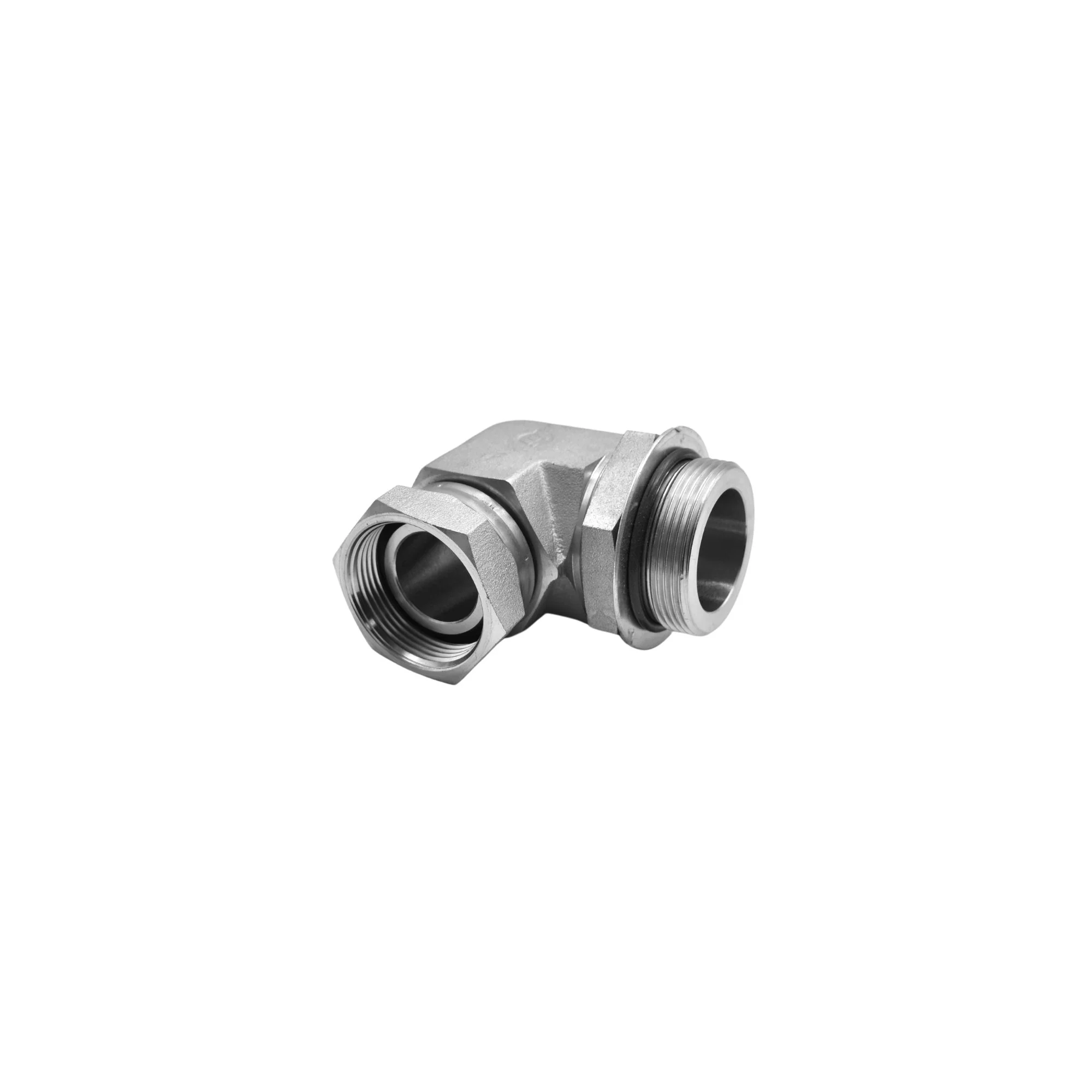

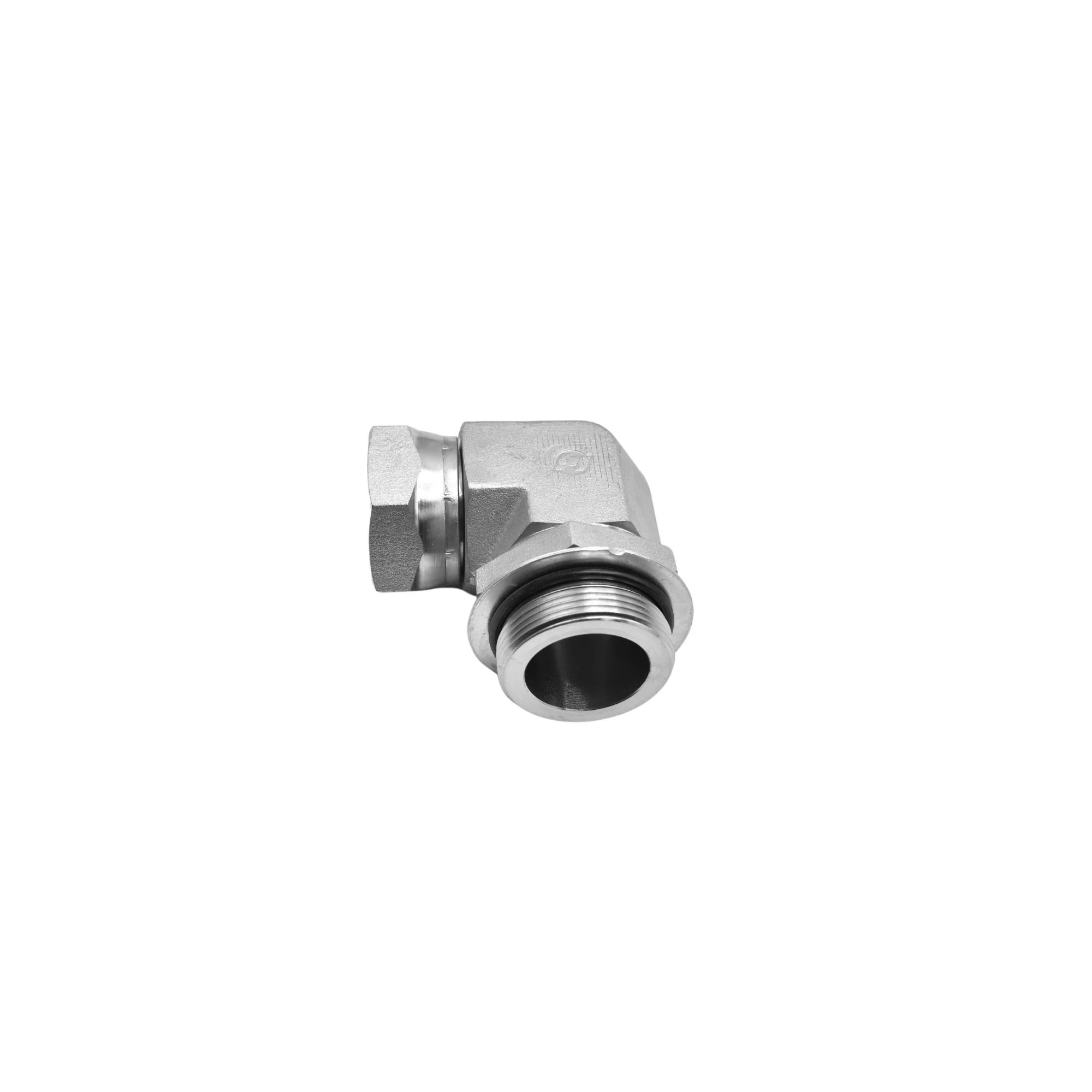

Hydraulics | 24MAORB-20FPS 90deg Elb Forg | 6901-24-20-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.01/1.16 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| C HEX 2 IN | 1.875 |
| OVERALL LENGTH L IN | 2.250 |
| OVERALL LENGTH L2 IN | 1.830 |
| CENTERLINE LENGTH M IN | 2.390 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 2.2812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$20.54
Original: $58.68
-65%Hydraulics | 24MAORB-20FPS 90deg Elb Forg | 6901-24-20-NWO-FG—
$58.68
$20.54Product Information
