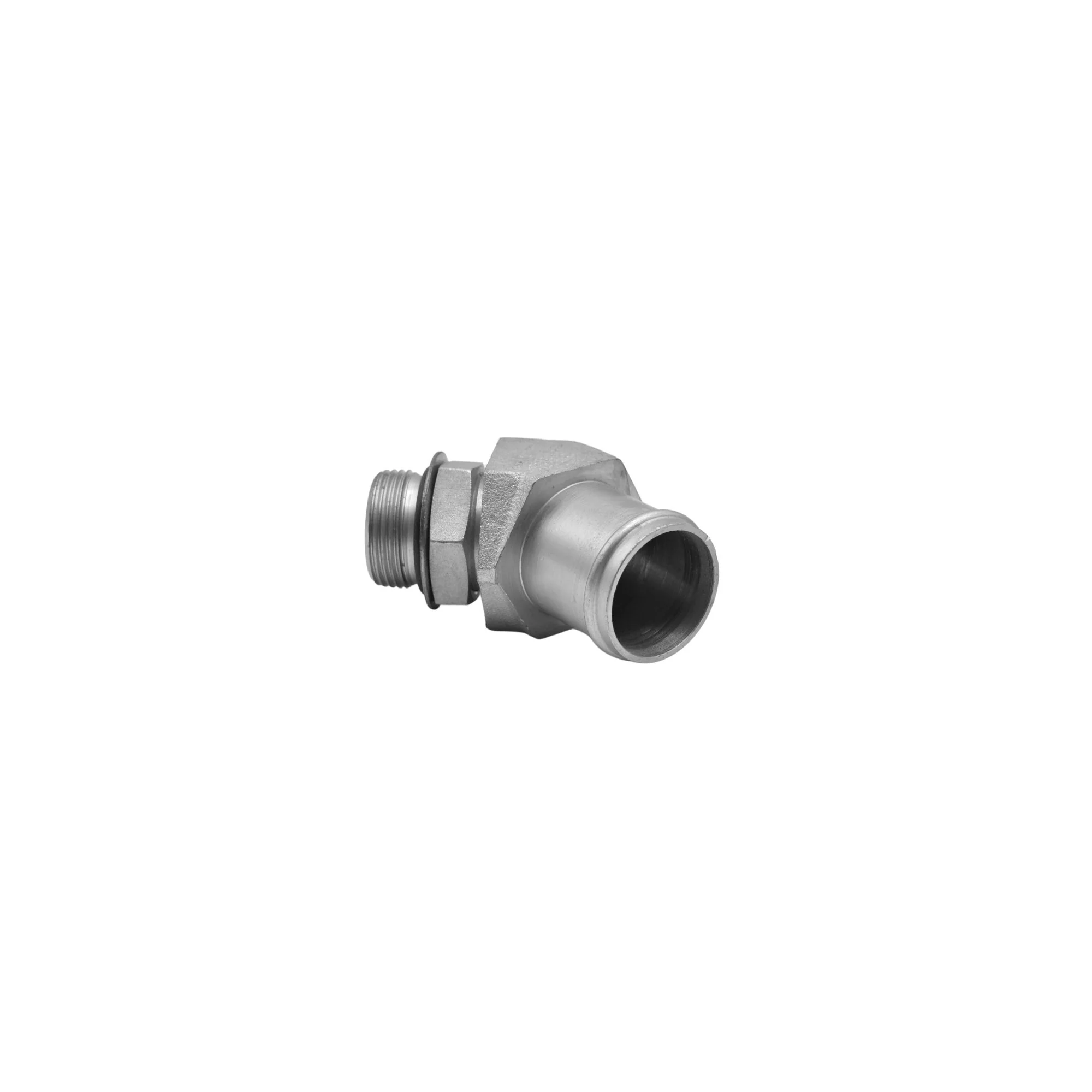

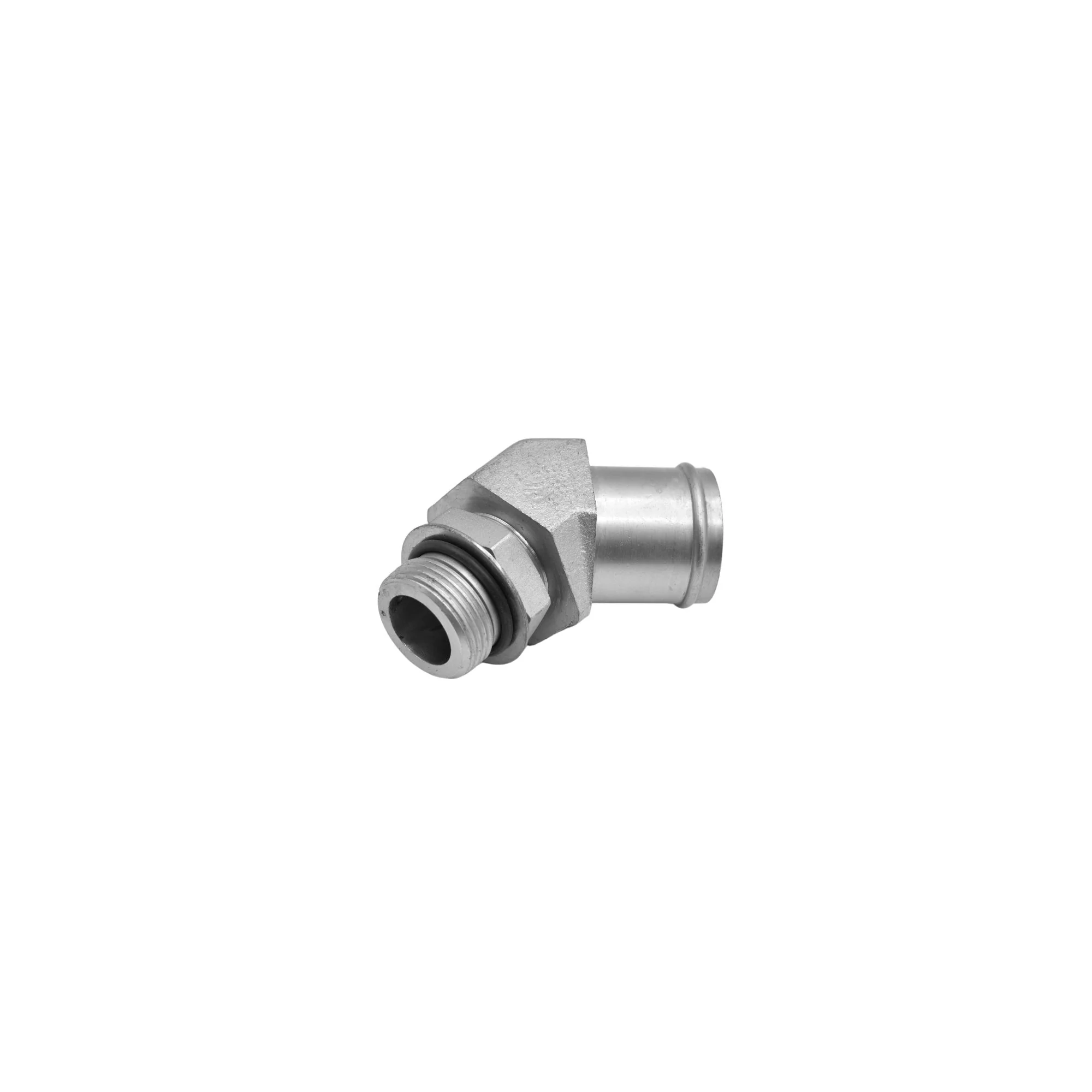

Hydraulics | 24HB-16MAORB 45deg Elb Forg | 4603-24-16-NWO-FG
| THREAD B1 TYPE | HOSE BARB |
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1.343 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.312 |
| OVERALL LENGTH L IN | 1.988 |
| OVERALL LENGTH L2 IN | 1.909 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$10.57
Original: $30.20
-65%Hydraulics | 24HB-16MAORB 45deg Elb Forg | 4603-24-16-NWO-FG—
$30.20
$10.57Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | HOSE BARB |
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1.343 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.312 |
| OVERALL LENGTH L IN | 1.988 |
| OVERALL LENGTH L2 IN | 1.909 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
