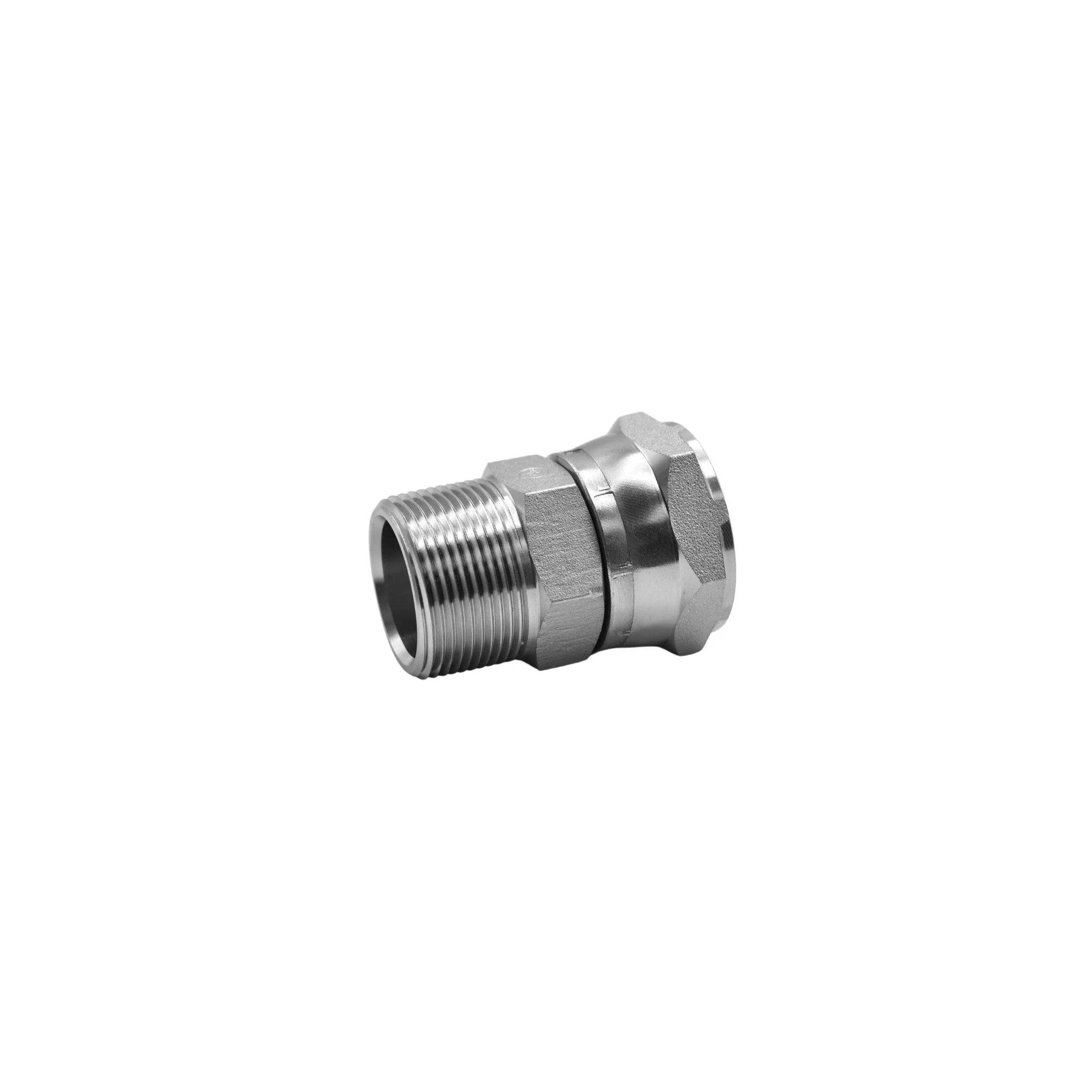

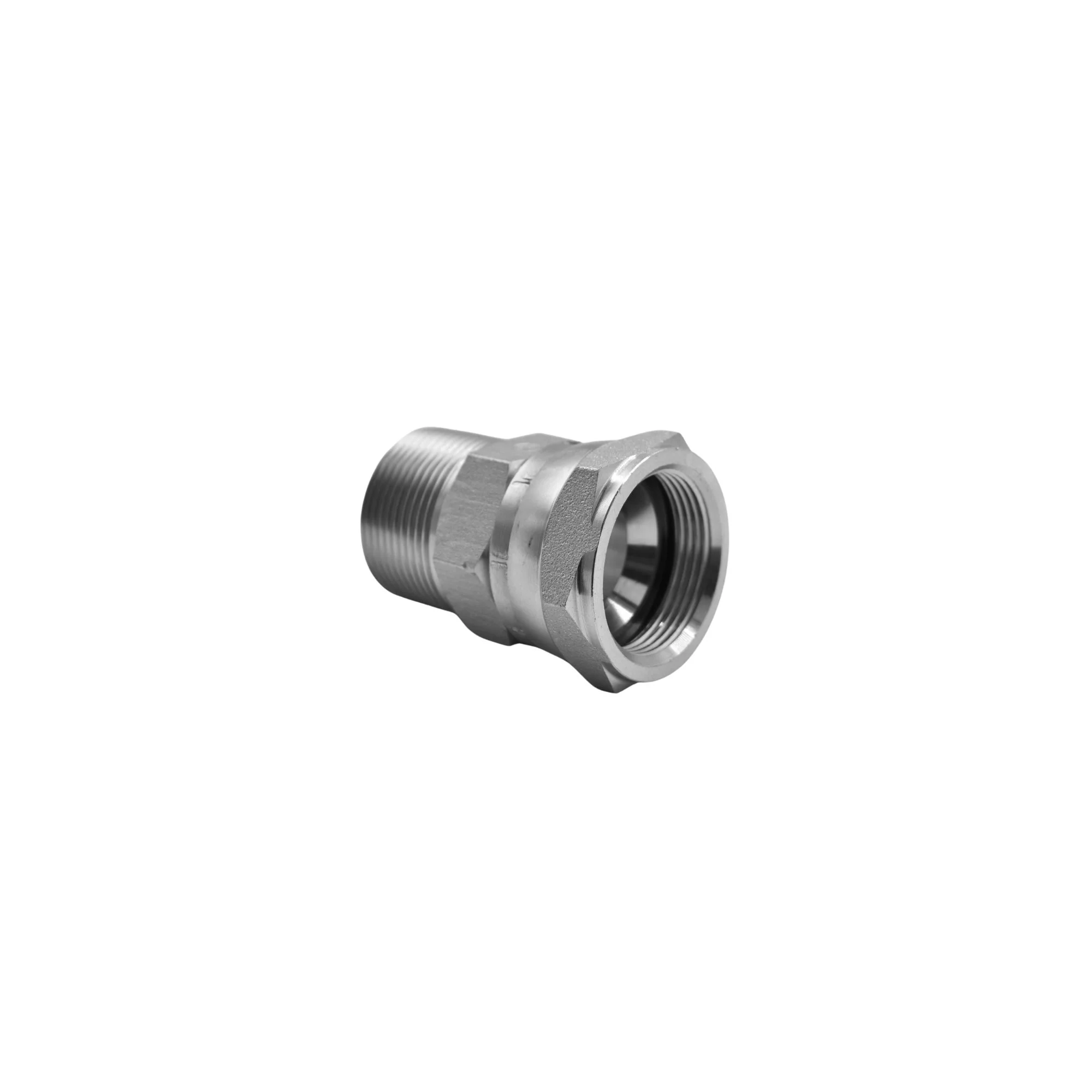

Hydraulics | 20MP-20FJS Straight | 6505-20-20
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 2.850 |
| OVERALL LENGTH L2 IN | 2.210 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$11.48
Original: $32.81
-65%Hydraulics | 20MP-20FJS Straight | 6505-20-20—
$32.81
$11.48Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 2.850 |
| OVERALL LENGTH L2 IN | 2.210 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
