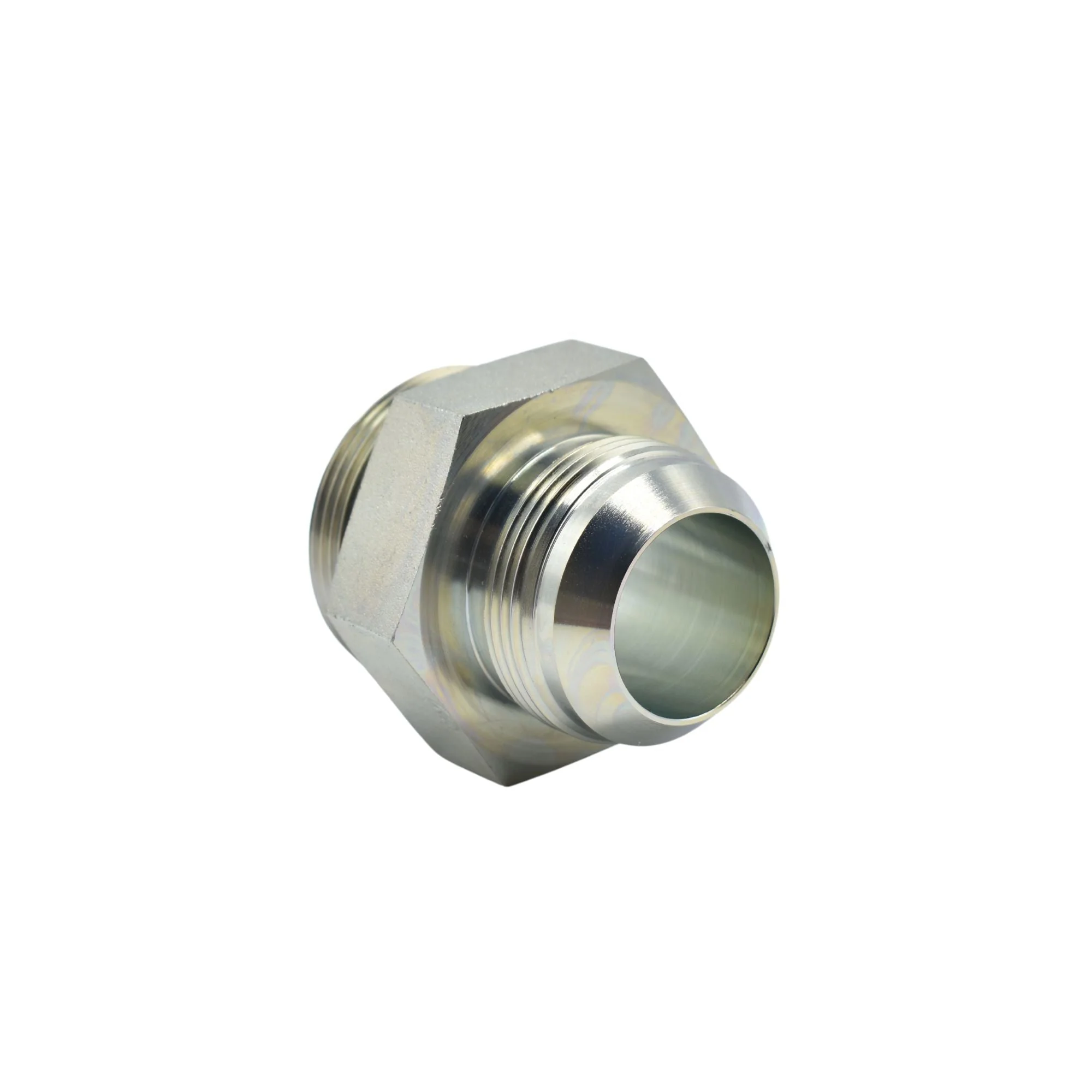

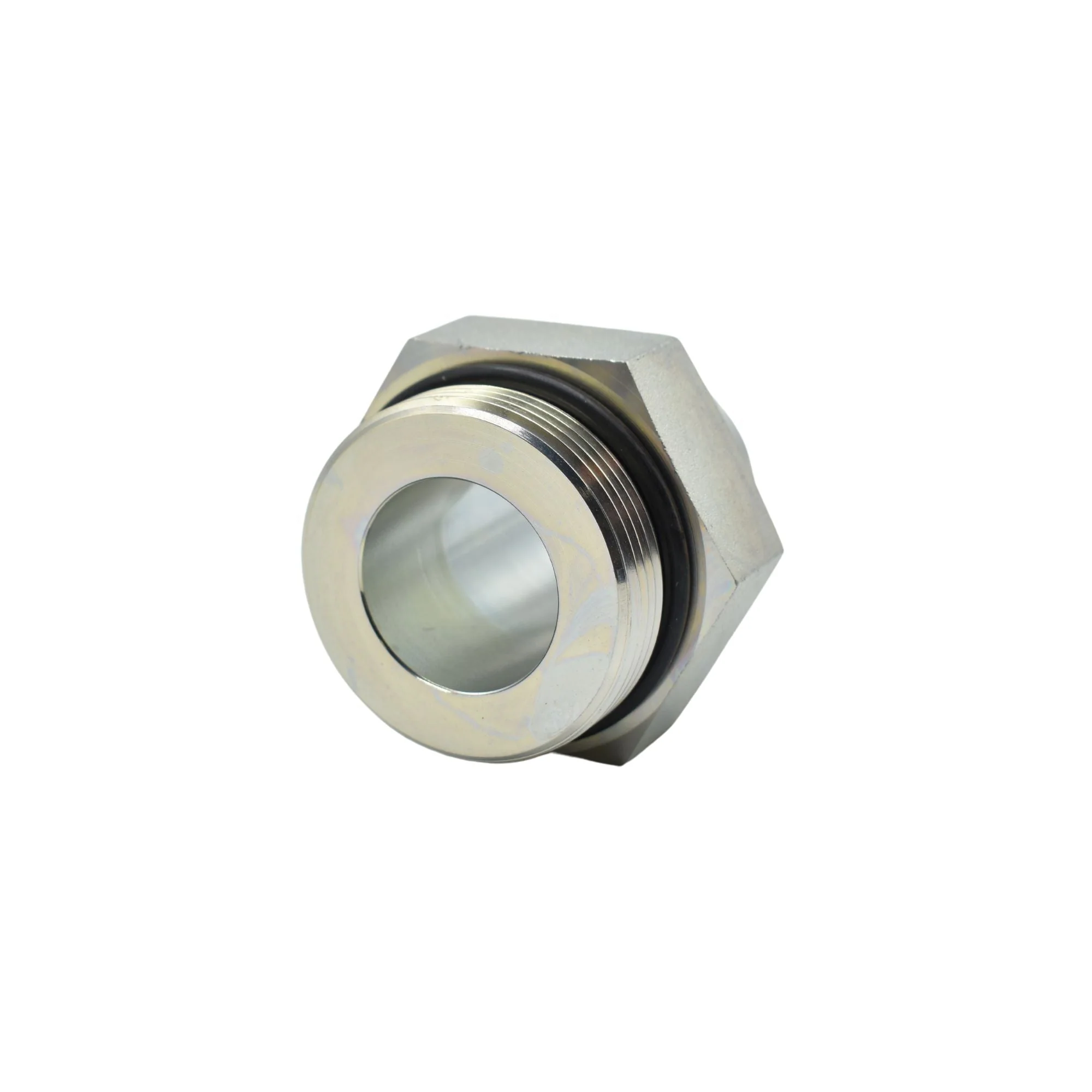

Hydraulics | 20MJ-24MORB Straight Adapter | 6400-20-24-O

Hydraulics | 20MJ-24MORB Straight Adapter | 6400-20-24-O

THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1-5/8-12
THREAD B1 DRILL IN 1.078
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE SAE O-RING BOSS
THREAD B2 SIZE 1-7/8-12
THREAD B2 DRILL IN 1.312
THREAD B2 SPECIFICATION SAE J514
BODY HEX IN 2.125
OVERALL LENGTH L IN 2.240
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT LBS 0.974
MAXIMUM DYNAMIC PRESSURE PSI 3,000
CALIFORNIA RESIDENTS PROP-65 WARNING
CUBIC INCH SPACE L X W X H 10.115
$11.65

Original: $33.30

-65%
Hydraulics | 20MJ-24MORB Straight Adapter | 6400-20-24-O—

$33.30

$11.65

Product Information

Shipping & Returns

Description

THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1-5/8-12
THREAD B1 DRILL IN 1.078
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE SAE O-RING BOSS
THREAD B2 SIZE 1-7/8-12
THREAD B2 DRILL IN 1.312
THREAD B2 SPECIFICATION SAE J514
BODY HEX IN 2.125
OVERALL LENGTH L IN 2.240
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
O-RING / SEAL MATERIAL NBR
WEIGHT LBS 0.974
MAXIMUM DYNAMIC PRESSURE PSI 3,000
CALIFORNIA RESIDENTS PROP-65 WARNING
CUBIC INCH SPACE L X W X H 10.115
