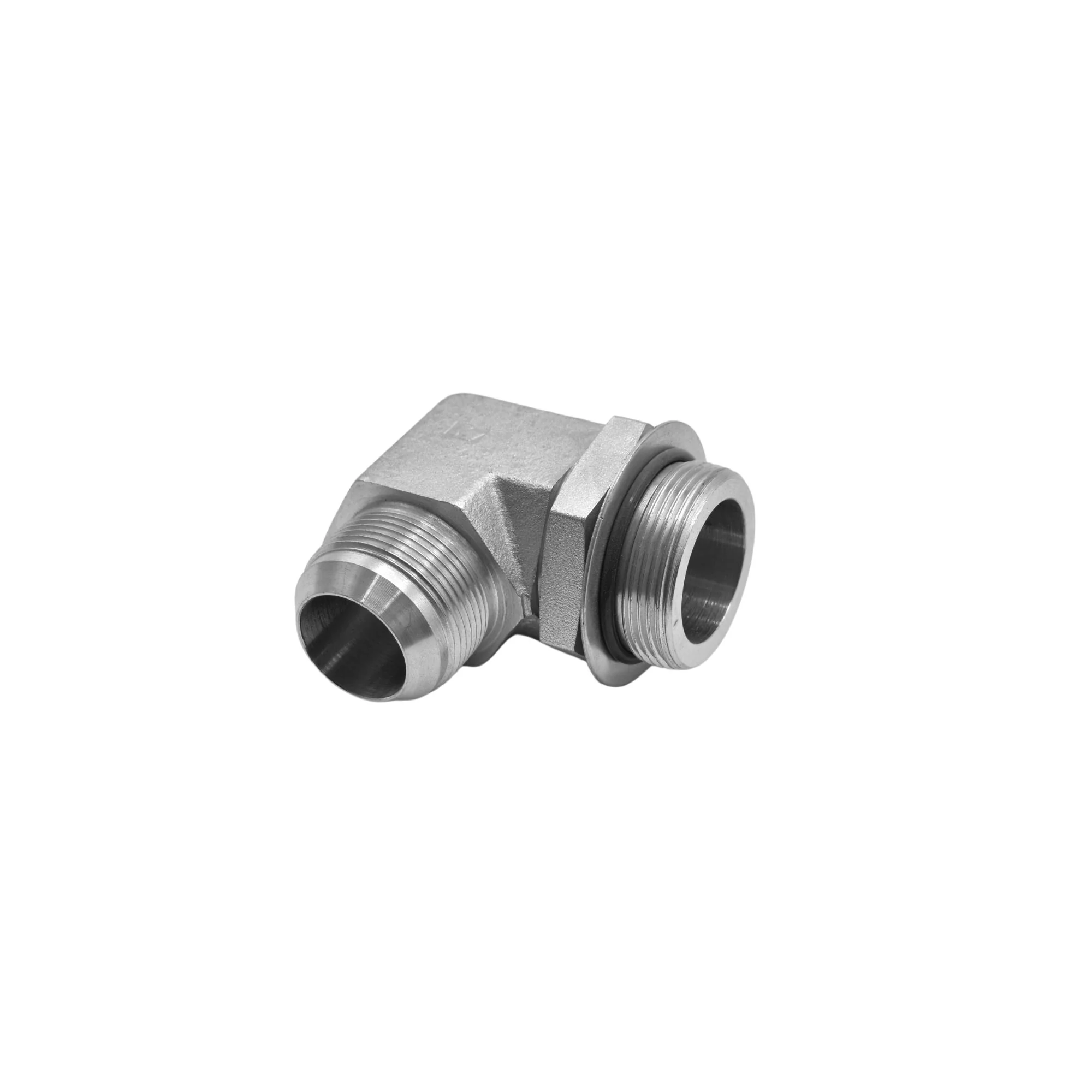

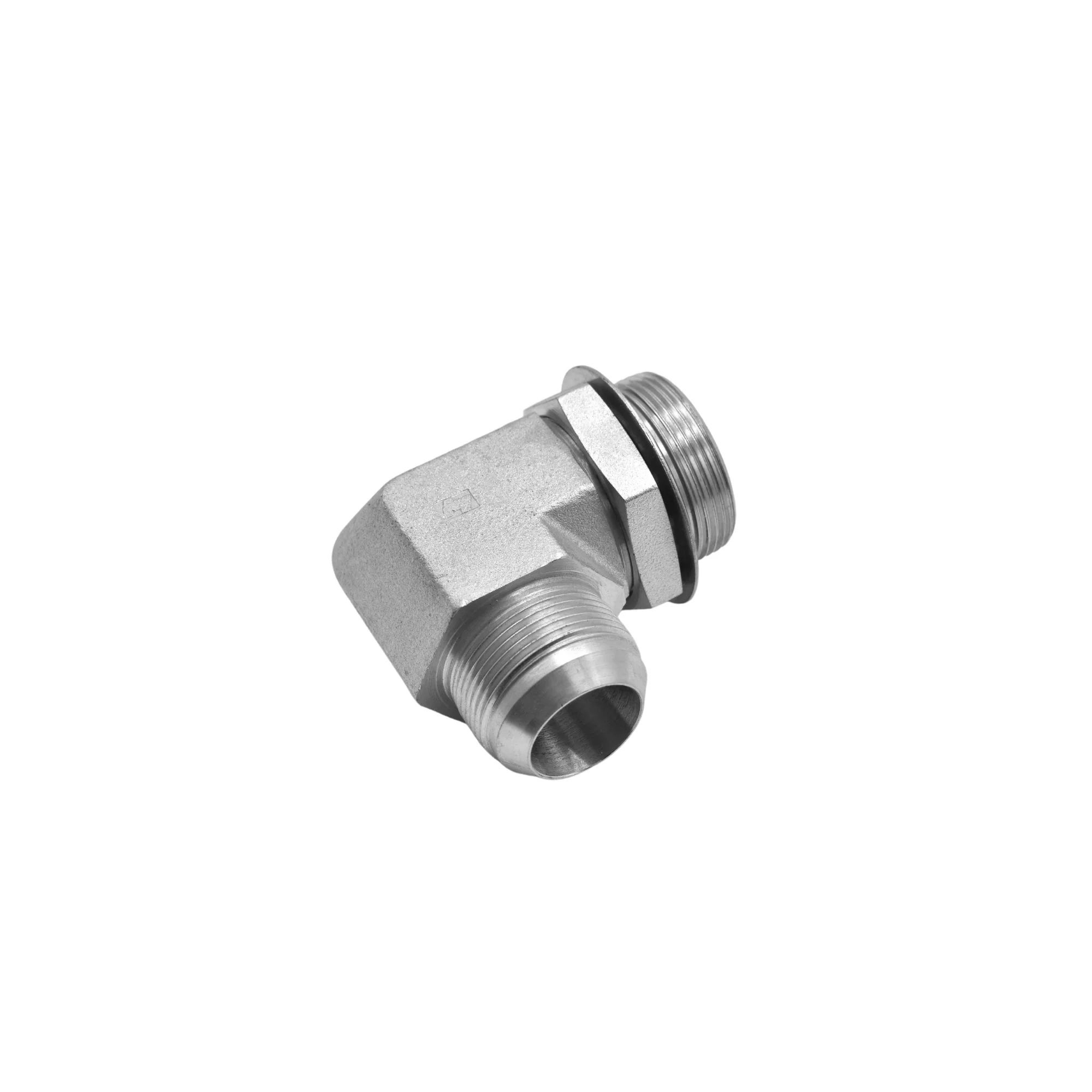

Hydraulics | 20MJ-24MAORB 90deg Elb Forg | 6801-20-24-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 2.390 |
| CENTERLINE LENGTH M IN | 2.200 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 2.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 23.069 |
$25.35
Original: $72.43
-65%Hydraulics | 20MJ-24MAORB 90deg Elb Forg | 6801-20-24-NWO-FG—
$72.43
$25.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 2.390 |
| CENTERLINE LENGTH M IN | 2.200 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 2.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 23.069 |
