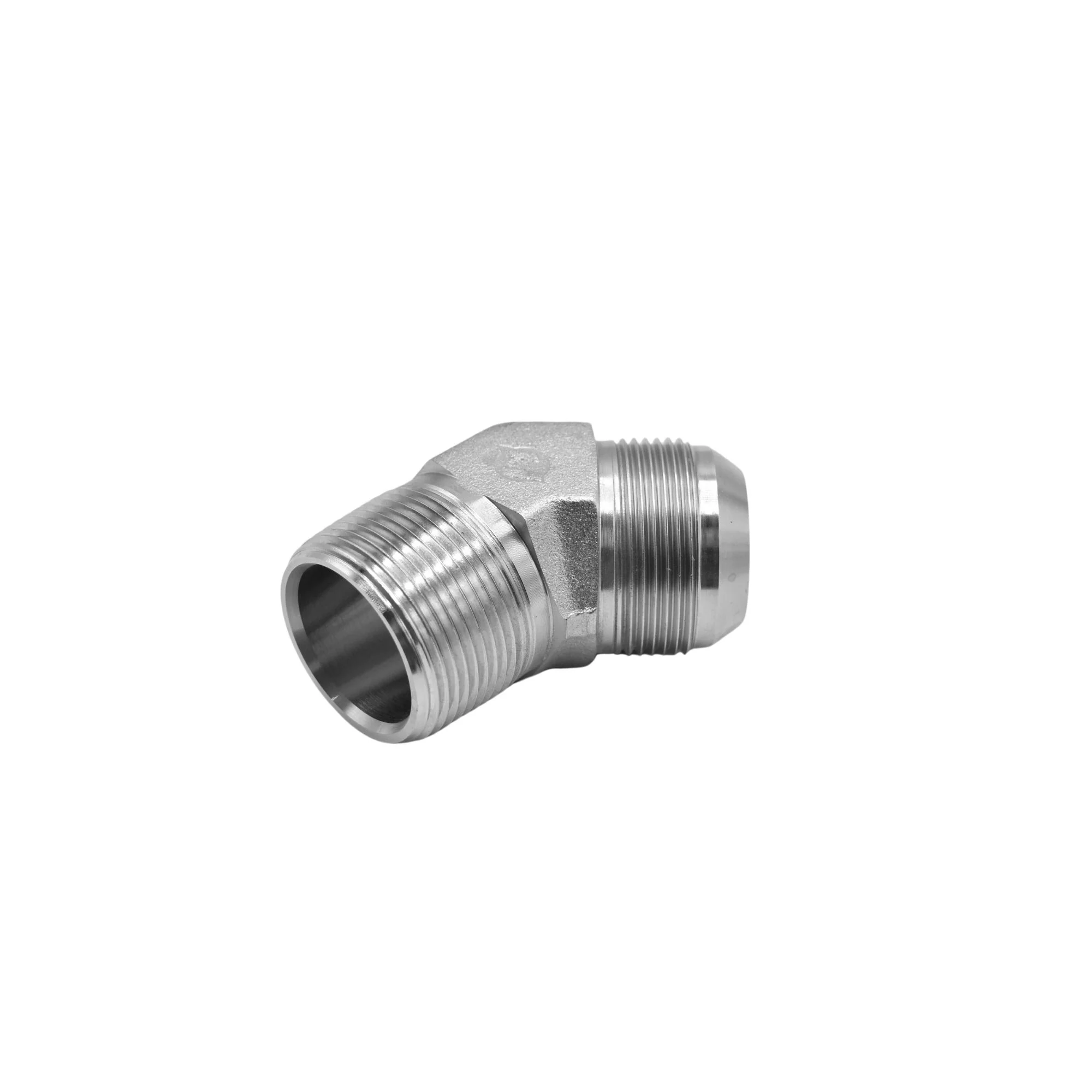

Hydraulics | 20MJ-20MP 45deg Elb Forg | 2503-20-20-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 1.670 |
| CENTERLINE LENGTH M IN | 1.590 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.8687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 13.151 |
$7.07
Original: $20.21
-65%Hydraulics | 20MJ-20MP 45deg Elb Forg | 2503-20-20-FG—
$20.21
$7.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 1.670 |
| CENTERLINE LENGTH M IN | 1.590 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.8687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 13.151 |
