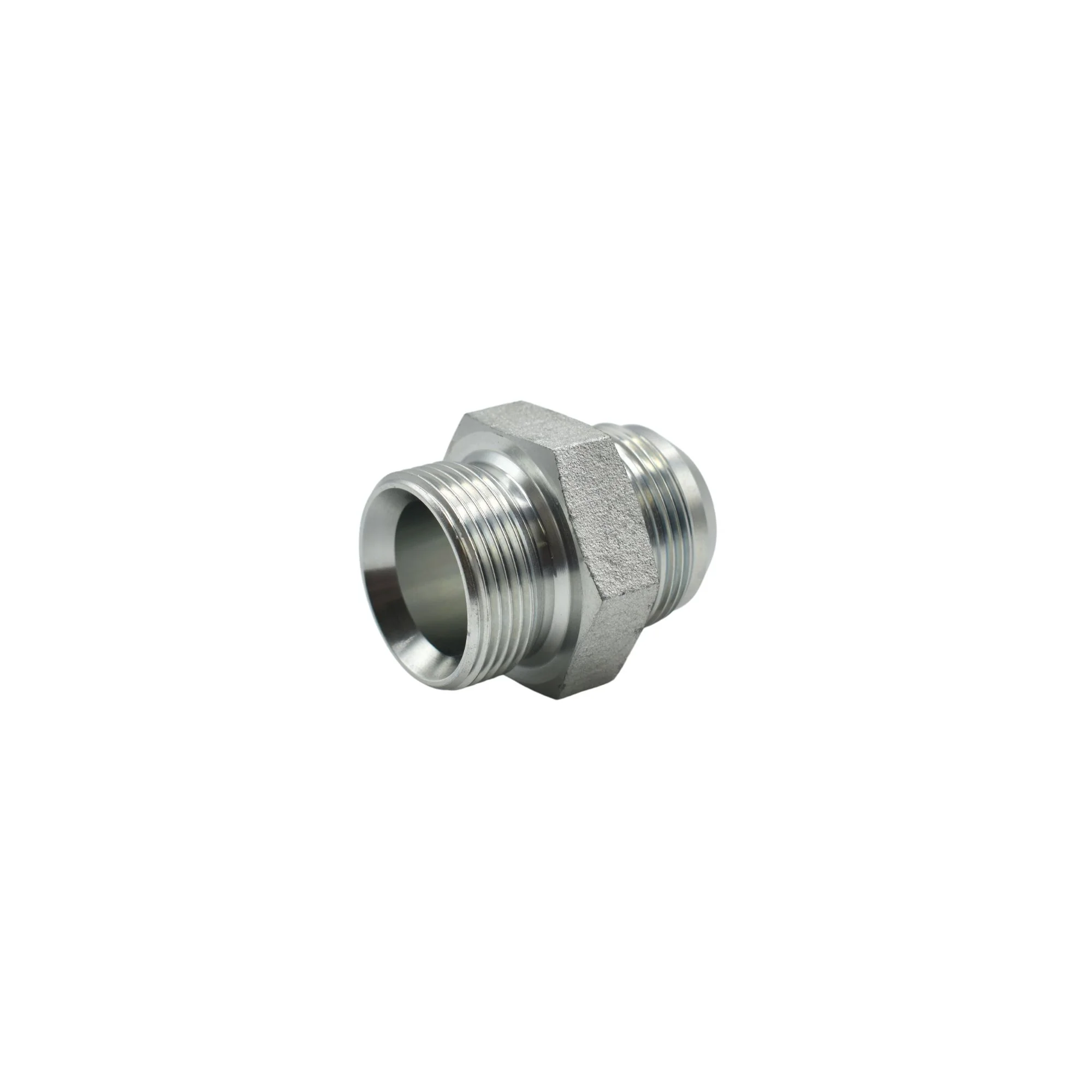

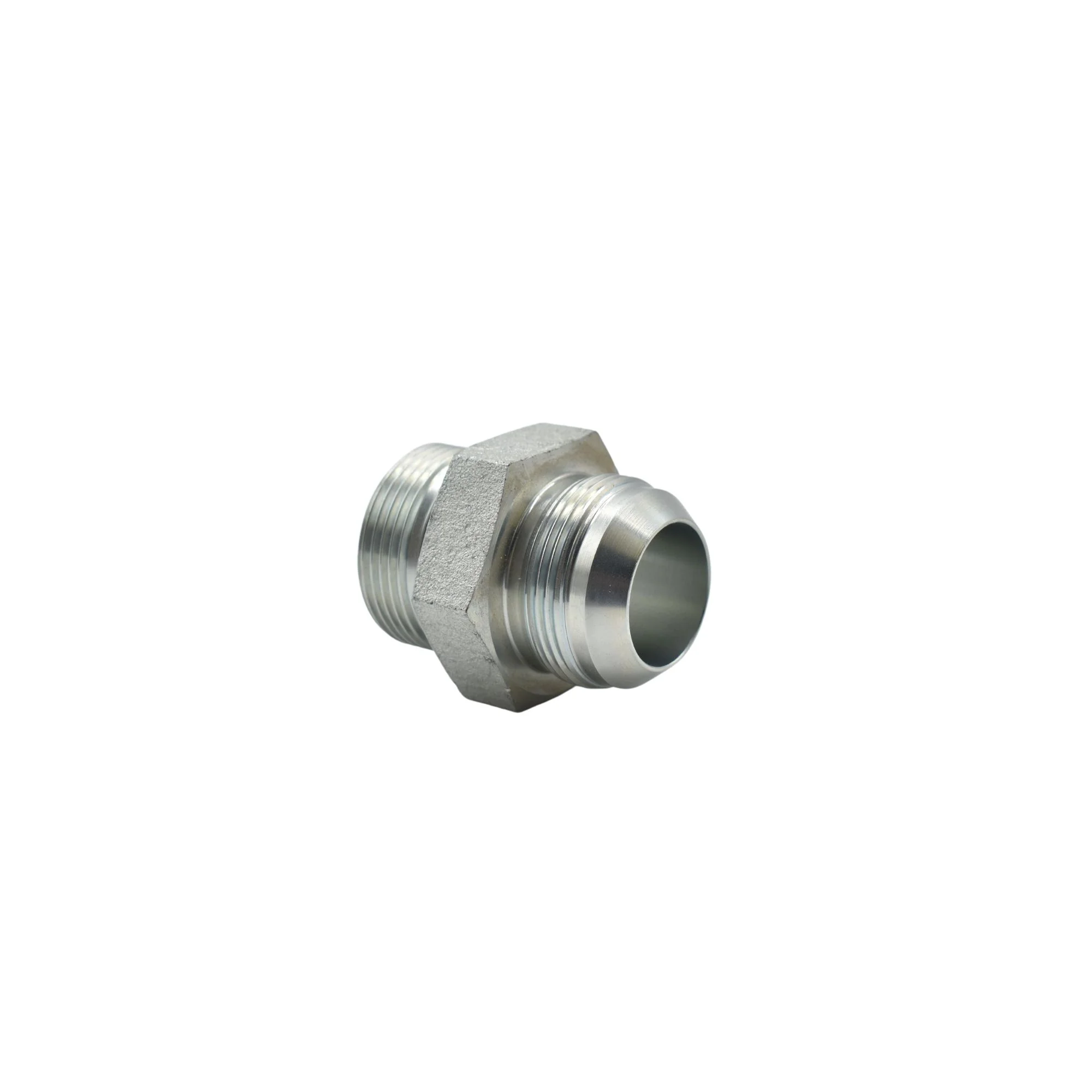

Hydraulics | 20MJ-20MBSPP Straight | 7002-20-20
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.38 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 50.0 |
| OVERALL LENGTH L (MM) | 60.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.713 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.276 |
$12.17
Original: $34.78
-65%Hydraulics | 20MJ-20MBSPP Straight | 7002-20-20—
$34.78
$12.17Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.38 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPP WITH 60 DEGREE SEAT |
| THREAD SIZE B2 | 1-1/4-11 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | 60 DEG SEAT SWIVEL CONNECTION |
| BODY HEX (MM) | 50.0 |
| OVERALL LENGTH L (MM) | 60.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.713 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 1,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 9.276 |
