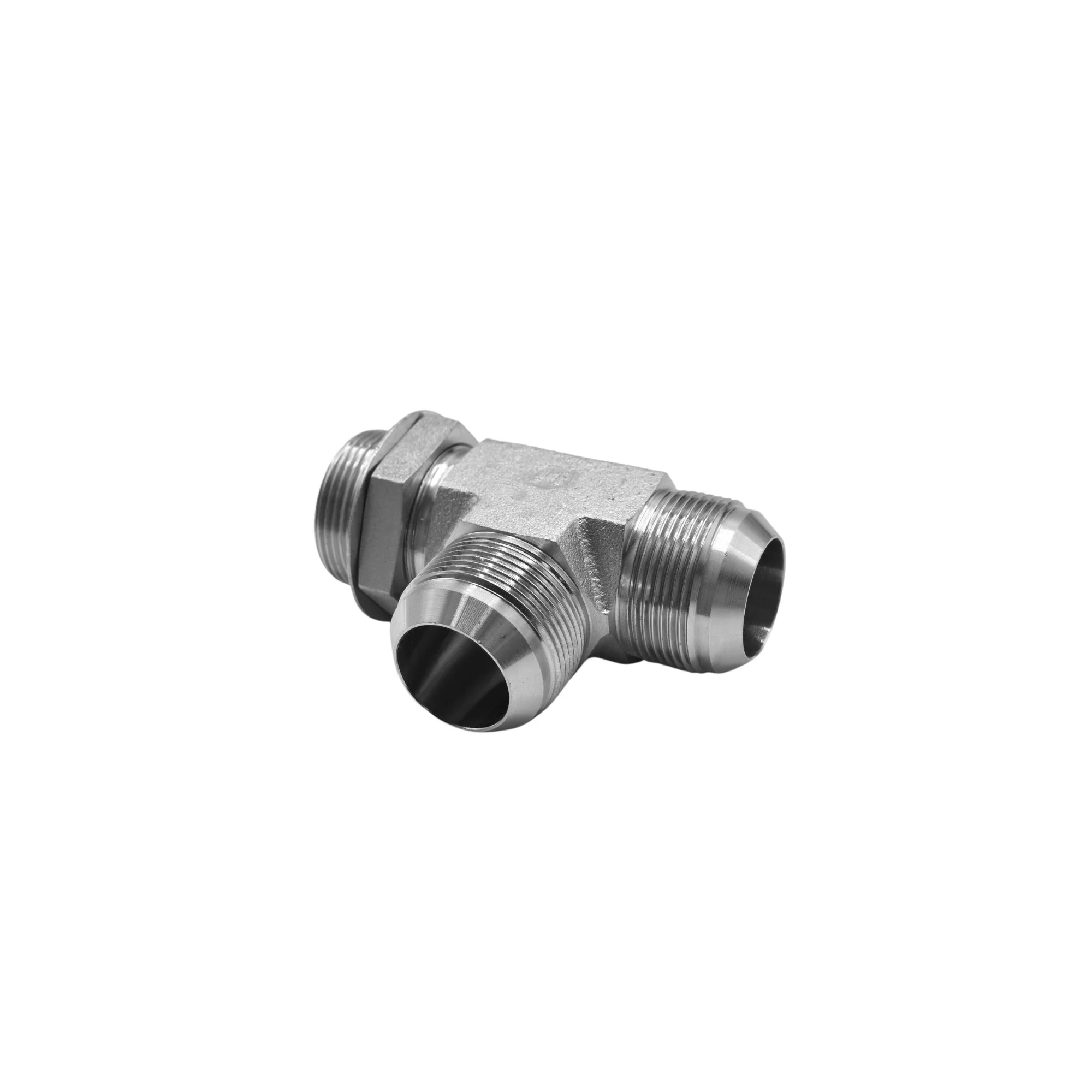

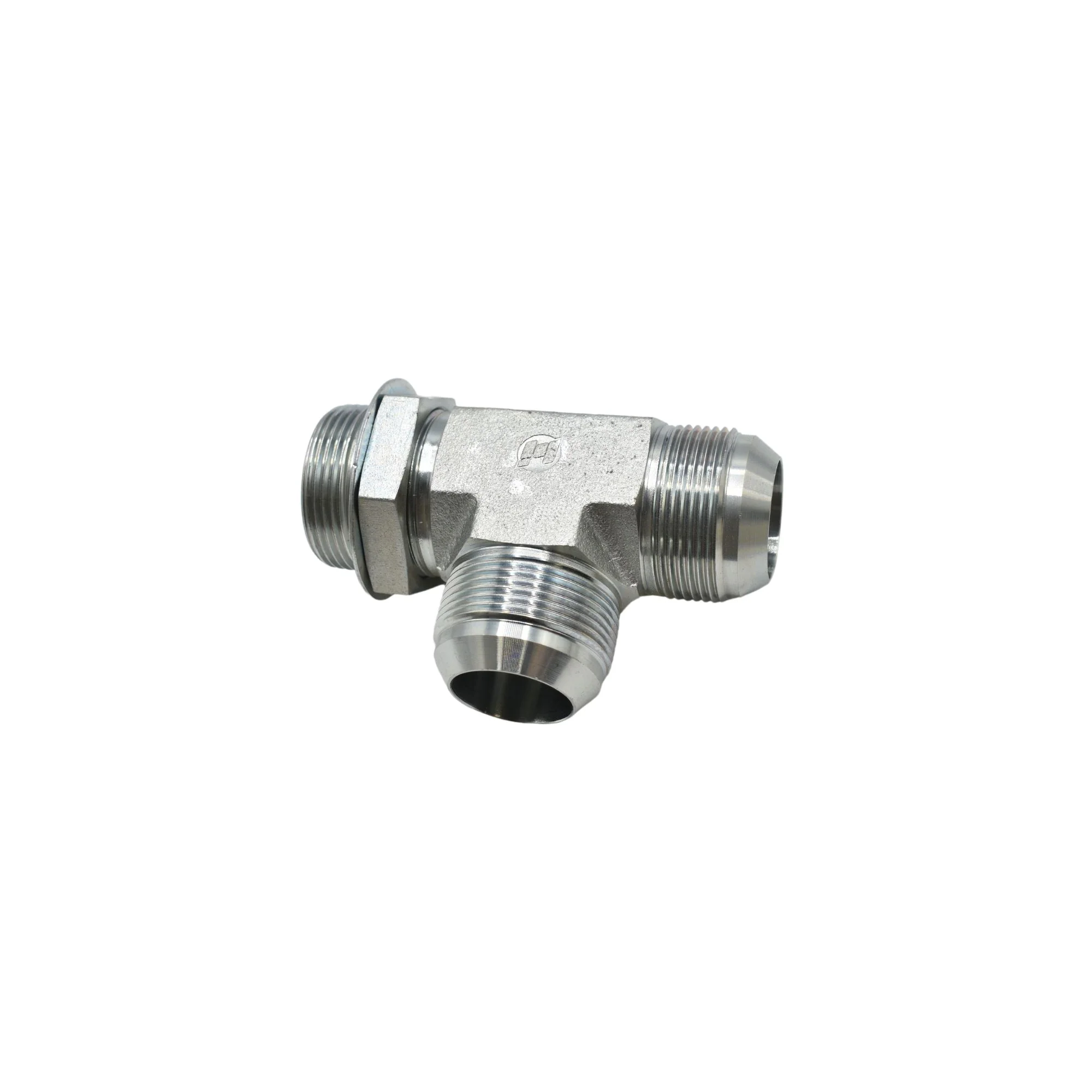

Hydraulics | 20MJ-20MAORB-20MJ Run Tee Forg | 6804-20-20-20-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1 5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1 5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1 5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.060 |
| CENTERLINE LENGTH M IN | 2.060 |
| CENTERLINE LENGTH M2 IN | 2.250 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 2 |
| CALIFORNIA RESIDENTS |
PROP-65 WARNING |
$16.62
Original: $47.50
-65%Hydraulics | 20MJ-20MAORB-20MJ Run Tee Forg | 6804-20-20-20-NWO-FG—
$47.50
$16.62Product Information
