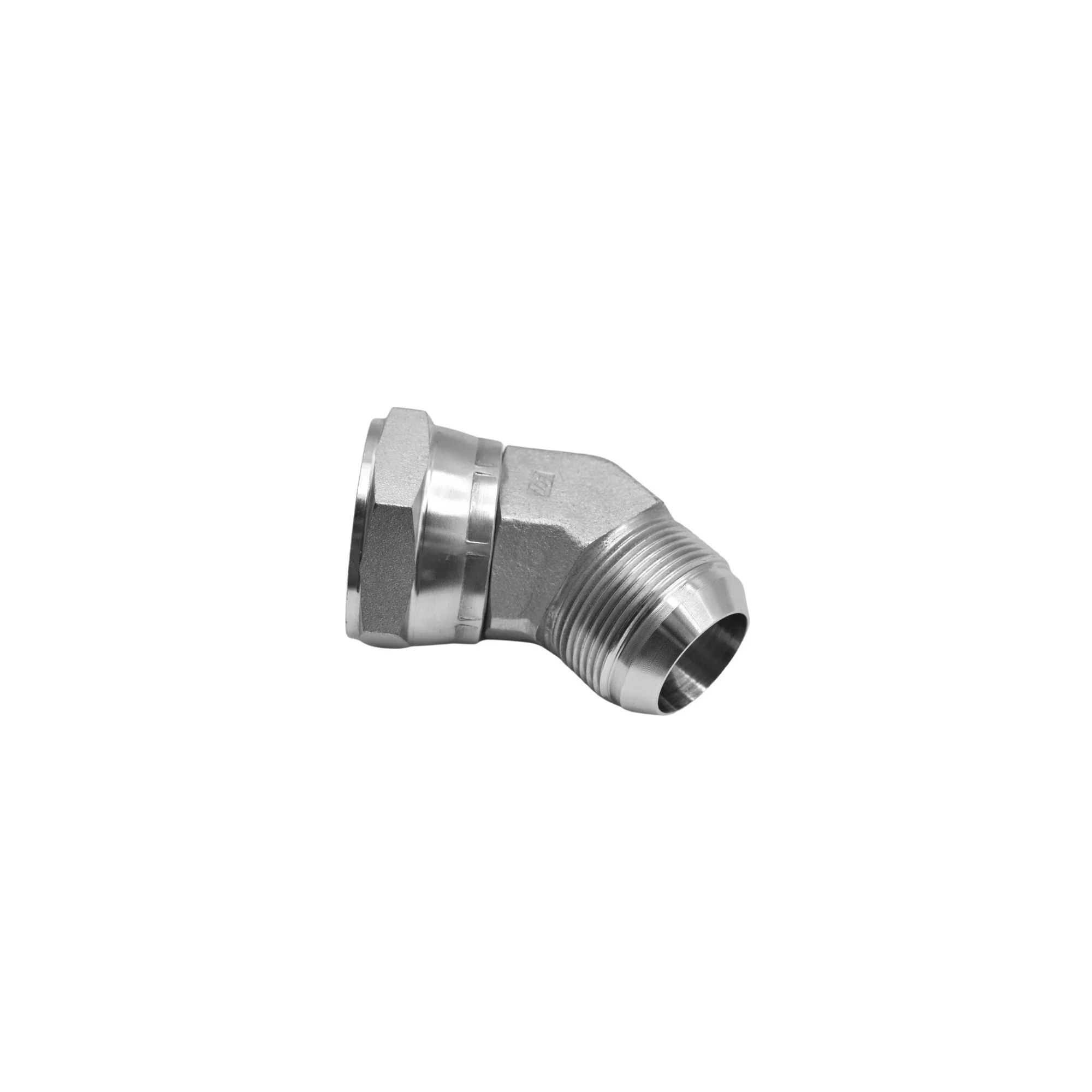

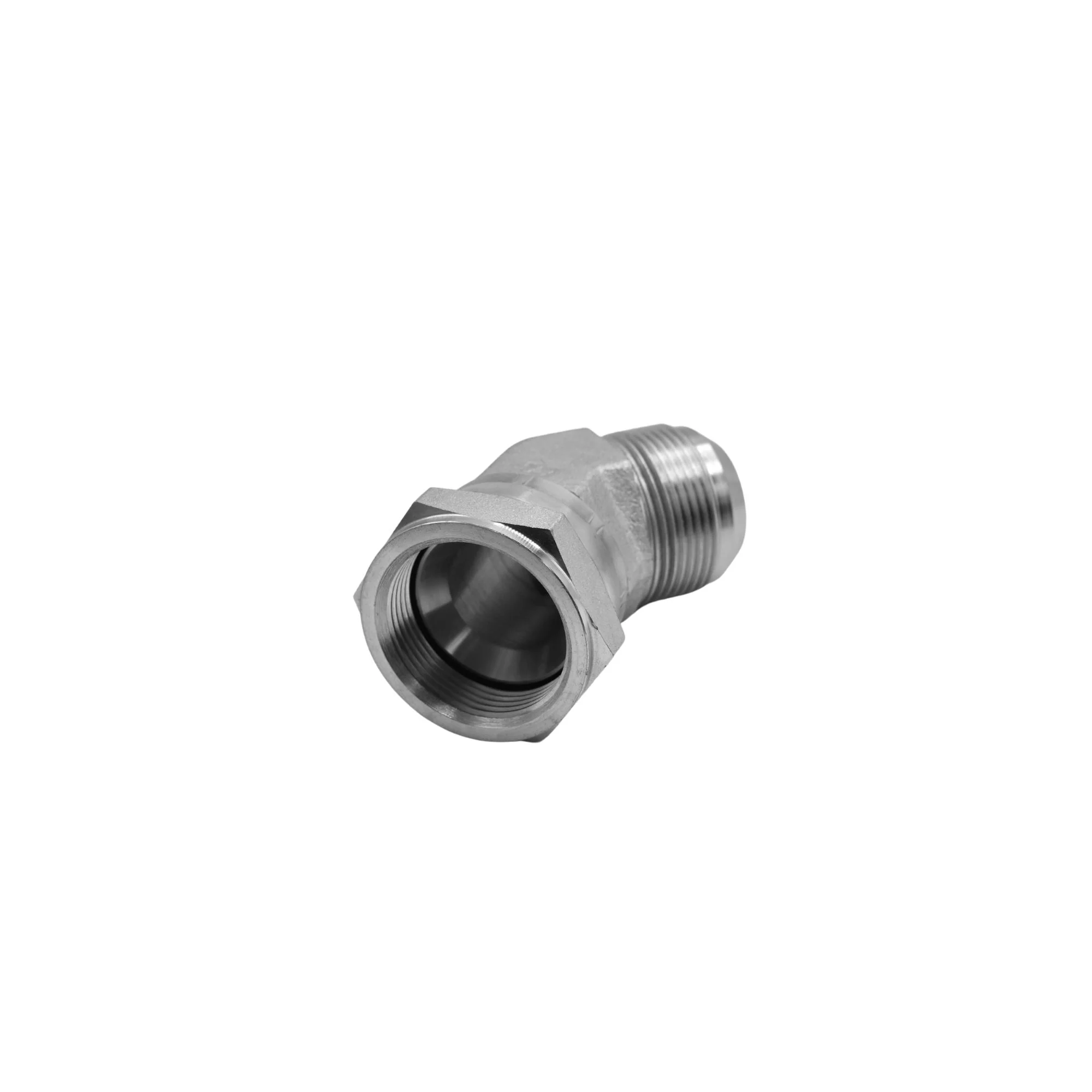

Hydraulics | 20MJ-20FJS 45deg Elb Forg | 6502-20-20-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 2.030 |
| CENTERLINE LENGTH M IN | 1.590 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.2485 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$15.99
Original: $45.70
-65%Hydraulics | 20MJ-20FJS 45deg Elb Forg | 6502-20-20-FG—
$45.70
$15.99Product Information
