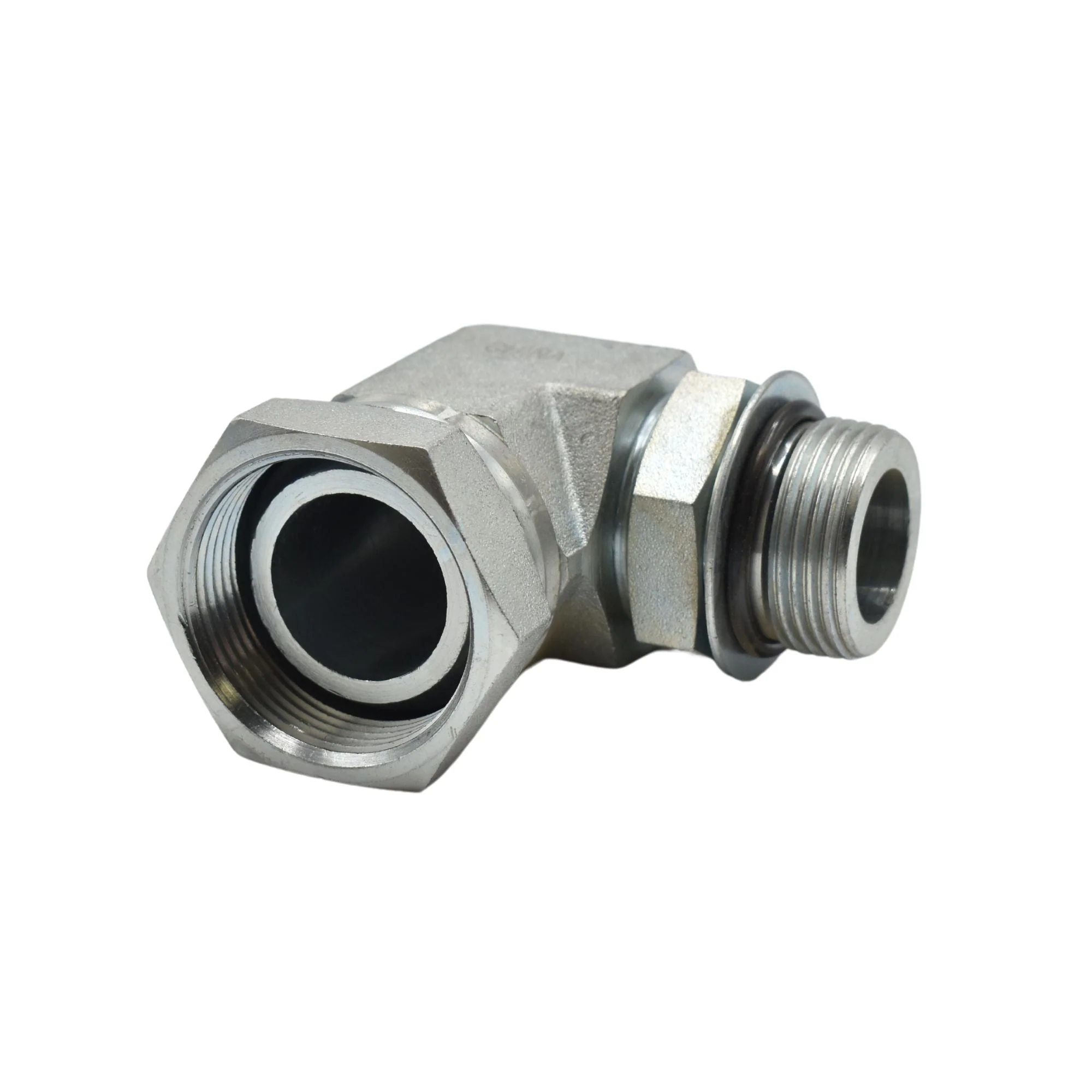

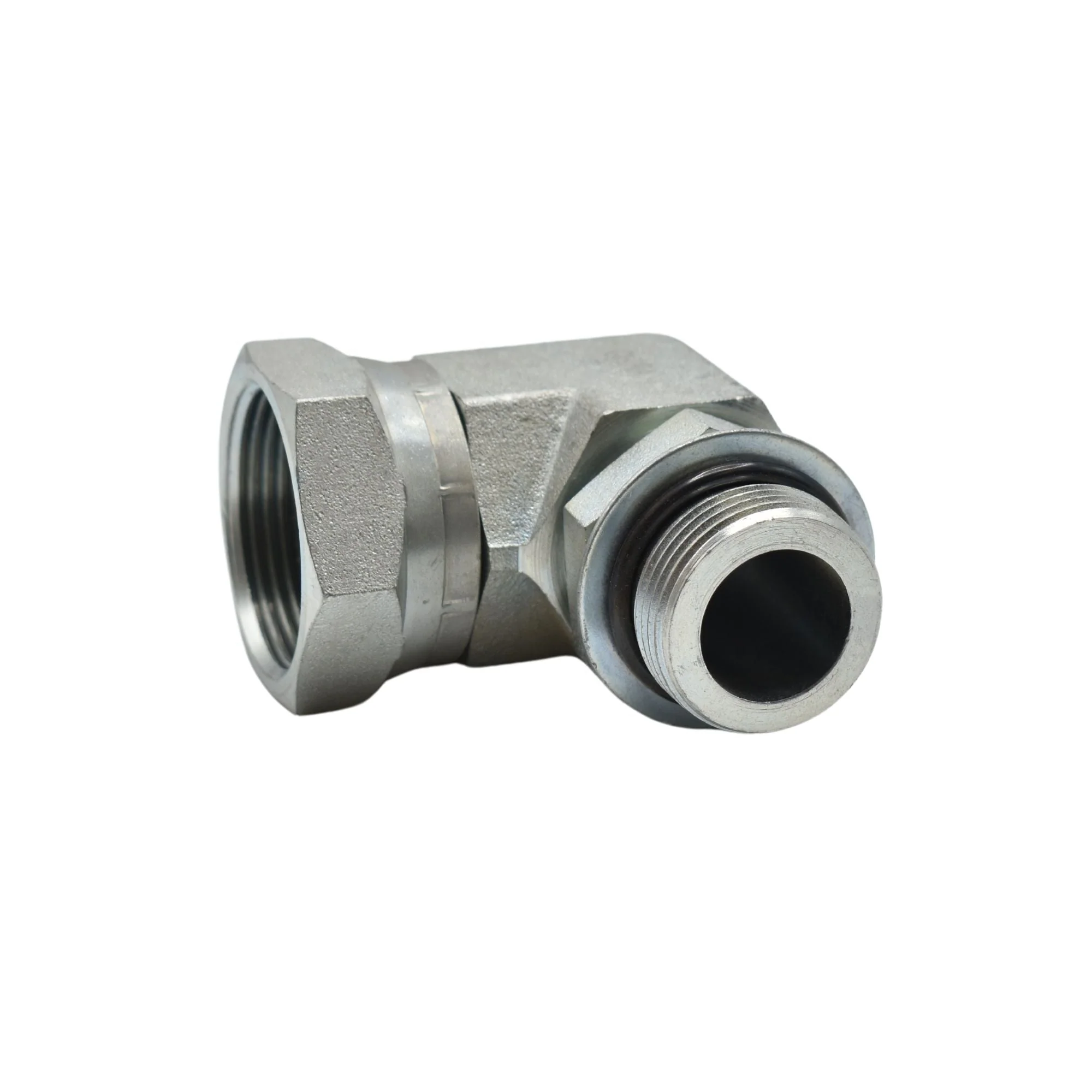

Hydraulics | 20MAORB-20FPS 90deg Elb Forg Adapter | 6901-20-20-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.01/1.16 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| C HEX 2 IN | 1.875 |
| OVERALL LENGTH L IN | 2.150 |
| OVERALL LENGTH L2 IN | 1.730 |
| CENTERLINE LENGTH M IN | 2.250 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.762 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$16.47
Original: $47.07
-65%Hydraulics | 20MAORB-20FPS 90deg Elb Forg Adapter | 6901-20-20-NWO-FG—
$47.07
$16.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.01/1.16 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| C HEX 2 IN | 1.875 |
| OVERALL LENGTH L IN | 2.150 |
| OVERALL LENGTH L2 IN | 1.730 |
| CENTERLINE LENGTH M IN | 2.250 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.762 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
