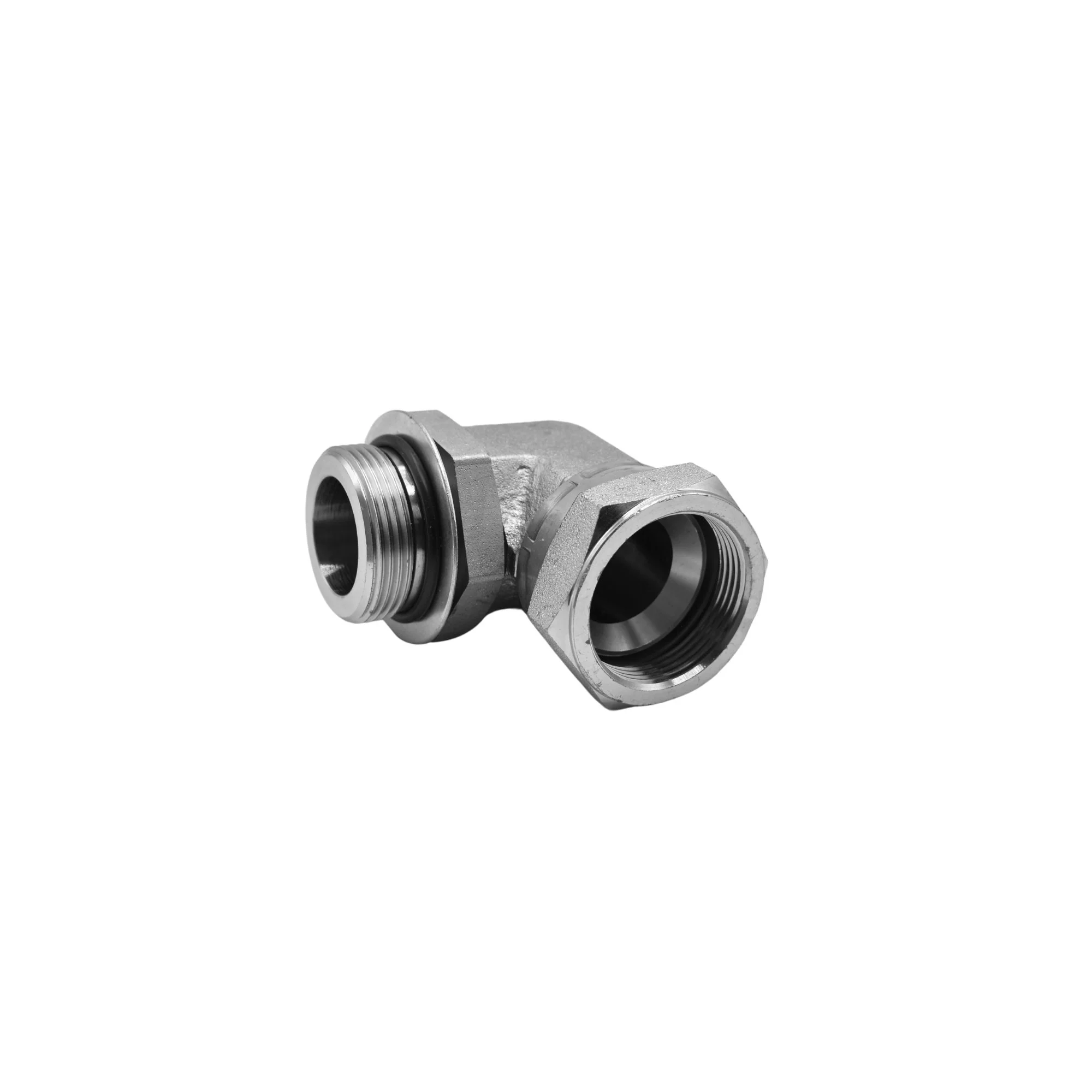

Hydraulics | 20MAORB-20FJS 90deg Elb Forg | 6809-20-20-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| C HEX 2 IN | 2.000 |
| OVERALL LENGTH L IN | 2.310 |
| OVERALL LENGTH L2 IN | 1.680 |
| CENTERLINE LENGTH M IN | 2.250 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.775 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$57.94
Hydraulics | 20MAORB-20FJS 90deg Elb Forg | 6809-20-20-NWO-FG—
$57.94
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| C HEX 2 IN | 2.000 |
| OVERALL LENGTH L IN | 2.310 |
| OVERALL LENGTH L2 IN | 1.680 |
| CENTERLINE LENGTH M IN | 2.250 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.775 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
