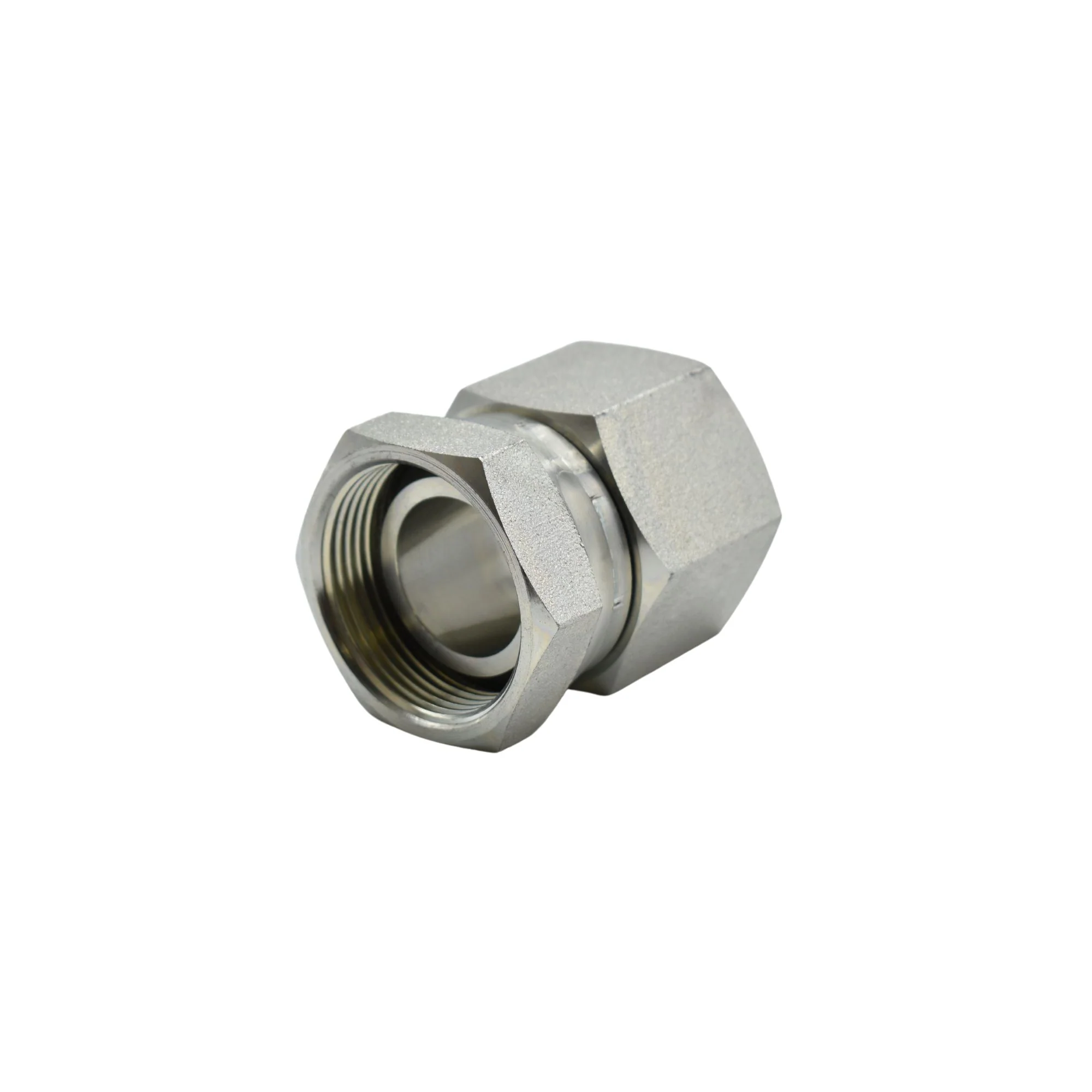

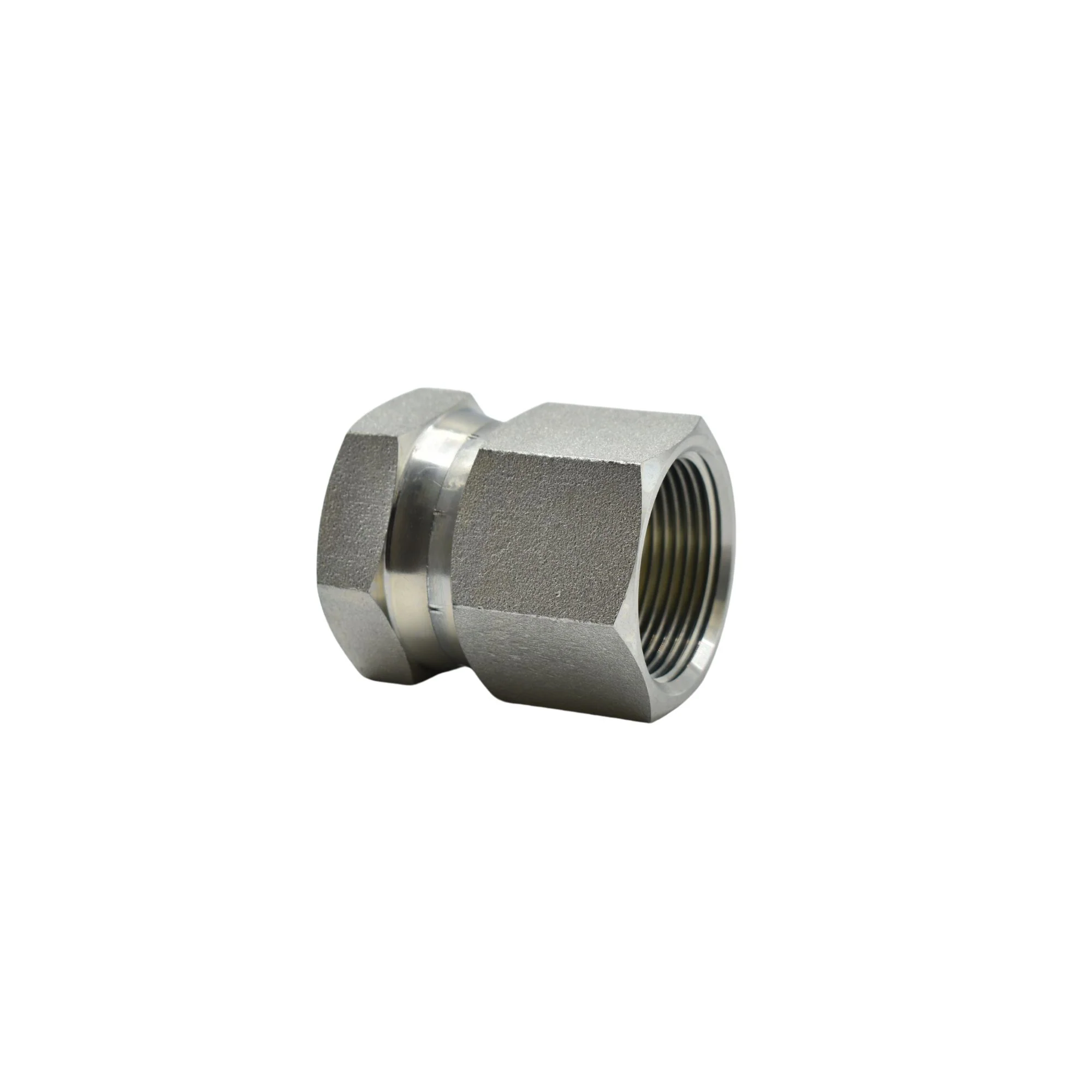

Hydraulics | 20FP-20FPS Straight | 1405-20-20
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.010 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.400 |
| OVERALL LENGTH L2 IN | 1.980 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.8667 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.438 |
$8.92
Original: $25.49
-65%Hydraulics | 20FP-20FPS Straight | 1405-20-20—
$25.49
$8.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.010 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.400 |
| OVERALL LENGTH L2 IN | 1.980 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.8667 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.438 |
