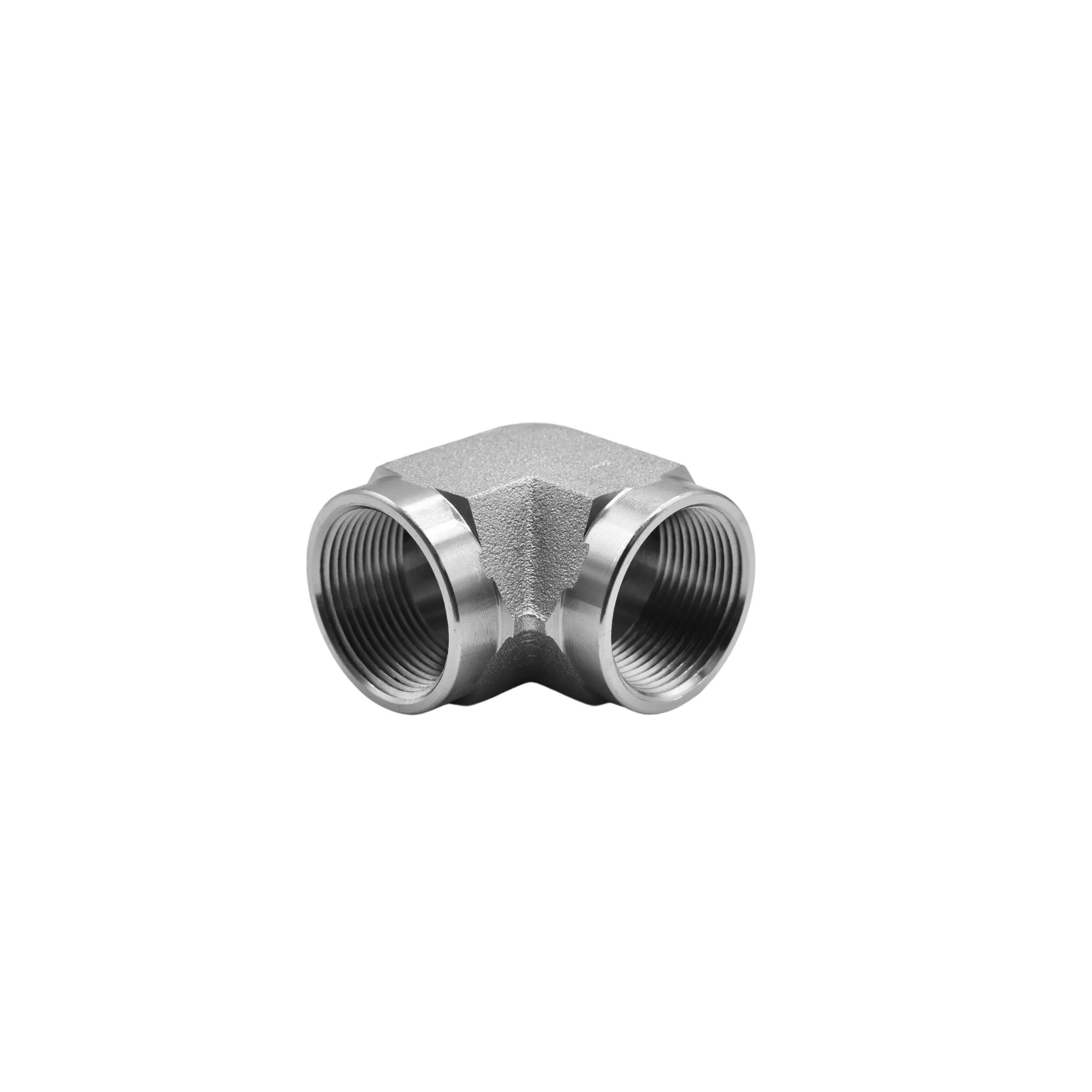

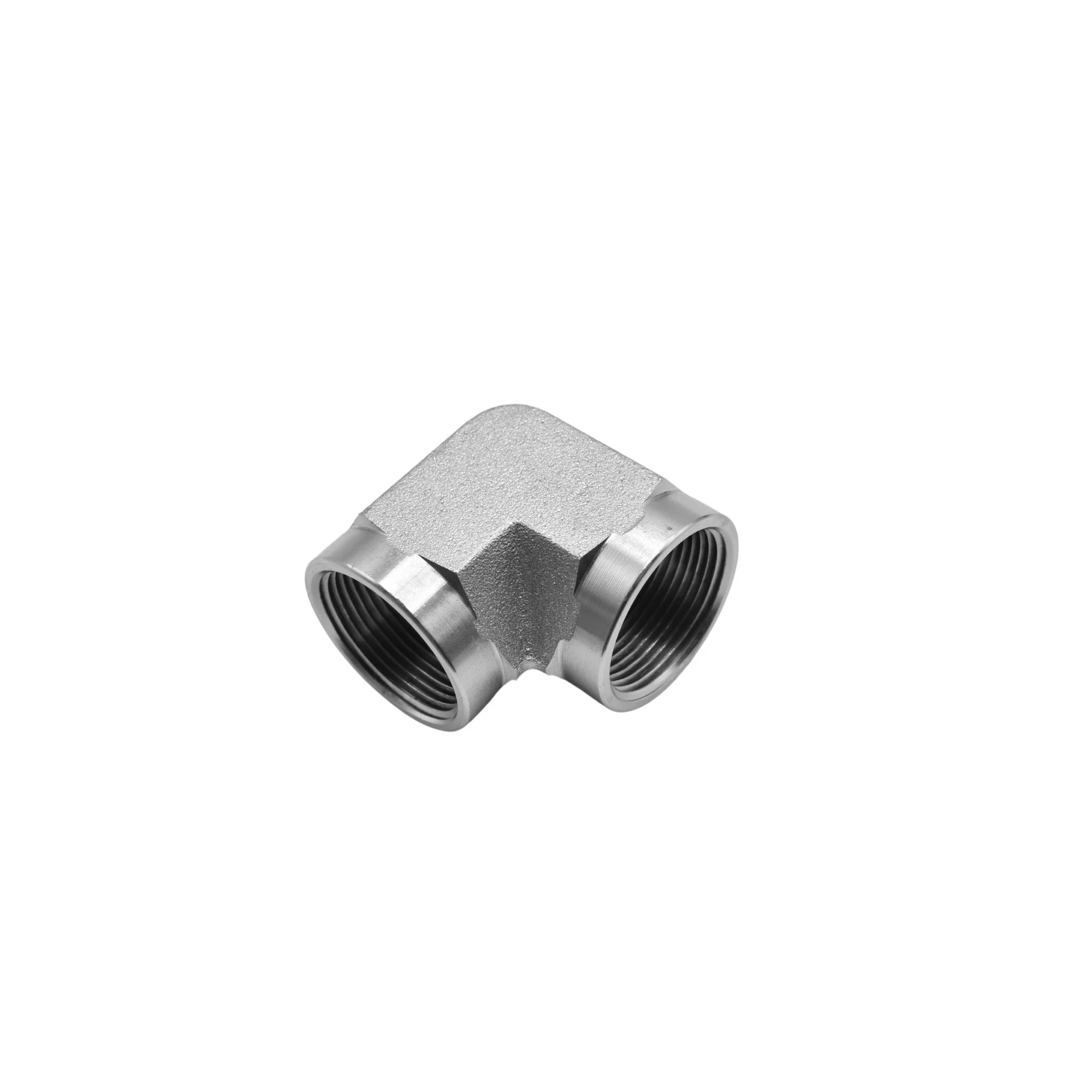

Hydraulics | 20FP-20FP 90deg Street Elb Forg | 5504-20-20-FG
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 1.700 |
| CENTERLINE LENGTH M IN | 1.700 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.3625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 13.043 |
