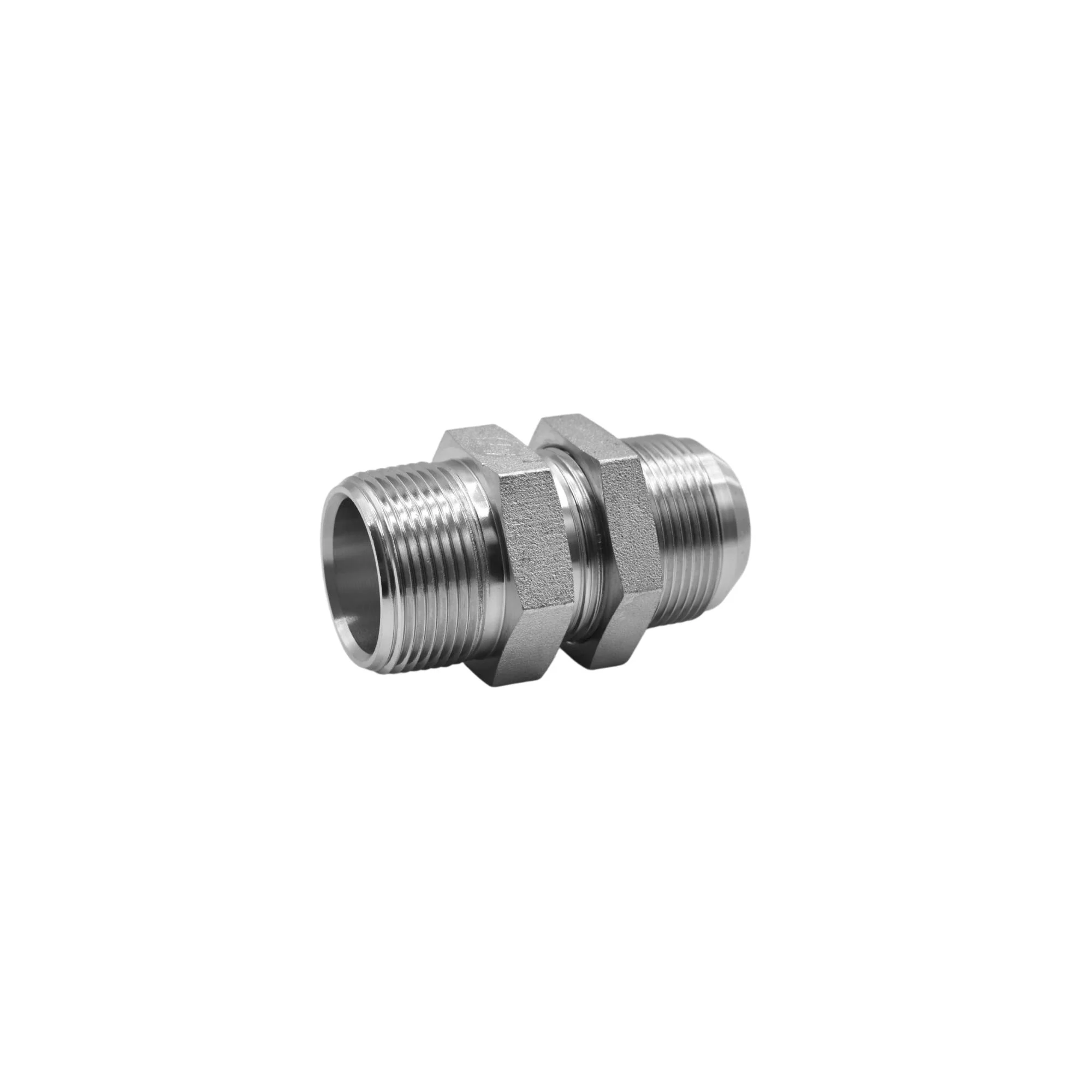

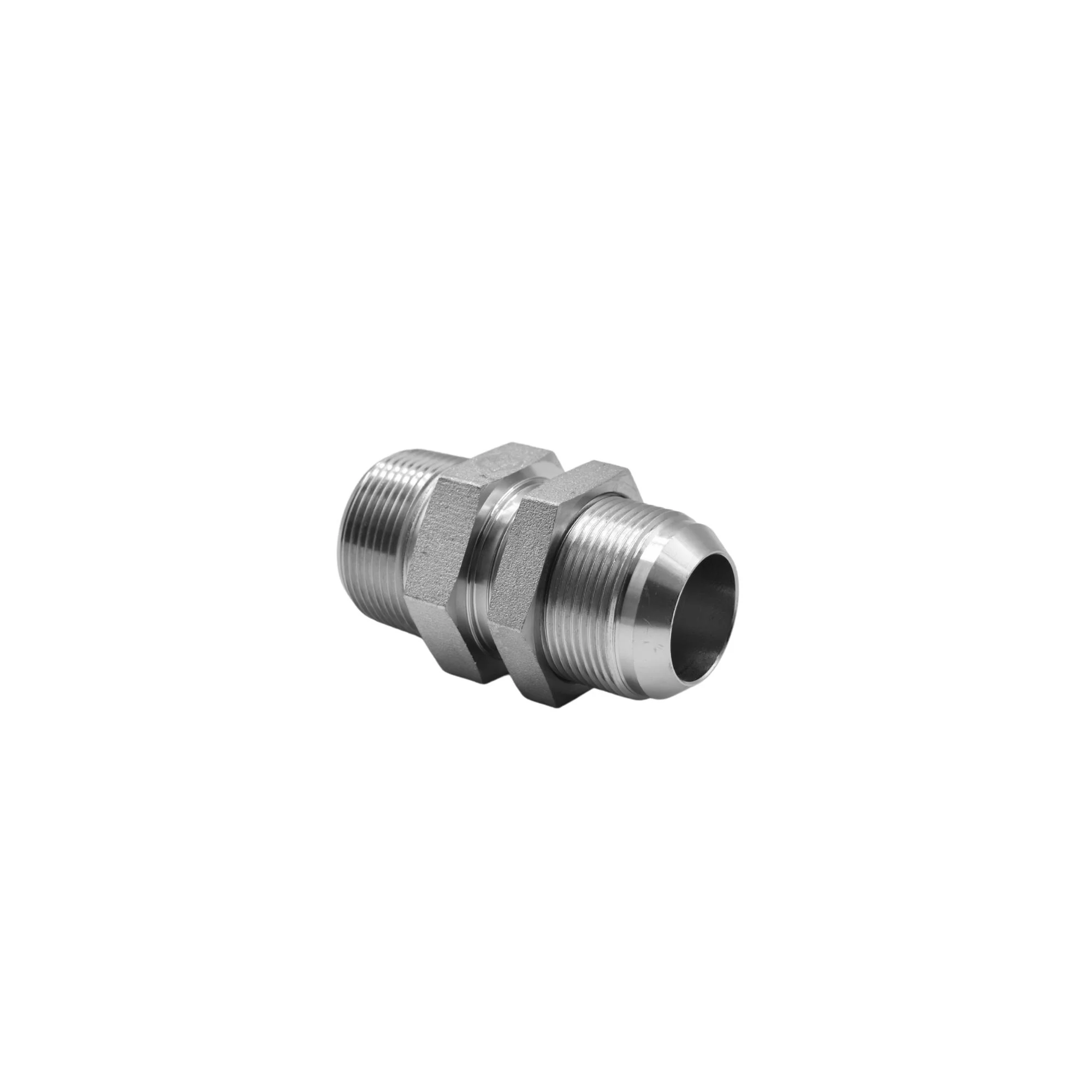

Hydraulics | -20 MJICx-20NPT Bulkhead | 2706-LN-20-20
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 3.320 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.1103 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$16.24
Original: $46.40
-65%Hydraulics | -20 MJICx-20NPT Bulkhead | 2706-LN-20-20—
$46.40
$16.24Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 3.320 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.1103 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
