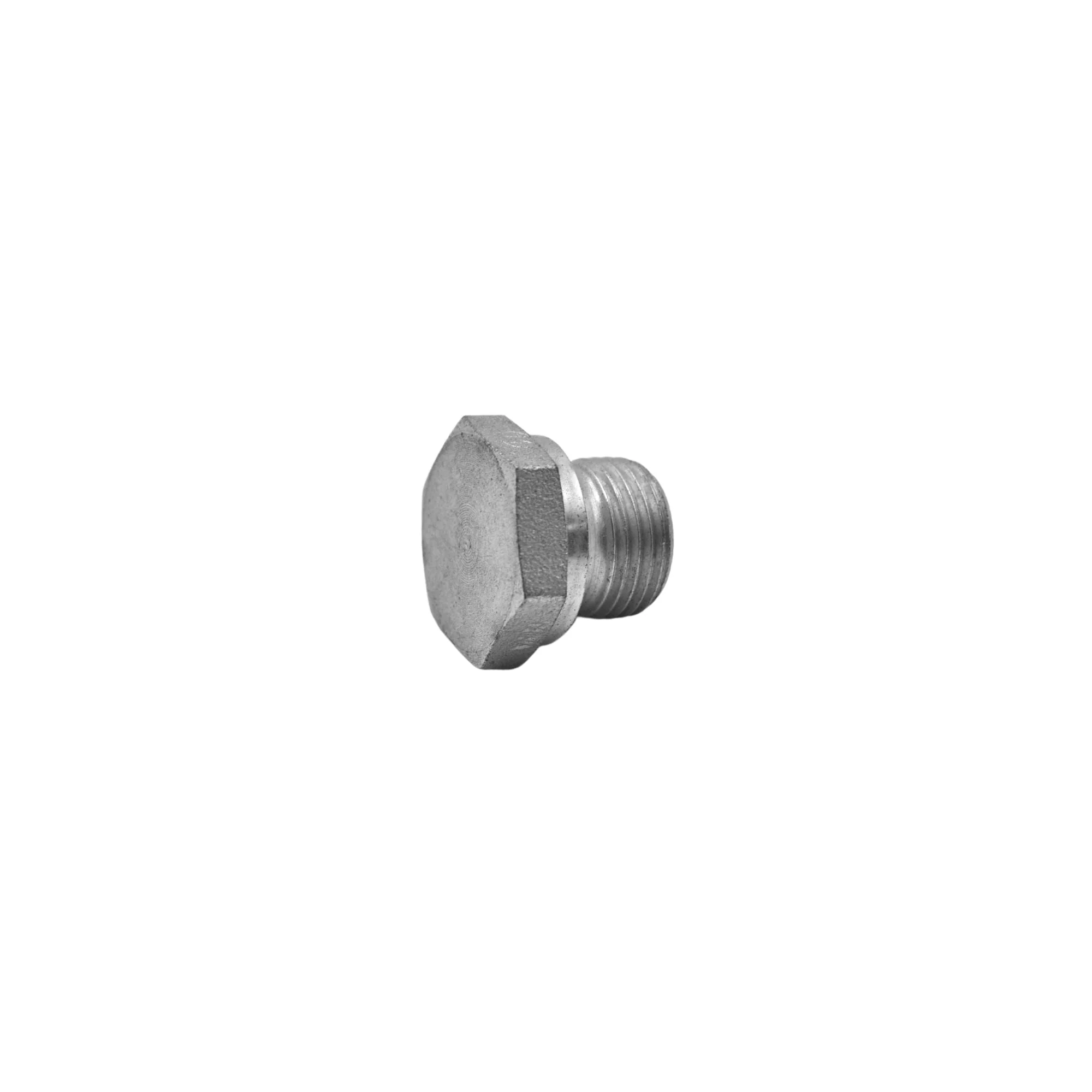

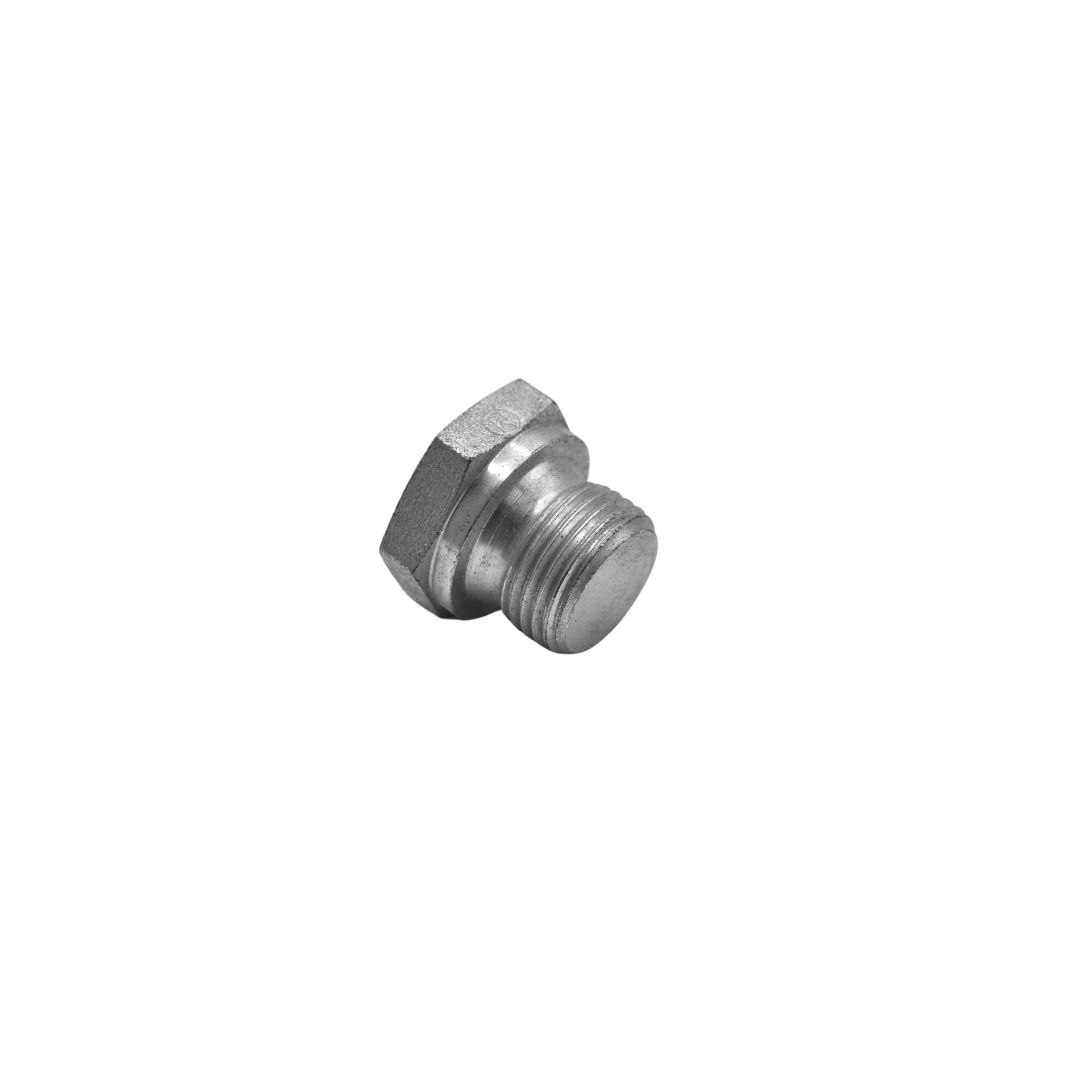

Hydraulics | 18mm Metric Plug 1.5 Pitch | 8555-P-18
| THREAD TYPE B1 | MALE METRIC |
| THREAD SIZE B1 | M18X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 9974 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 21.0 |
| OVERALL LENGTH W (MM) | 6.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.738 |
$3.09
Original: $8.82
-65%Hydraulics | 18mm Metric Plug 1.5 Pitch | 8555-P-18—
$8.82
$3.09Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE METRIC |
| THREAD SIZE B1 | M18X1.5 |
| THREAD DRILL B1 (MM) | SOLID |
| THREAD SPECIFICATION B1 | ISO 9974 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 21.0 |
| OVERALL LENGTH W (MM) | 6.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.738 |
