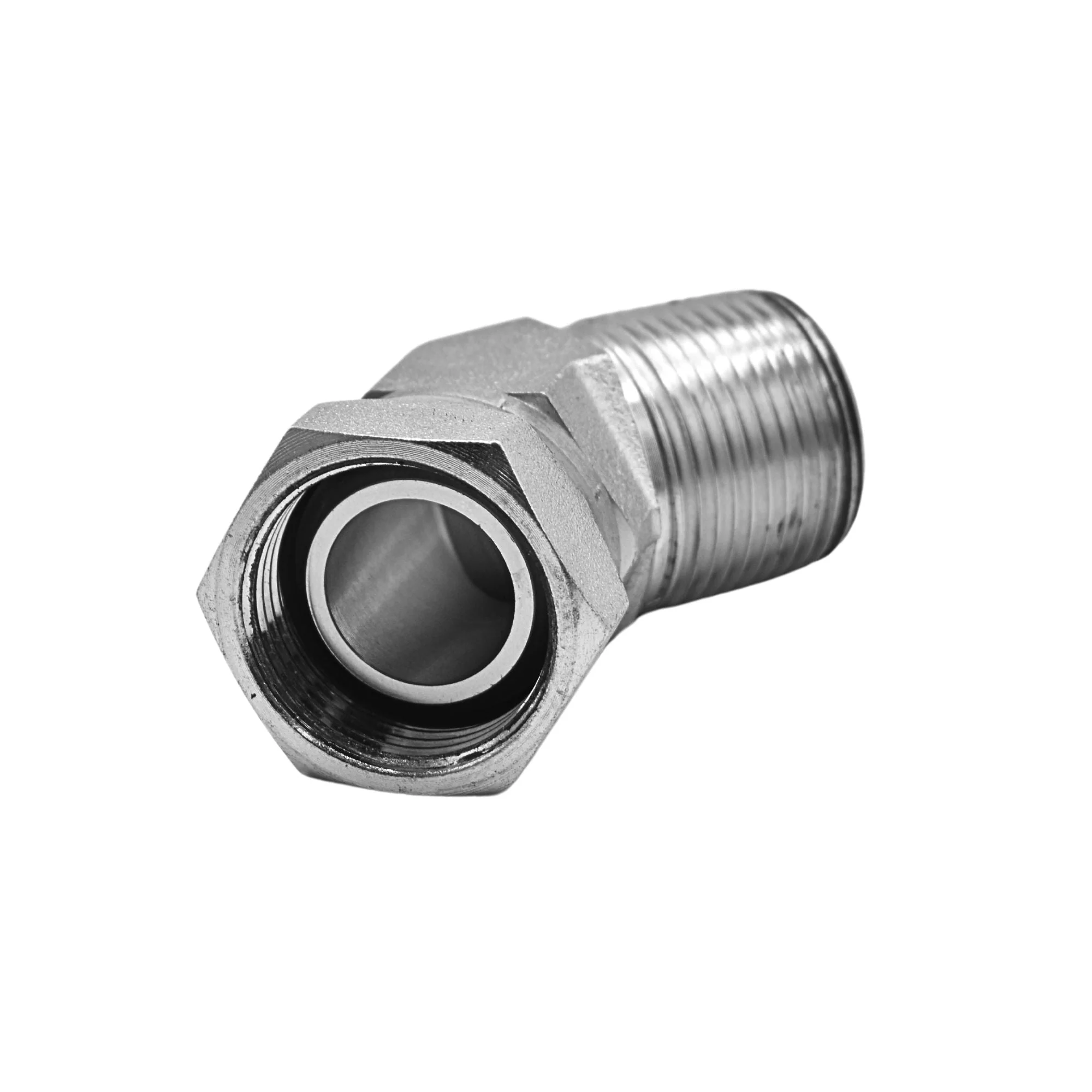

Hydraulics | 16MP-16FPS 45deg Elb Forg Adapter | 1503-16-16-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.480 |
| CENTERLINE LENGTH M IN | 1.500 |
| CENTERLINE LENGTH M2 IN | 1.150 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.63 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.637 |
$4.87
Original: $13.91
-65%Hydraulics | 16MP-16FPS 45deg Elb Forg Adapter | 1503-16-16-FG—
$13.91
$4.87Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.480 |
| CENTERLINE LENGTH M IN | 1.500 |
| CENTERLINE LENGTH M2 IN | 1.150 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.63 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.637 |
