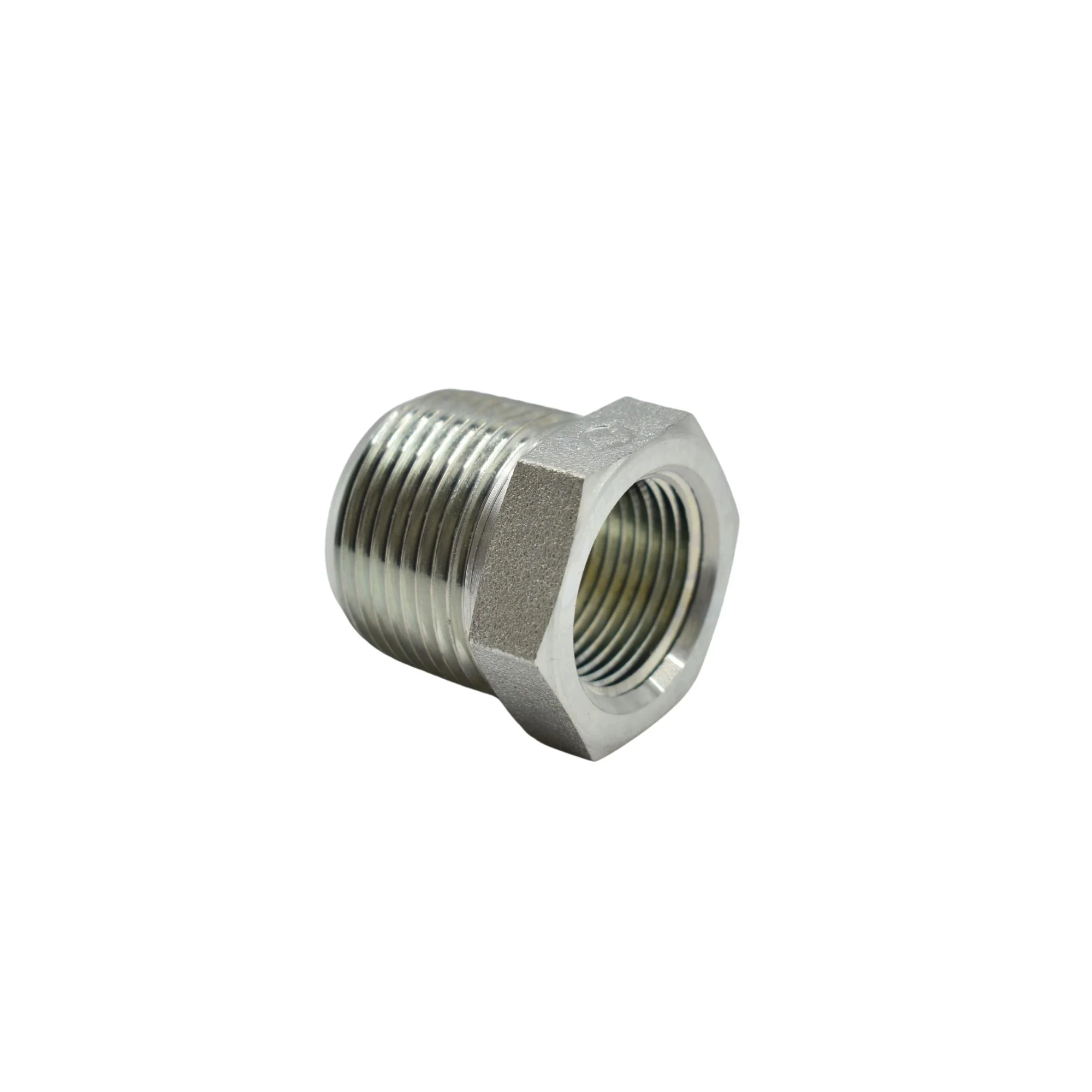

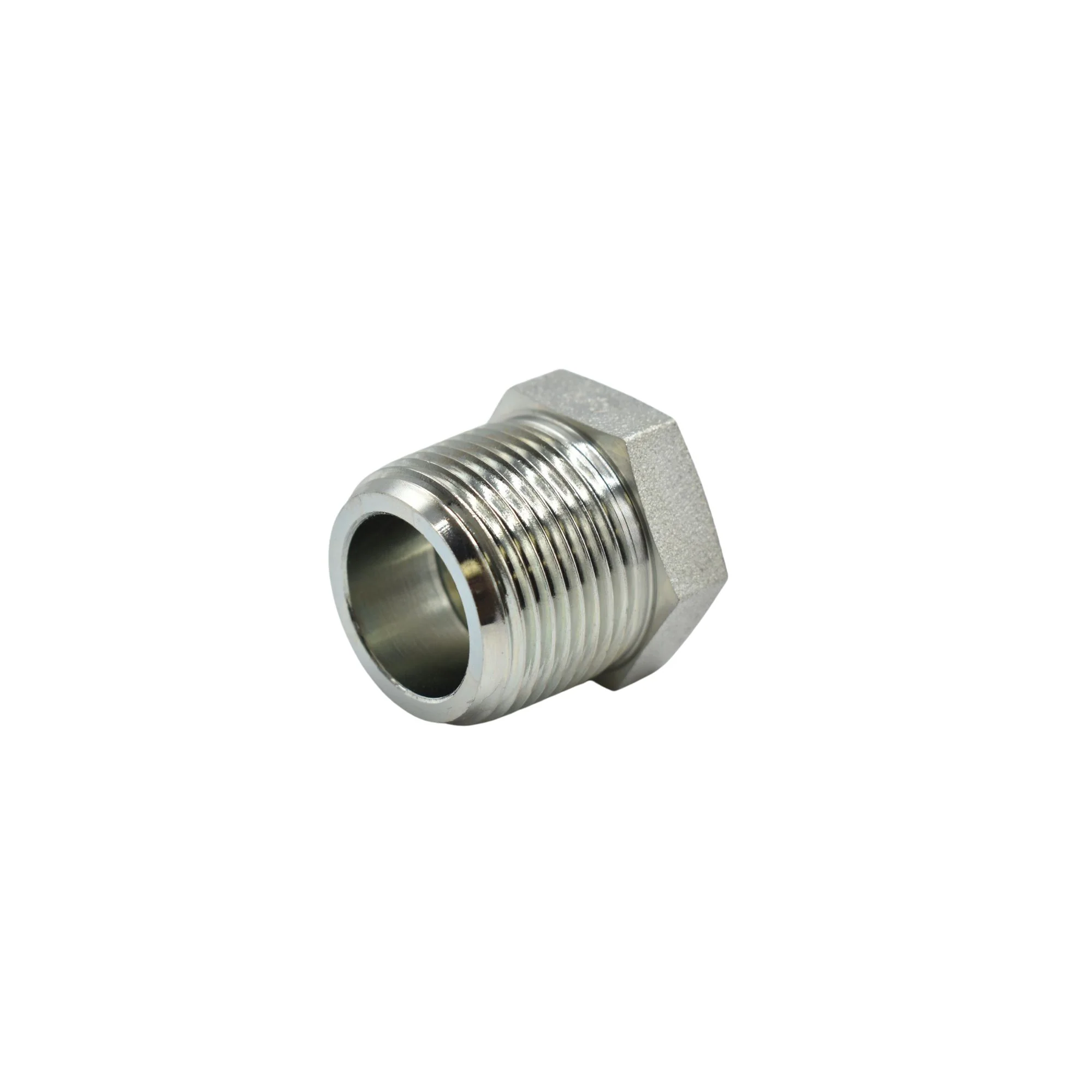

Hydraulics | 16MP-12FP Red Bushing | 5406-16-12
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.907 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.360 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.18 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.571 |
$3.20
Original: $9.14
-65%Hydraulics | 16MP-12FP Red Bushing | 5406-16-12—
$9.14
$3.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.907 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.360 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.18 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.571 |
