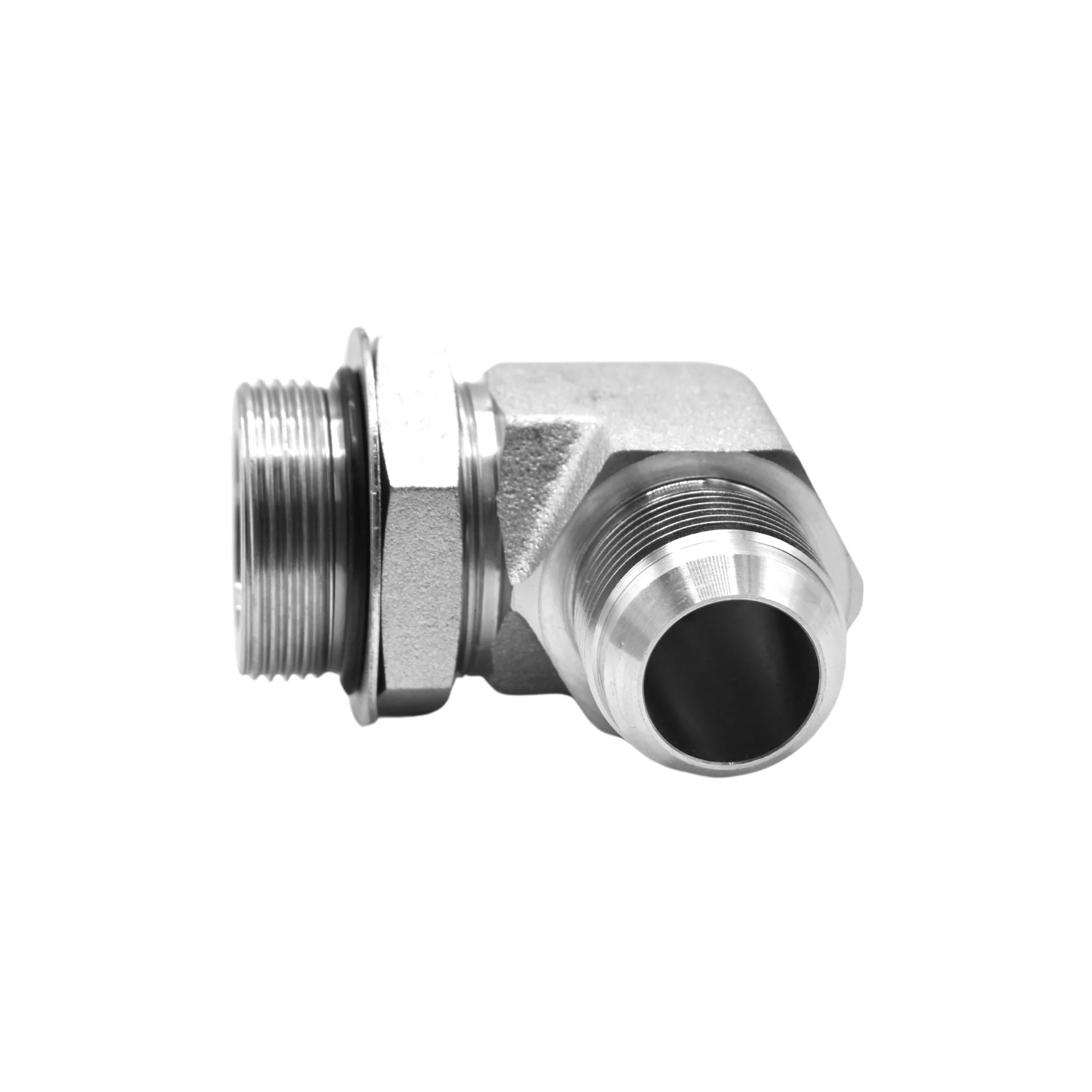

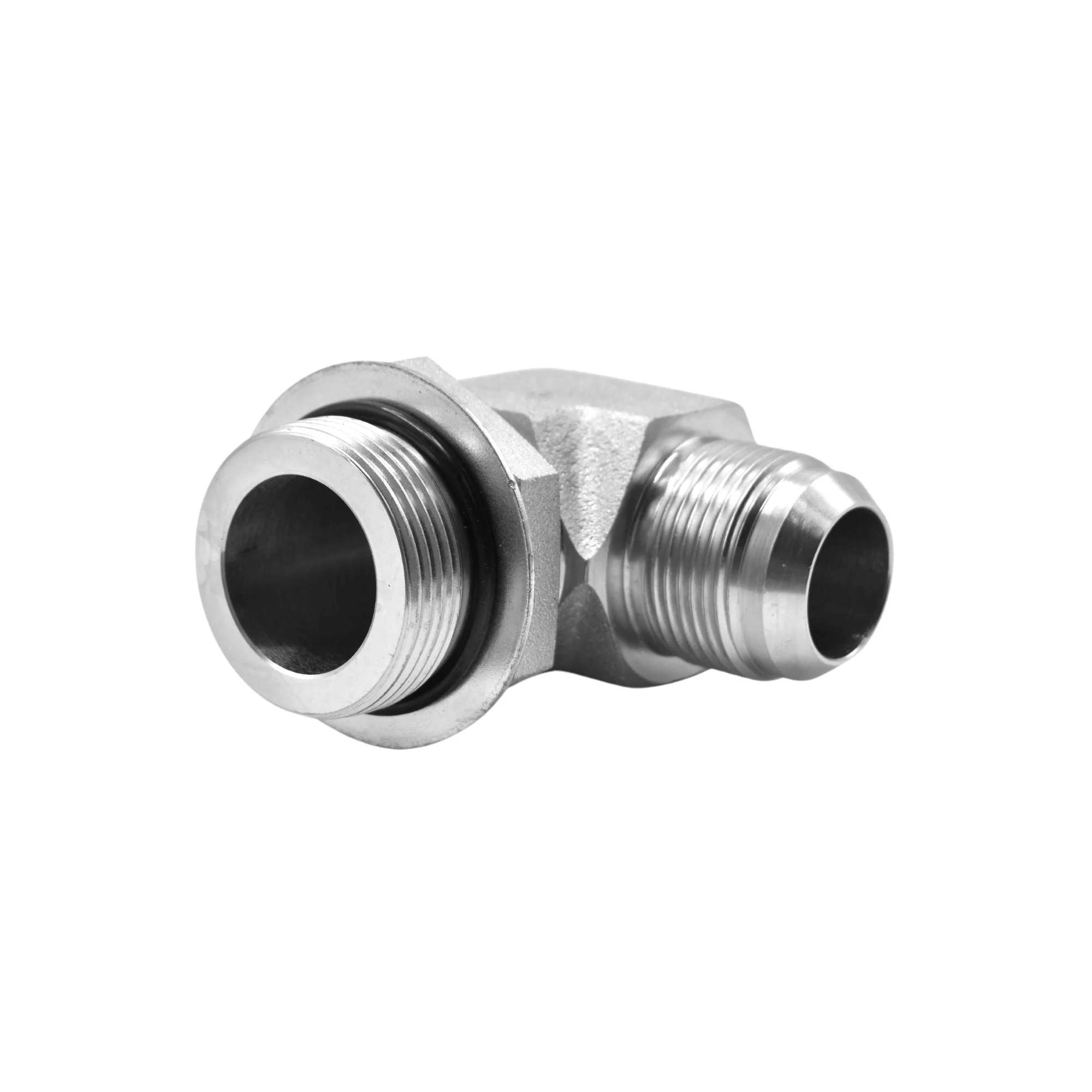

Hydraulics | 16MJ-20MAORB 90deg Elb Forg Adapter | 6801-16-20-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.250 |
| CENTERLINE LENGTH M IN | 2.010 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.478 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 16.925 |
$8.35
Original: $23.85
-65%Hydraulics | 16MJ-20MAORB 90deg Elb Forg Adapter | 6801-16-20-NWO-FG—
$23.85
$8.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 2.250 |
| CENTERLINE LENGTH M IN | 2.010 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.478 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 16.925 |
