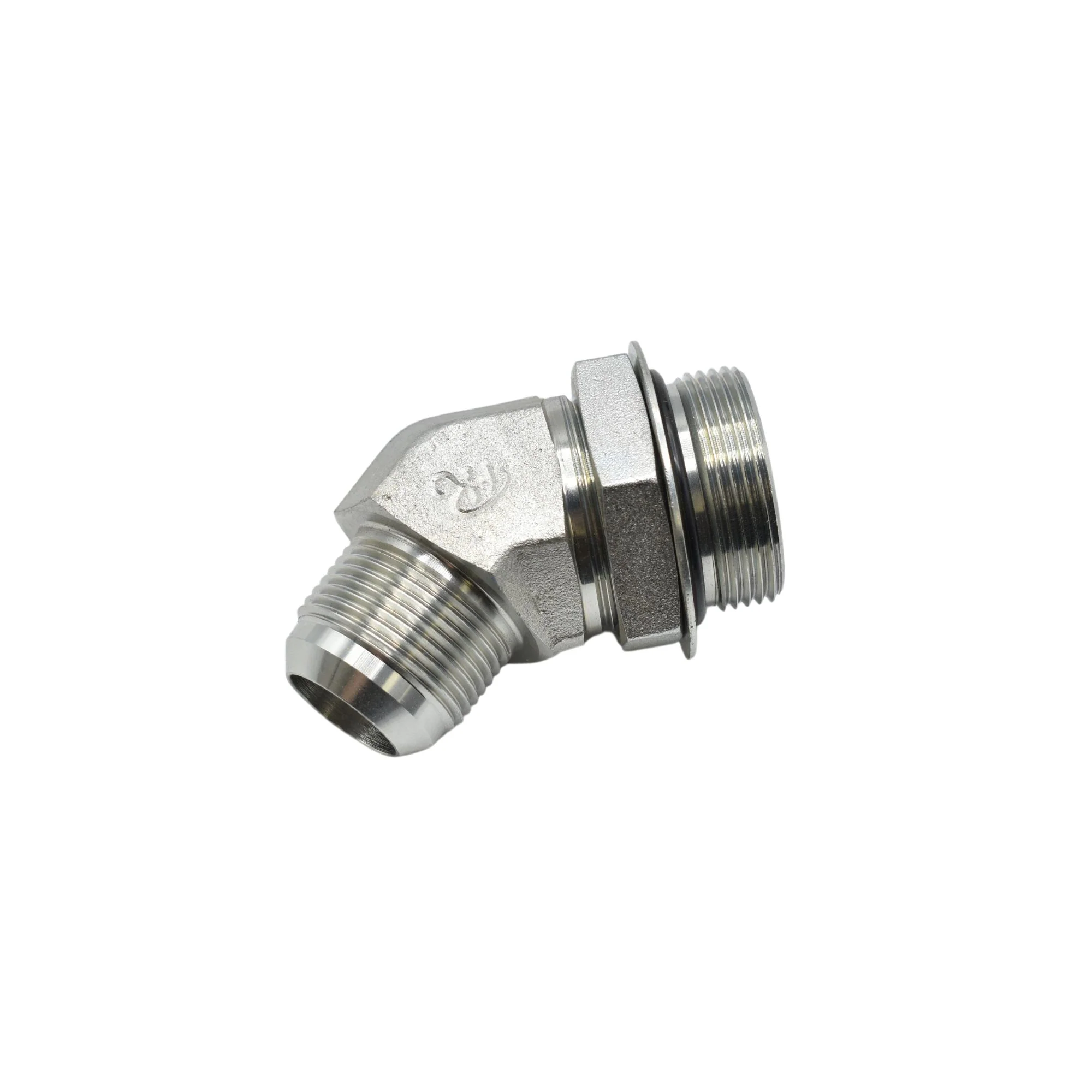

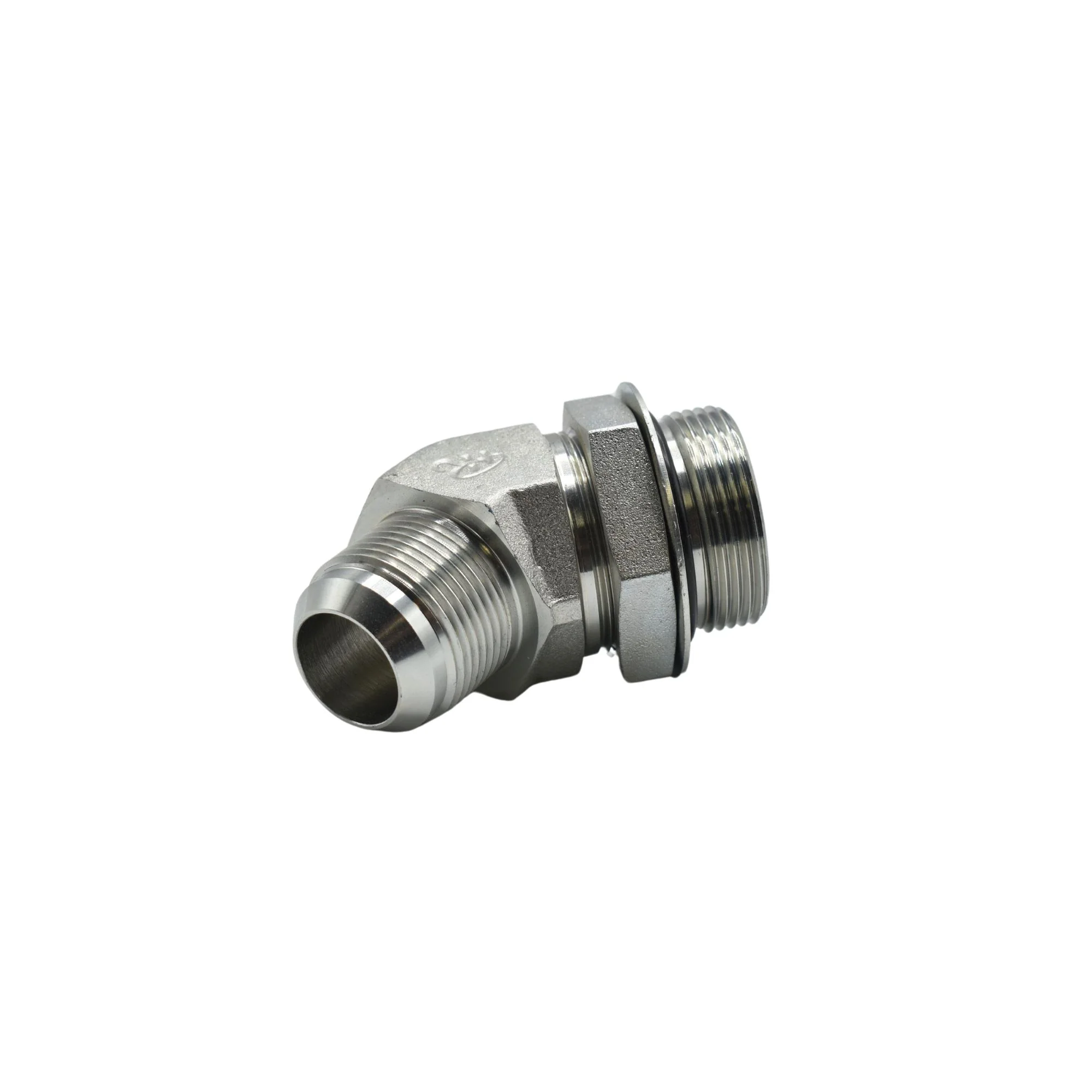

Hydraulics | 16MJ-20MAORB 45deg Elb Forg | 6802-16-20-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 1.910 |
| CENTERLINE LENGTH M IN | 1.540 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$21.15
Original: $60.43
-65%Hydraulics | 16MJ-20MAORB 45deg Elb Forg | 6802-16-20-NWO-FG—
$60.43
$21.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 1.910 |
| CENTERLINE LENGTH M IN | 1.540 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
