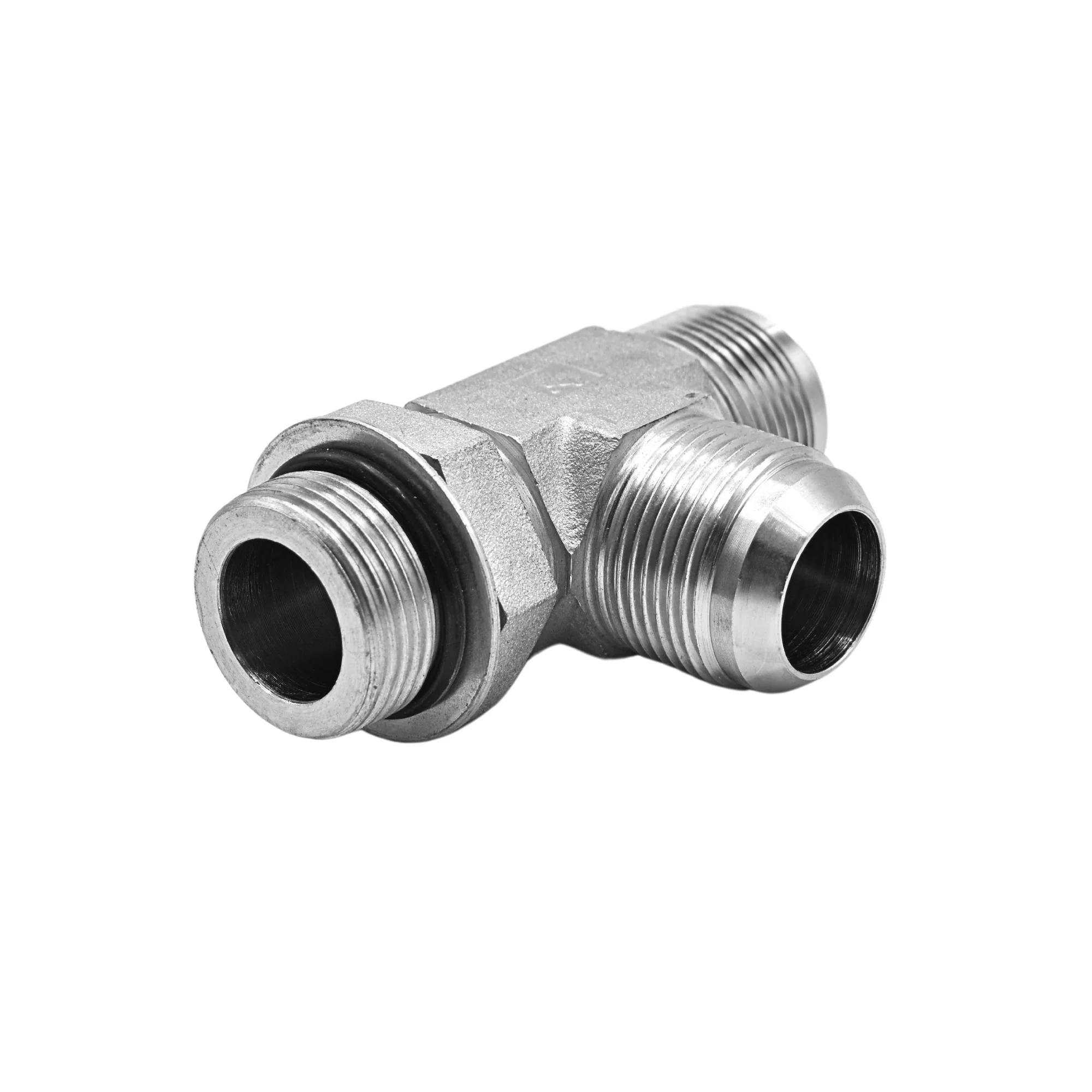

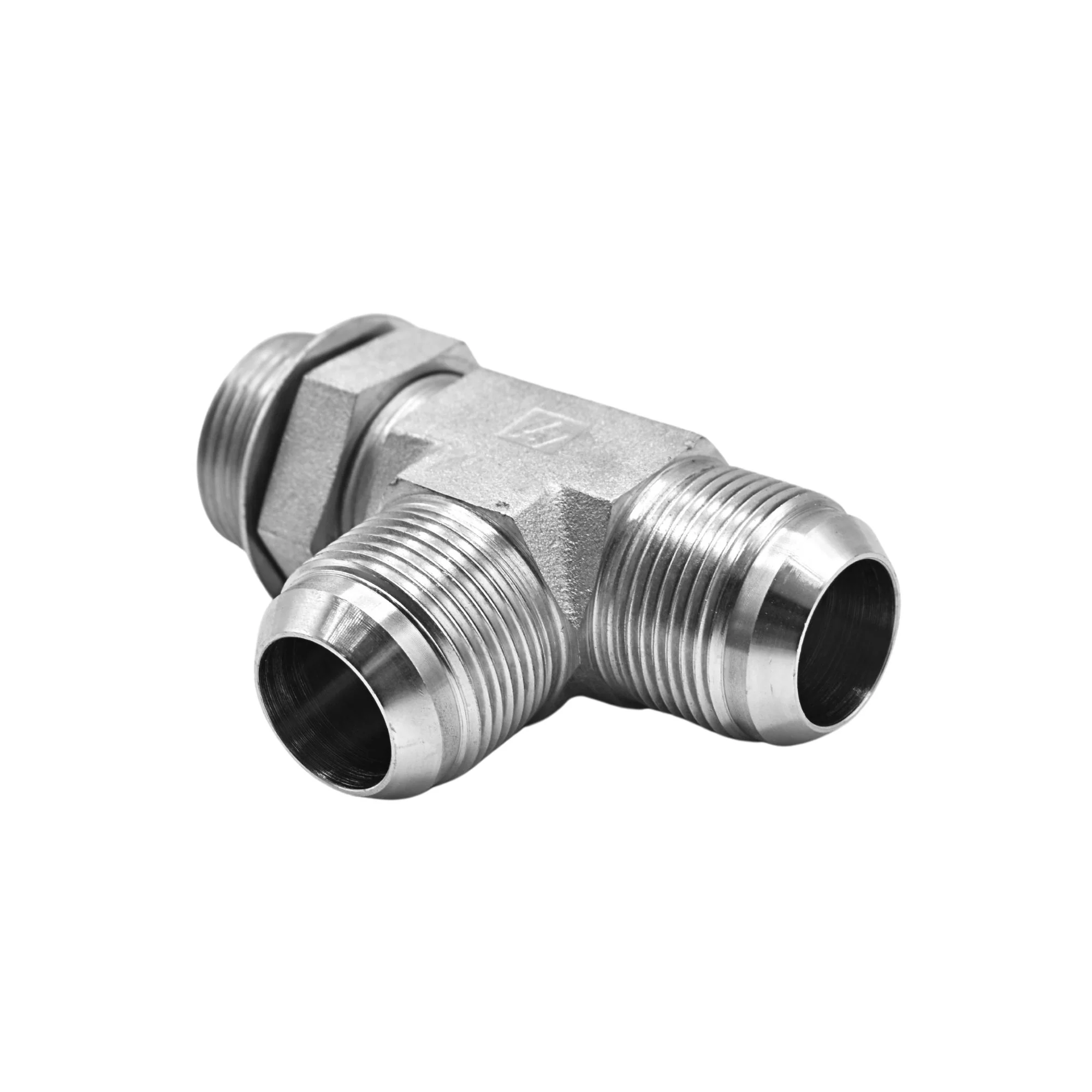

Hydraulics | 16MJ-16MAORB-16MJ Run Tee Forg | 6804-16-16-16-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.810 |
| CENTERLINE LENGTH M2 IN | 2.050 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.0875 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$10.51
Original: $30.04
-65%Hydraulics | 16MJ-16MAORB-16MJ Run Tee Forg | 6804-16-16-16-NWO-FG—
$30.04
$10.51Product Information
