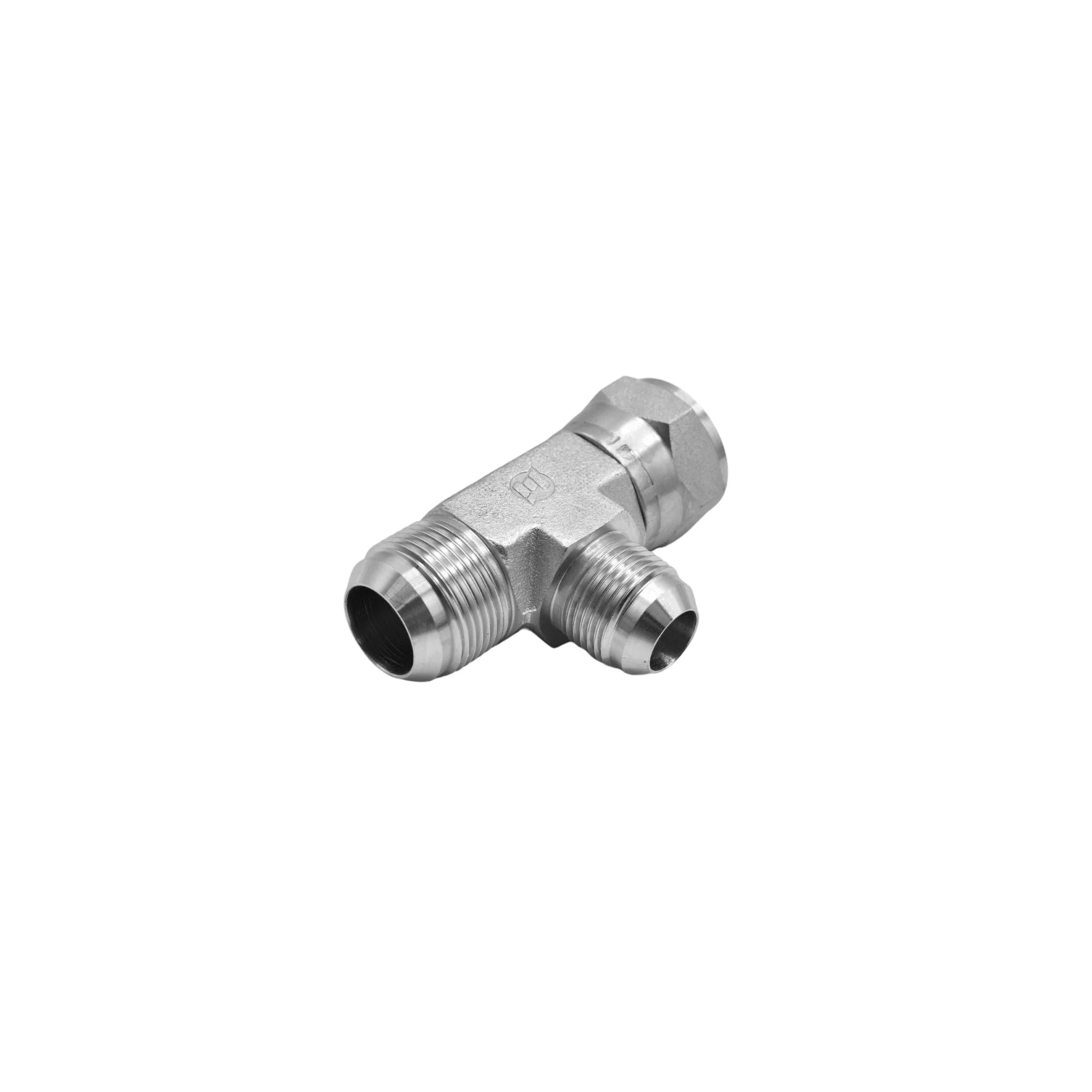

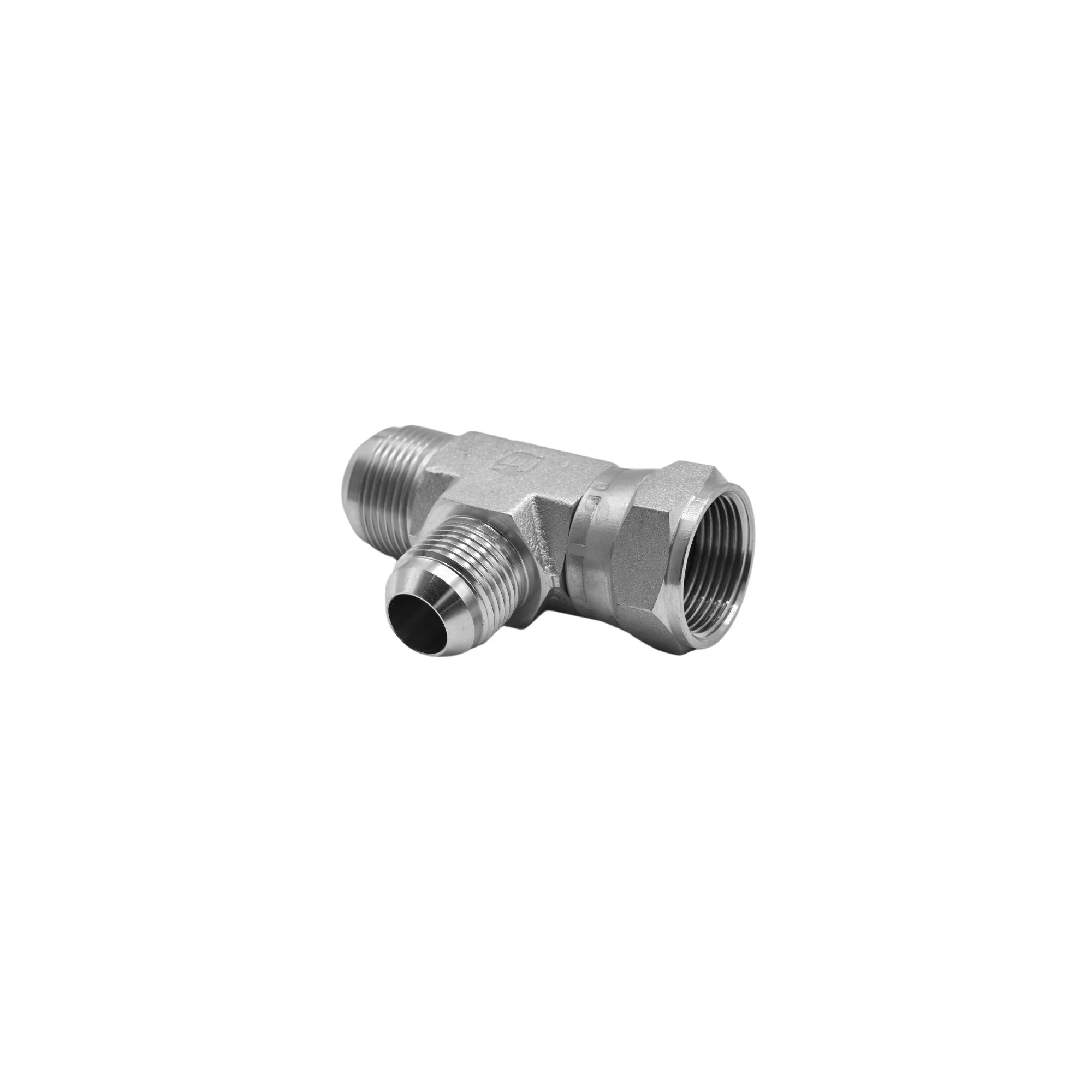

Hydraulics | 16MJ-16FJS-12MJ Tee | 6602-16-16-12-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.760 |
| CENTERLINE LENGTH M IN | 1.810 |
| CENTERLINE LENGTH M2 IN | 2.000 |
| CENTERLINE LENGTH M3 IN | 1.400 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$16.30
Original: $46.58
-65%Hydraulics | 16MJ-16FJS-12MJ Tee | 6602-16-16-12-FG—
$46.58
$16.30Product Information
