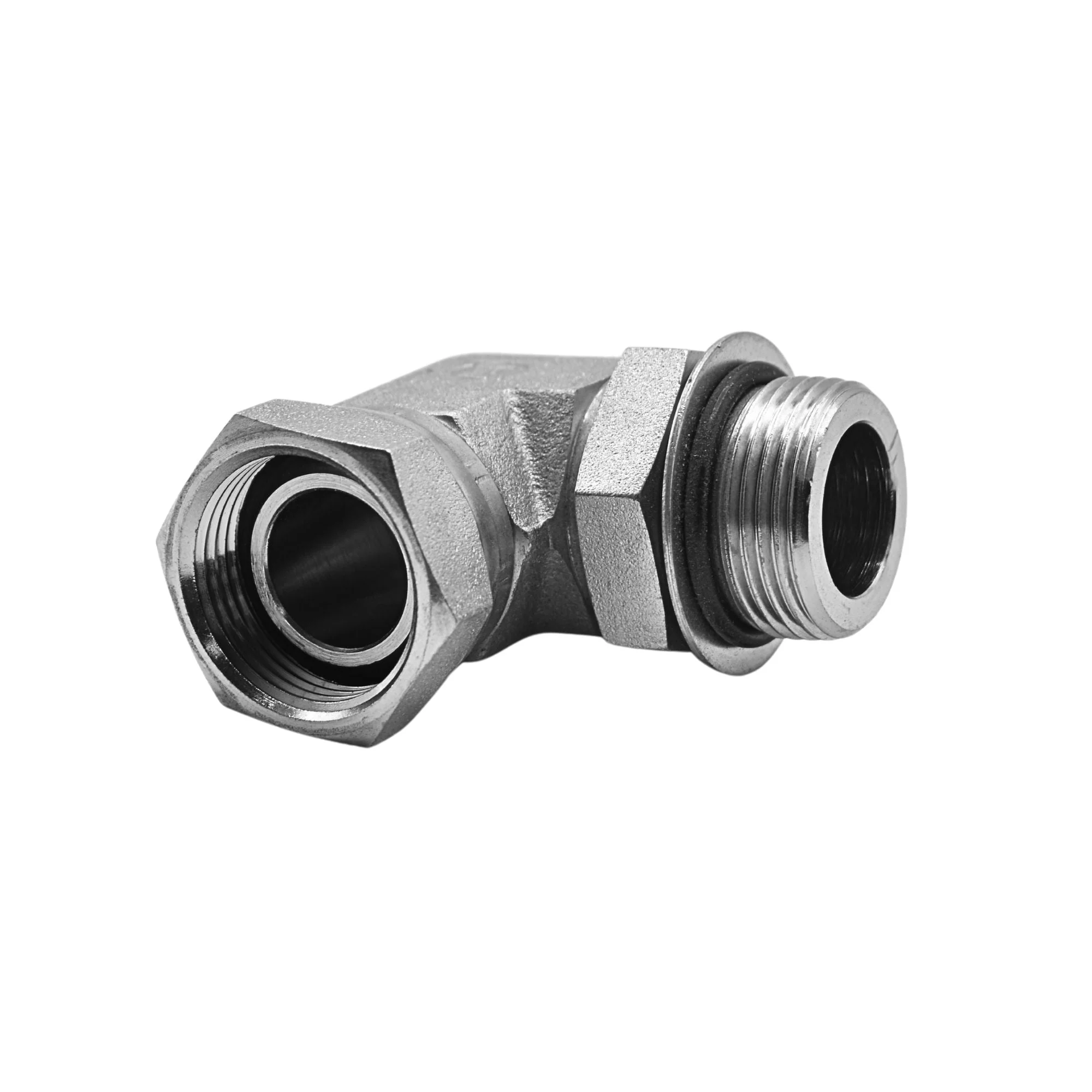

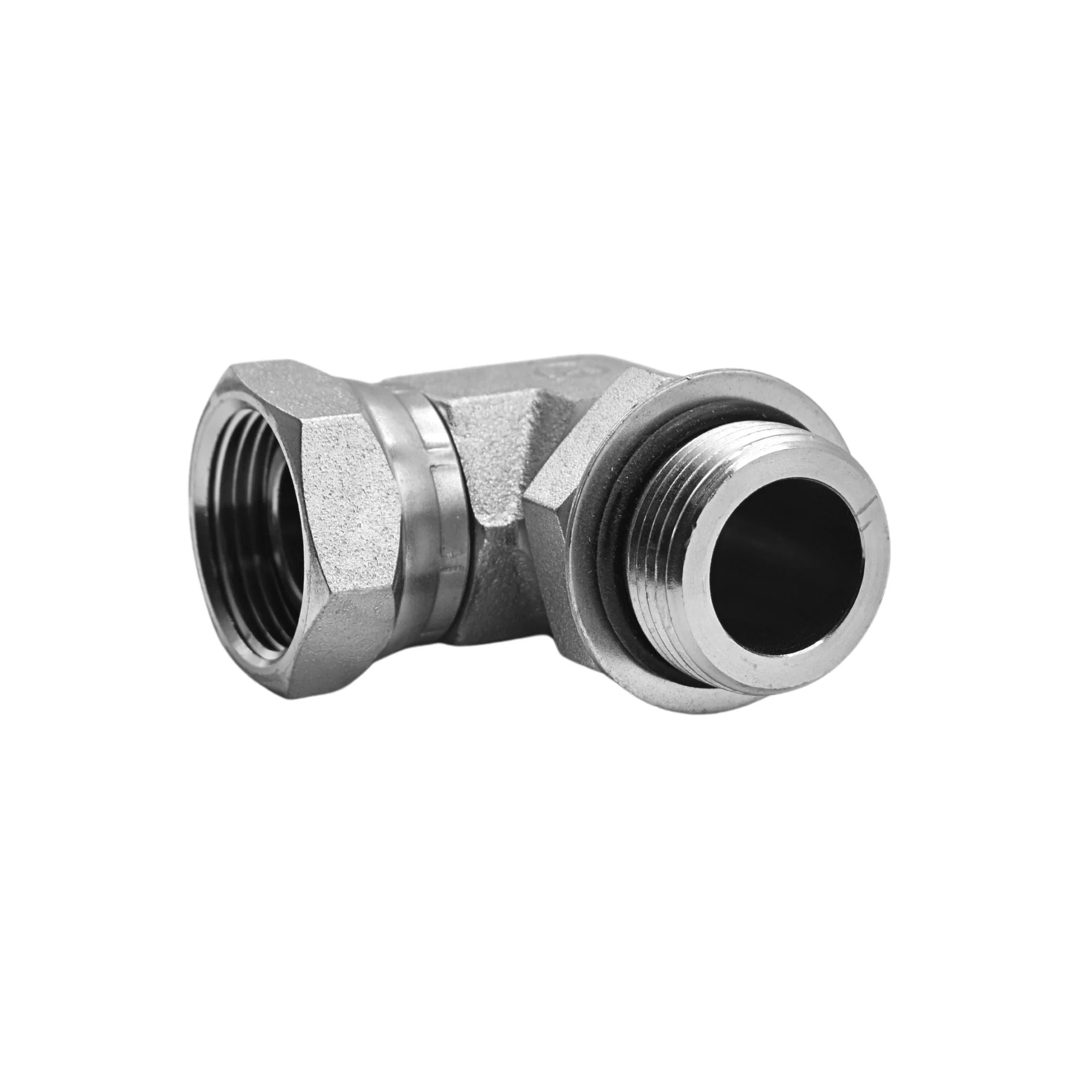

Hydraulics | 16MAORB-16FPS 90deg Elb Forg Adapter | 6901-16-16-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.78/0.88 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.890 |
| OVERALL LENGTH L2 IN | 1.540 |
| CENTERLINE LENGTH M IN | 2.050 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$10.49
Original: $29.97
-65%Hydraulics | 16MAORB-16FPS 90deg Elb Forg Adapter | 6901-16-16-NWO-FG—
$29.97
$10.49Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.78/0.88 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.890 |
| OVERALL LENGTH L2 IN | 1.540 |
| CENTERLINE LENGTH M IN | 2.050 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
