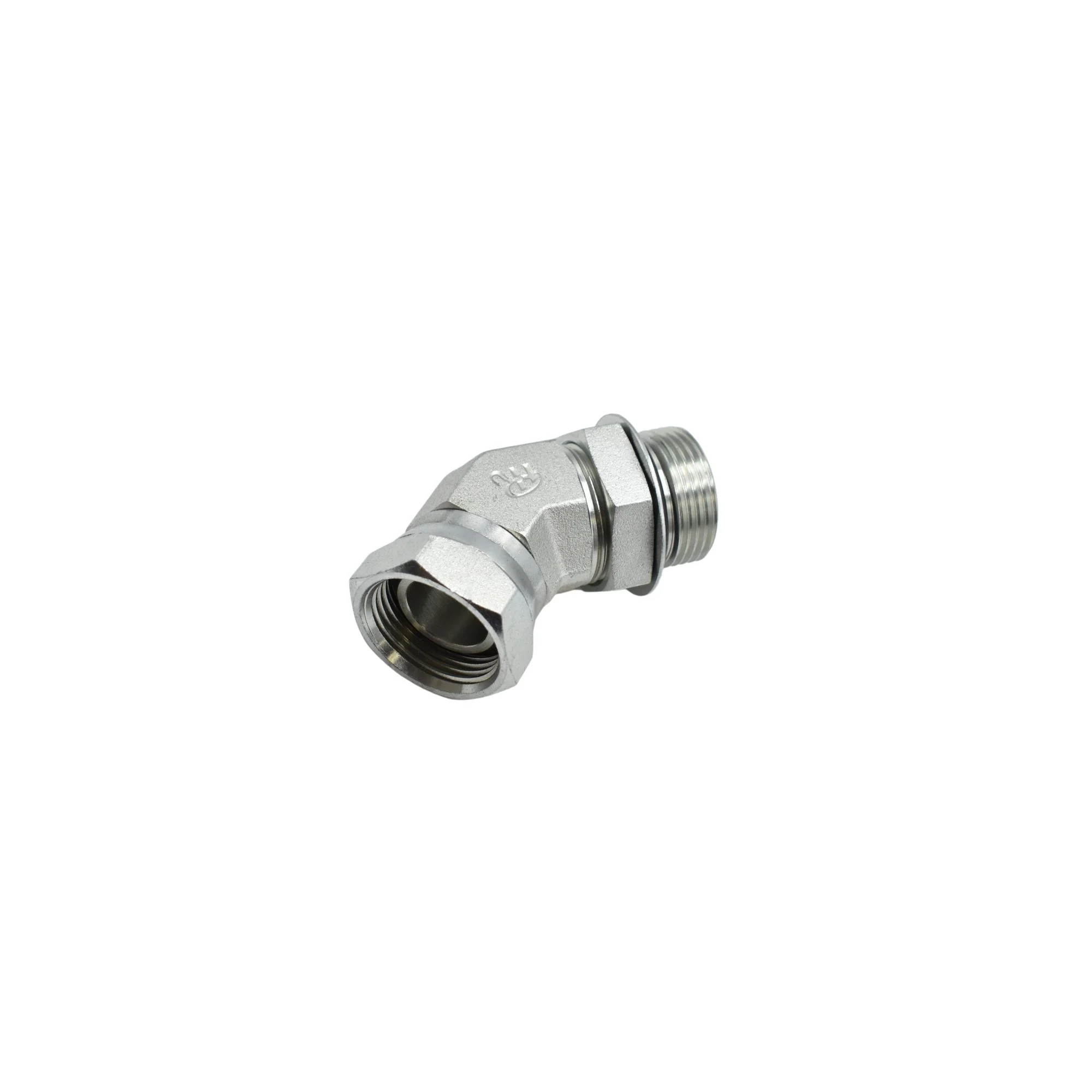

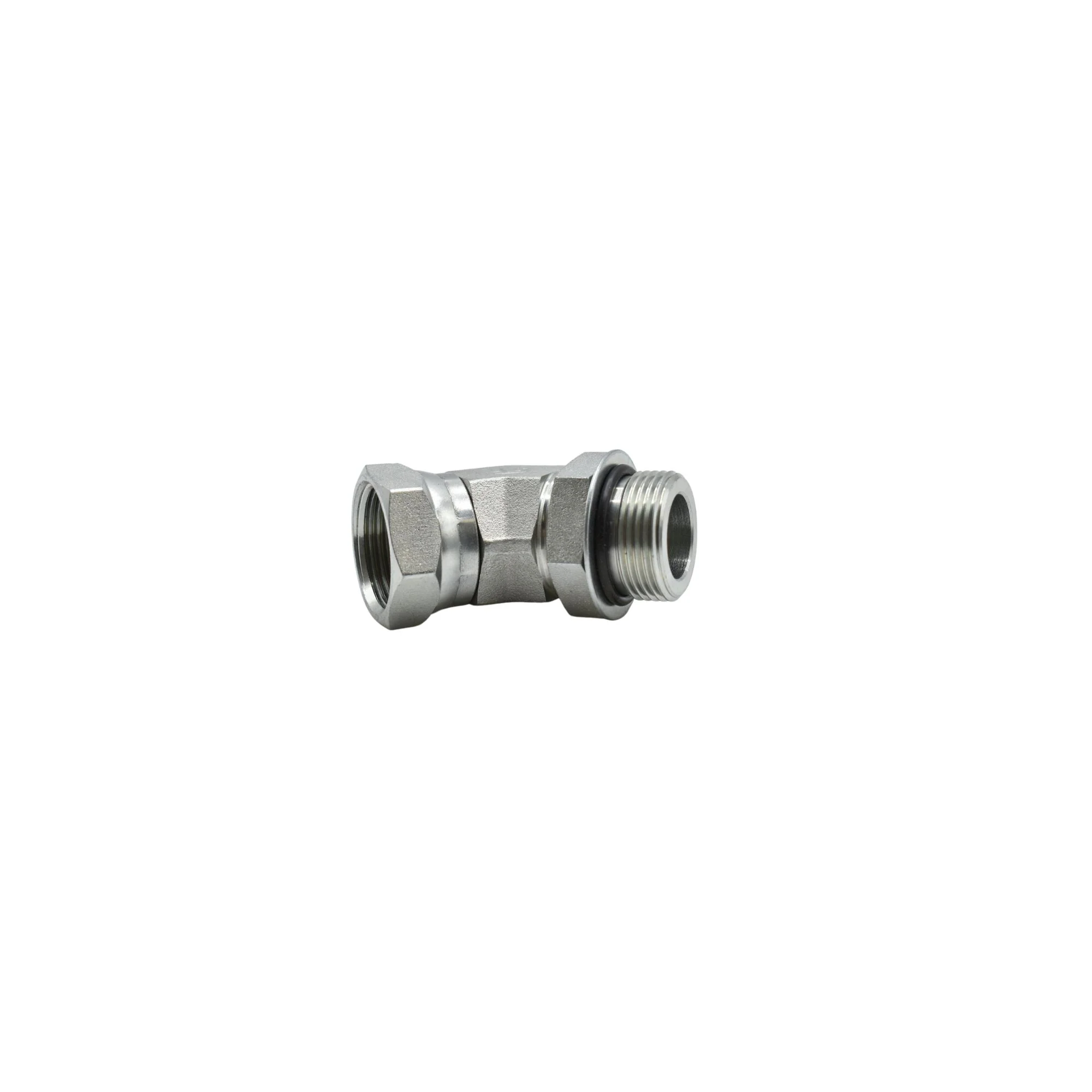

Hydraulics | 16MAORB-16FPS 45deg Elb Forg | 6902-16-16-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.500 |
| OVERALL LENGTH L2 IN | 1.150 |
| CENTERLINE LENGTH M IN | 1.860 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.8375 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$15.24
Original: $43.54
-65%Hydraulics | 16MAORB-16FPS 45deg Elb Forg | 6902-16-16-NWO-FG—
$43.54
$15.24Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.500 |
| OVERALL LENGTH L2 IN | 1.150 |
| CENTERLINE LENGTH M IN | 1.860 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.8375 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
