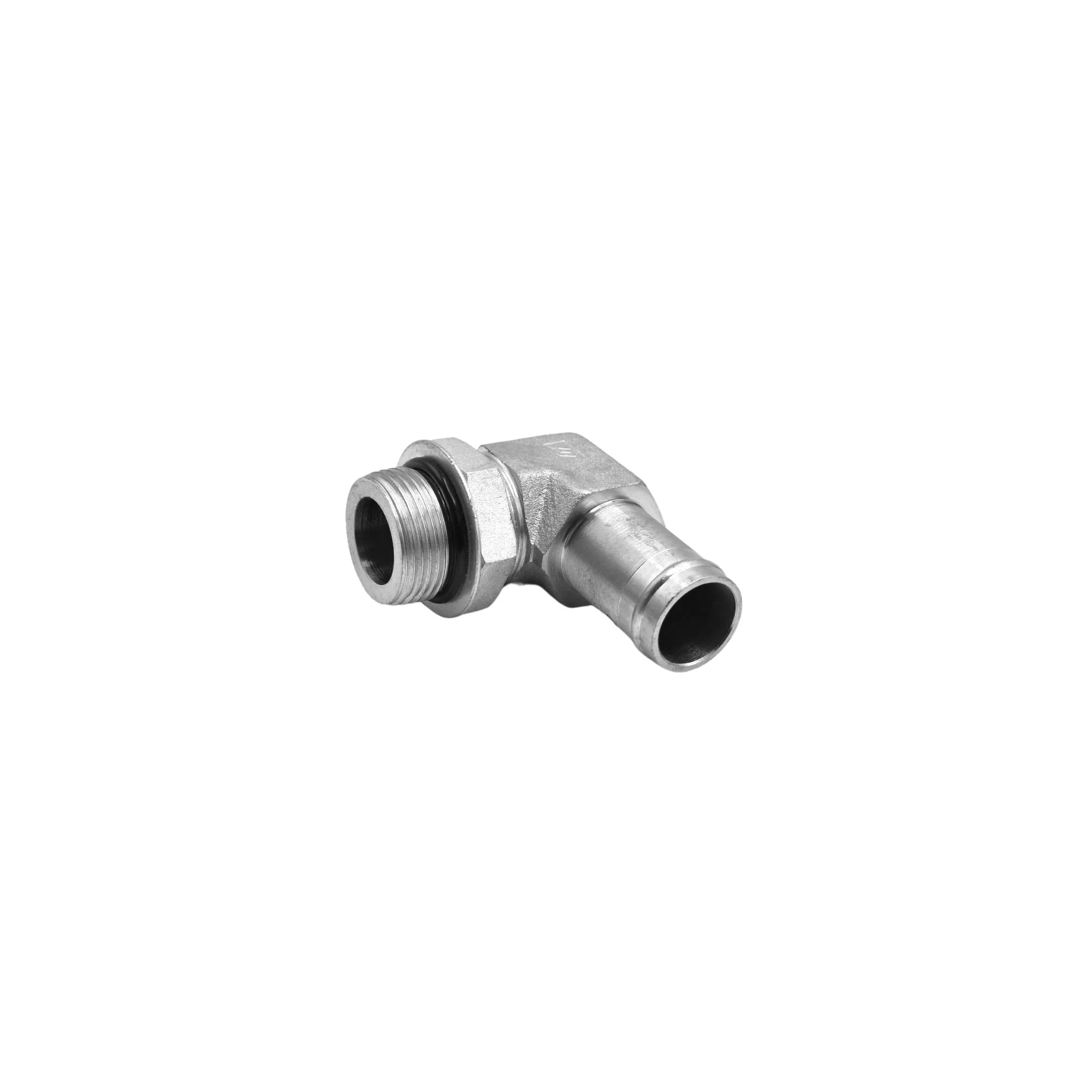

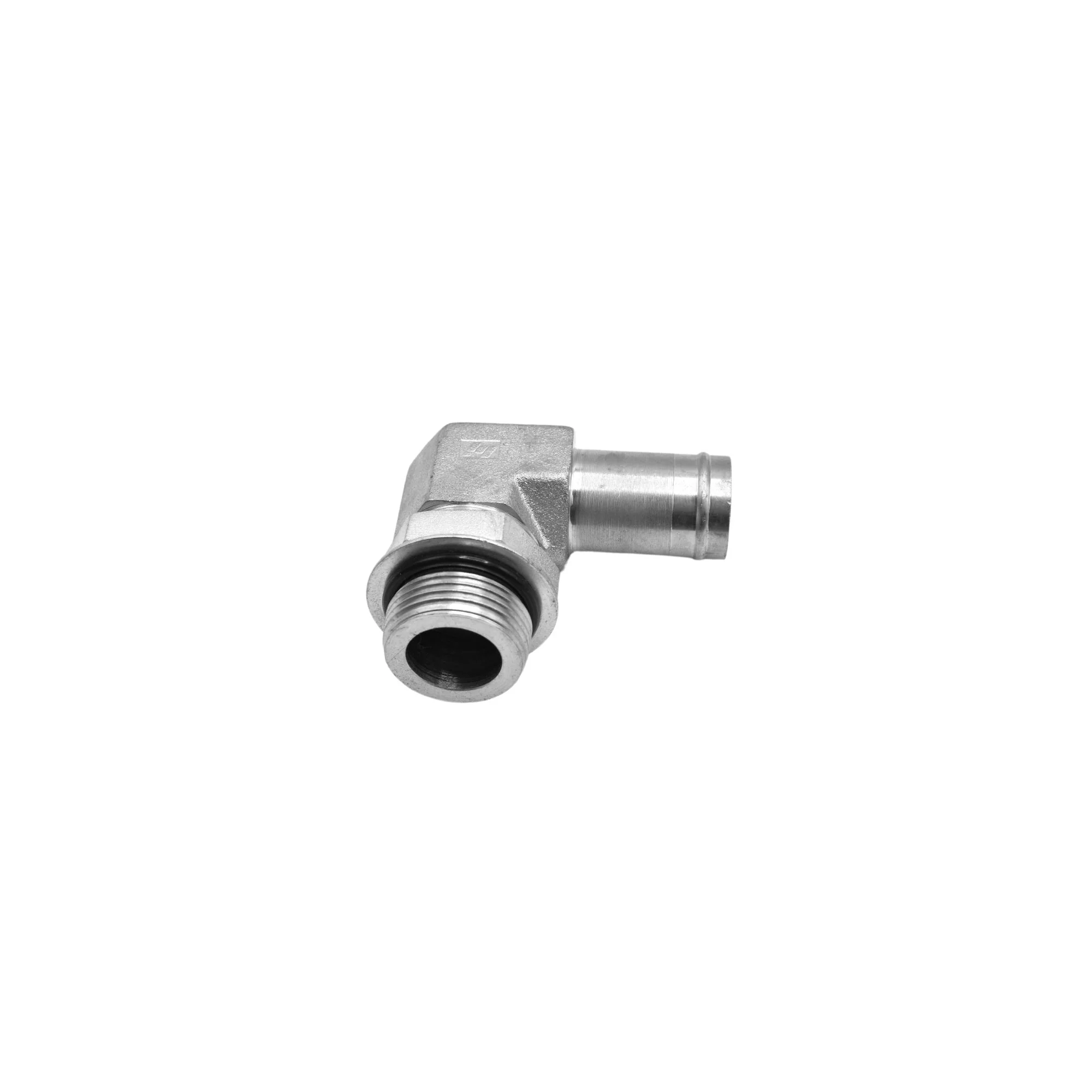

Hydraulics | 16HB-16MAORB 90deg Elb Forg | 4601-16-16-NWO-FG
| THREAD B1 TYPE | HOSE BARB |
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | 0.843 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 2.394 |
| OVERALL LENGTH L2 IN | 2.039 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.85 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$12.30
Original: $35.15
-65%Hydraulics | 16HB-16MAORB 90deg Elb Forg | 4601-16-16-NWO-FG—
$35.15
$12.30Product Information
