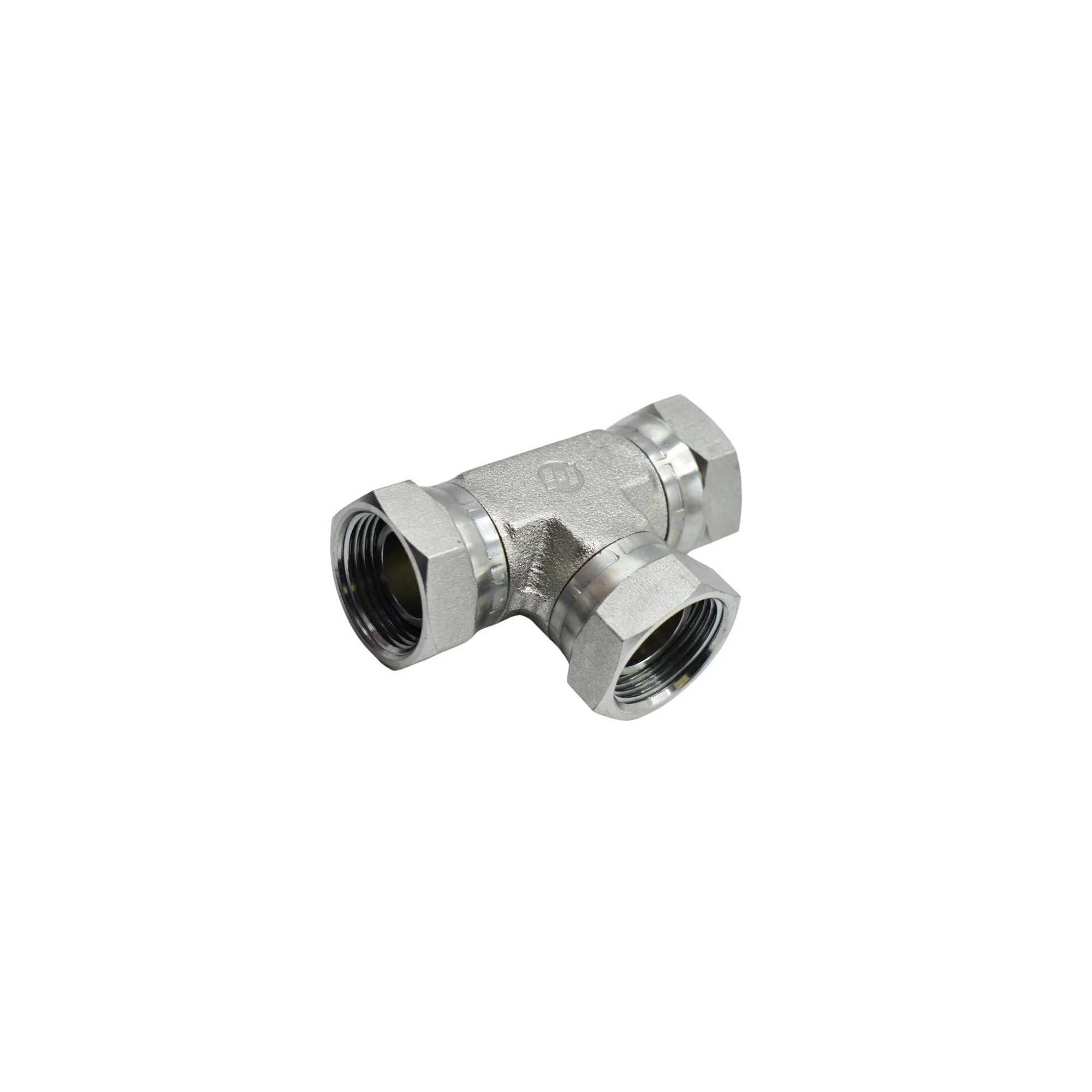

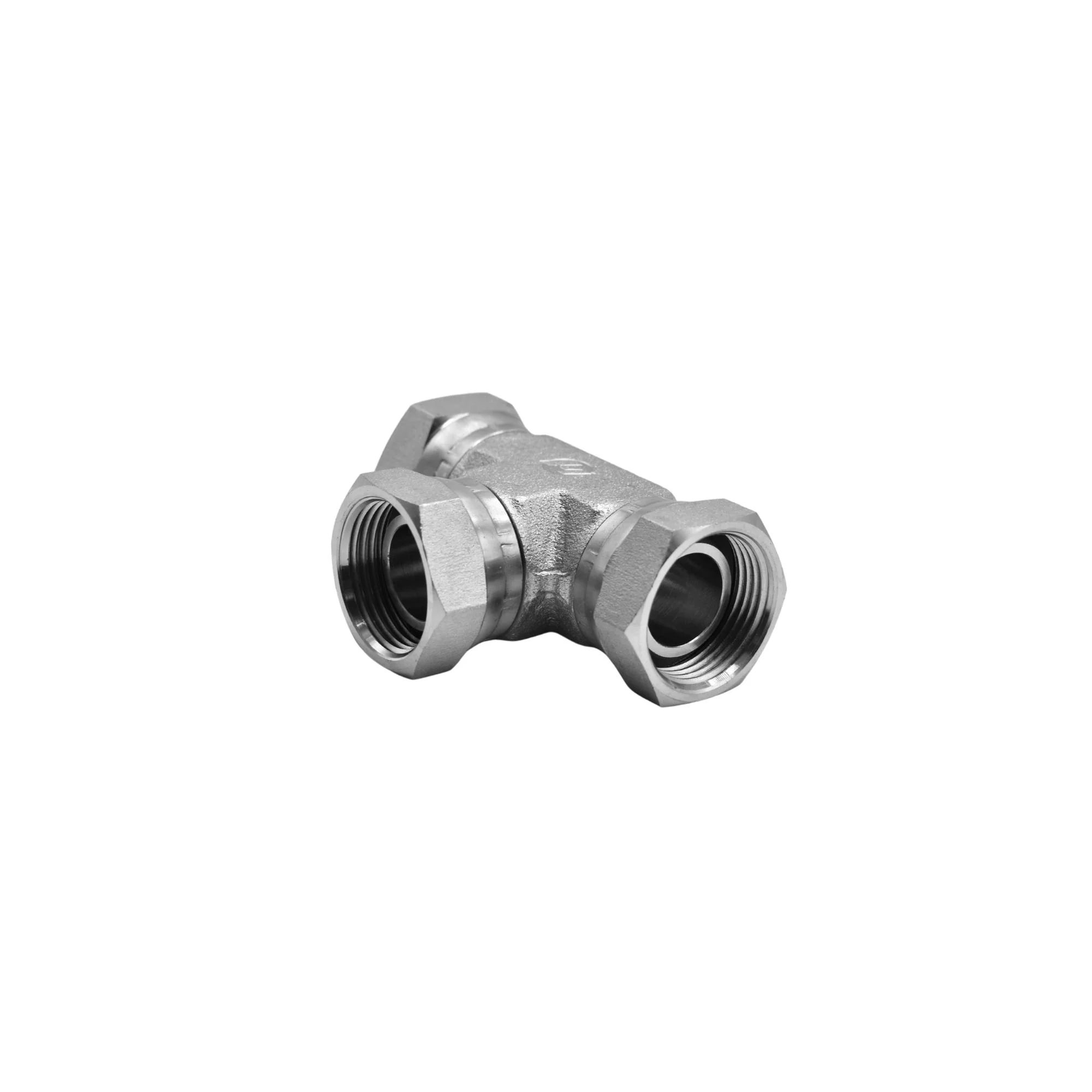

Hydraulics | 16FPS-16FPS-16FPS Tee Forg | 1603-16-16-16-FG
| THREAD B1 TYPE | FEMALE NPSM SWIVEL |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.780 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPSM SWIVEL |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.780 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| C HEX 3 IN | 1.500 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.890 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.540 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.2312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$22.70
Original: $64.85
-65%Hydraulics | 16FPS-16FPS-16FPS Tee Forg | 1603-16-16-16-FG—
$64.85
$22.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPSM SWIVEL |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.780 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.780 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPSM SWIVEL |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.780 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| C HEX 3 IN | 1.500 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.890 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.540 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.2312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
