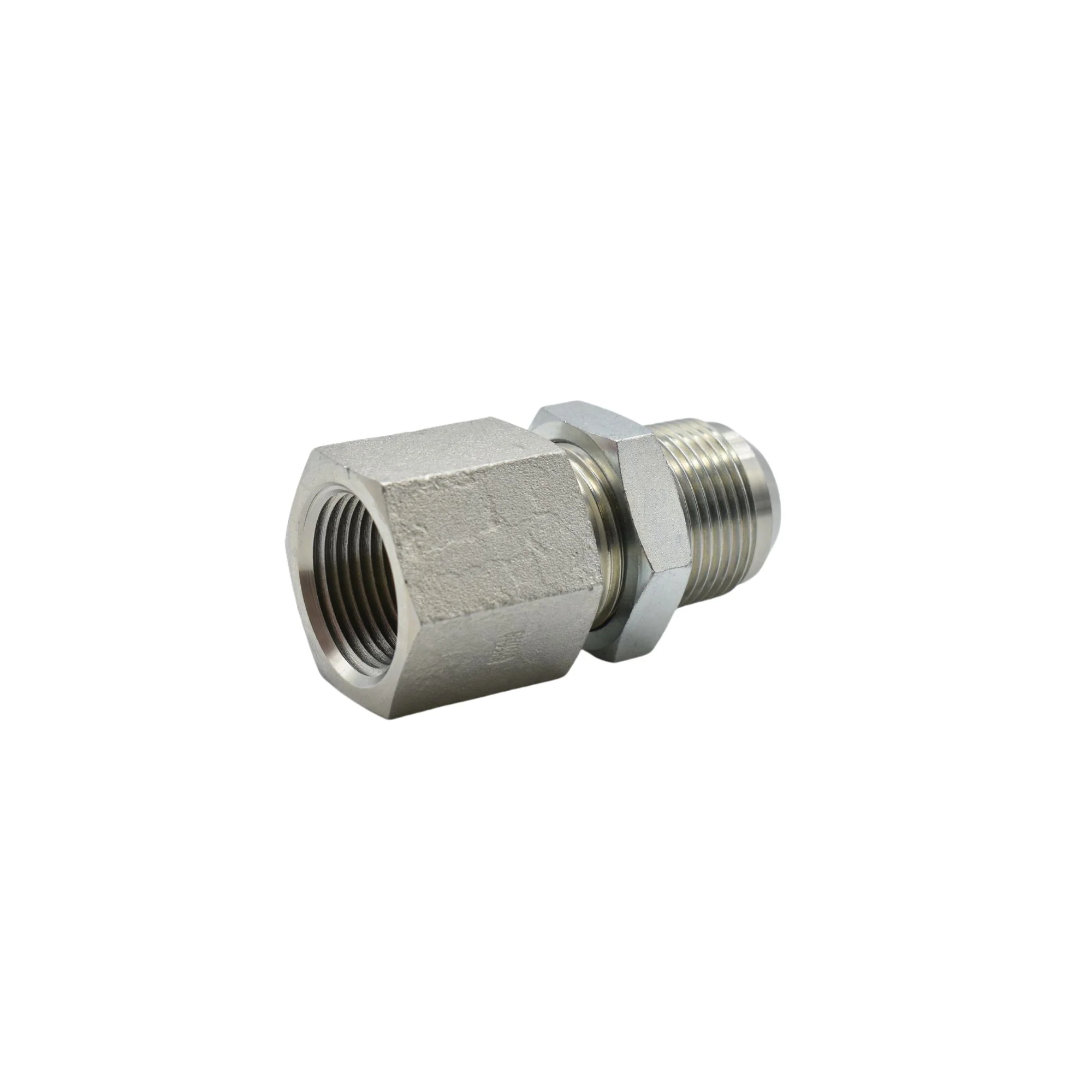

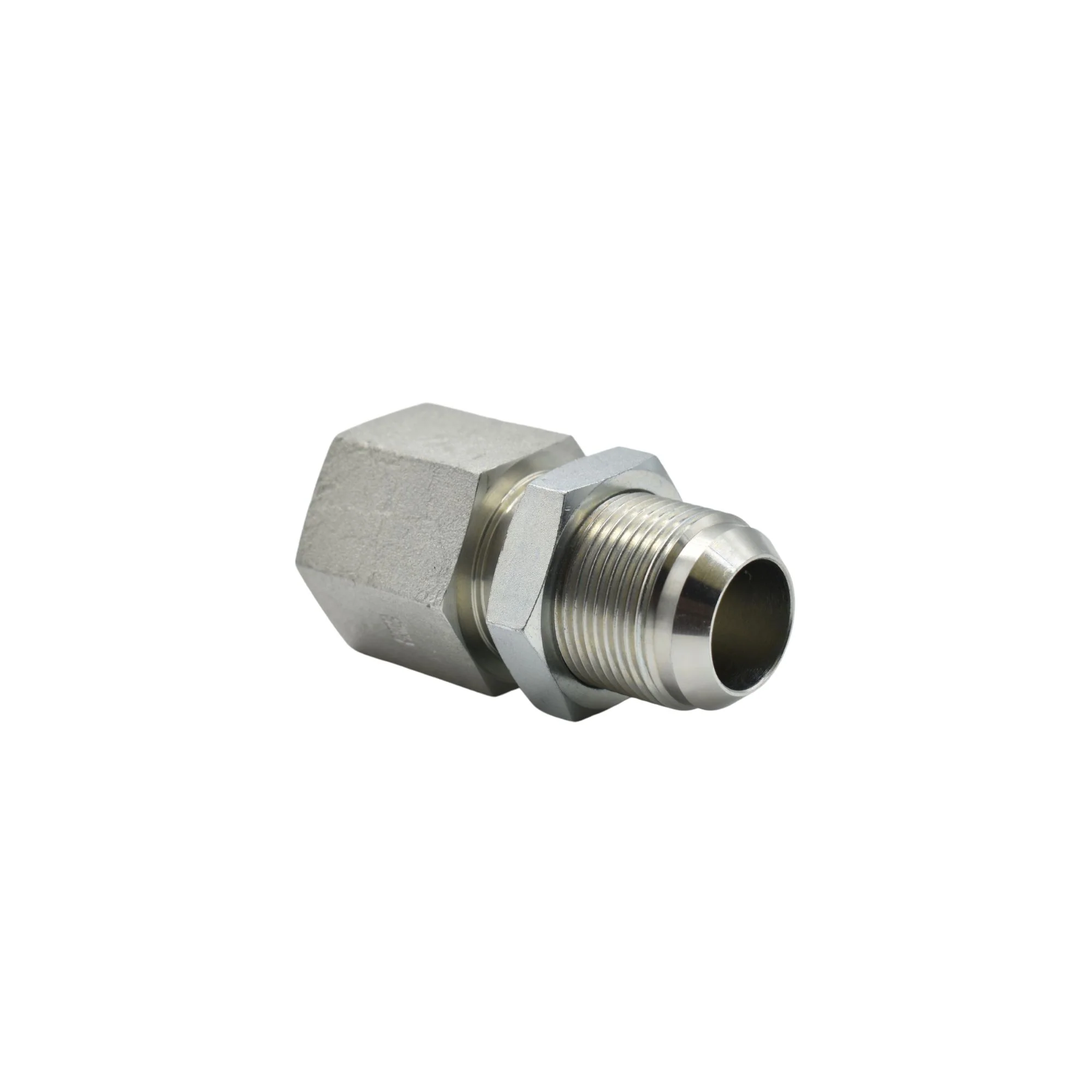

Hydraulics | 16FP-16MJ Bulkhead Straight with Locknut Adapter | 2705-LN-16-16
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.230 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9266 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$10.40
Original: $29.72
-65%Hydraulics | 16FP-16MJ Bulkhead Straight with Locknut Adapter | 2705-LN-16-16—
$29.72
$10.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.230 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9266 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
