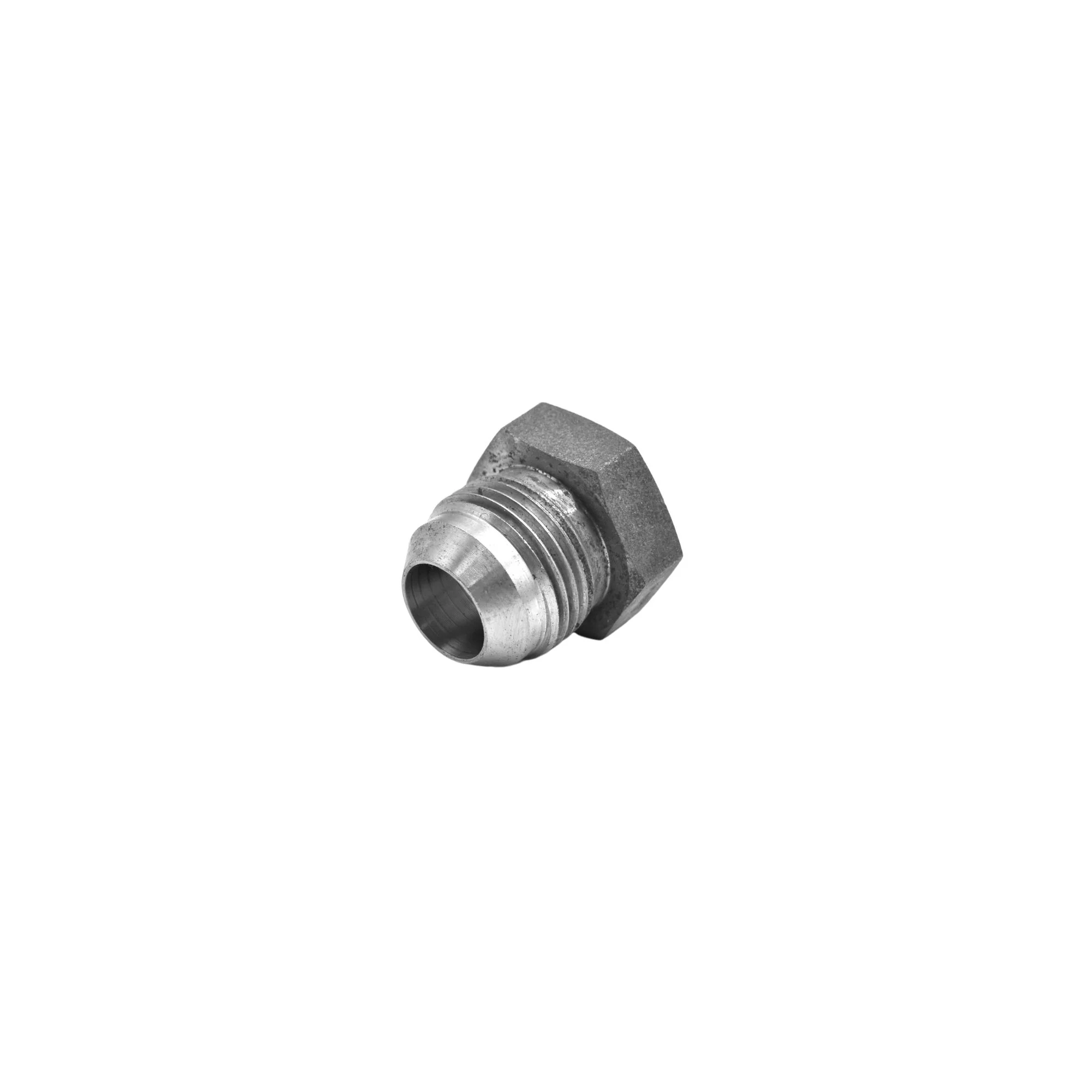

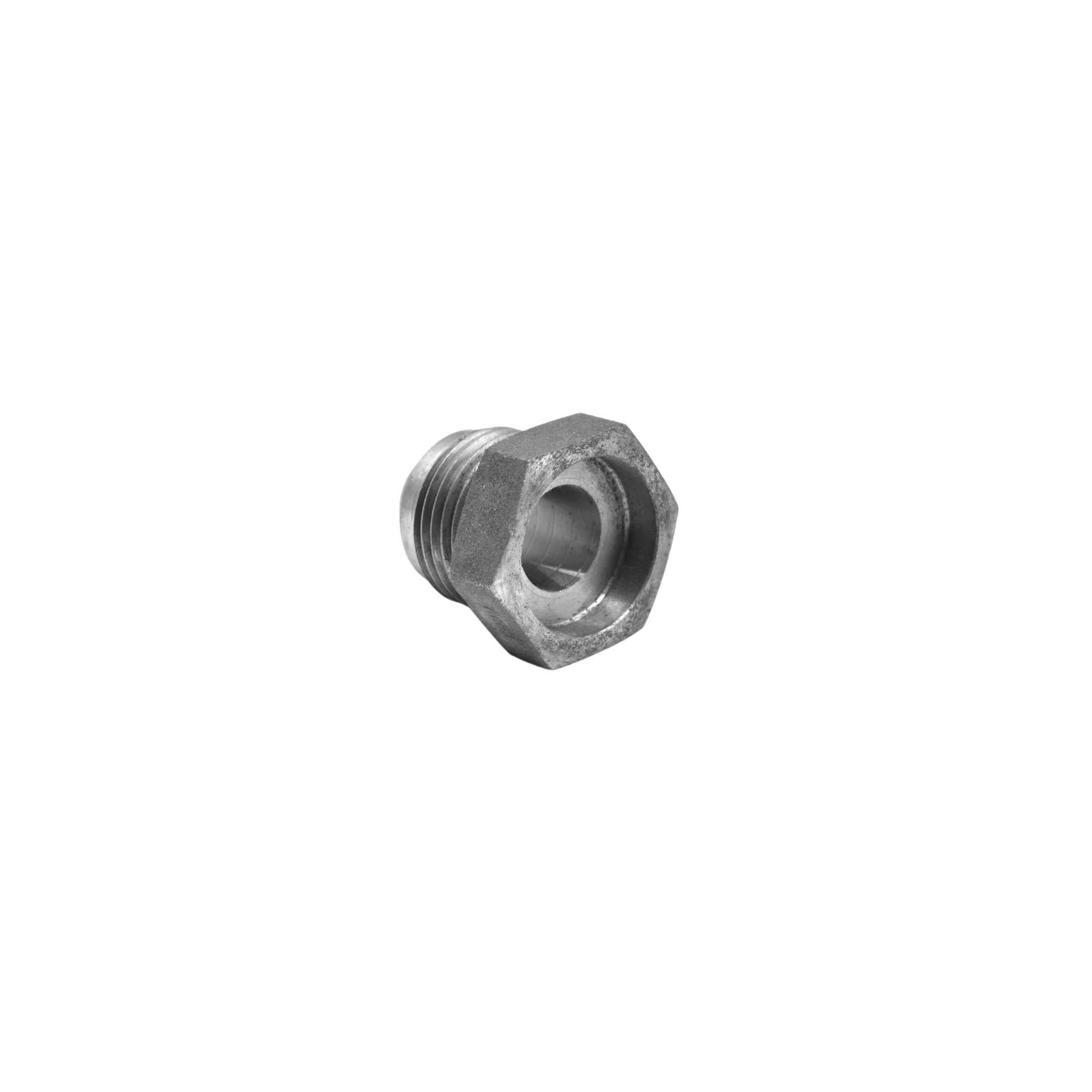

Hydraulics | 16Bore-12MJ Straight | 0403-16-12
| THREAD B1 TYPE | BORE |
| THREAD B1 SIZE | TUBE OD 1-3/4 |
| THREAD B1 DRILL IN | 1.006 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.416 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1607 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$5.31
Original: $15.16
-65%Hydraulics | 16Bore-12MJ Straight | 0403-16-12—
$15.16
$5.31Product Information
