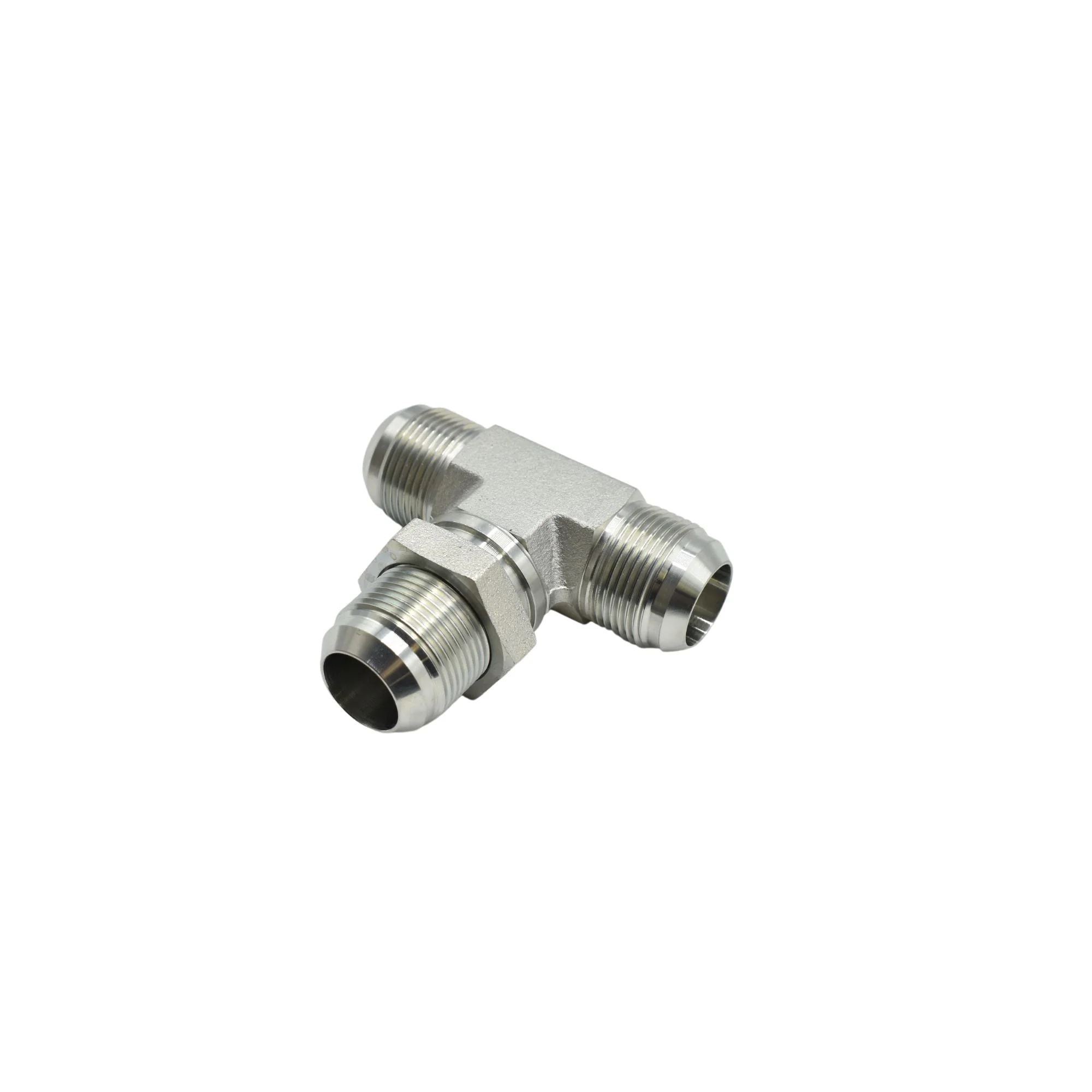

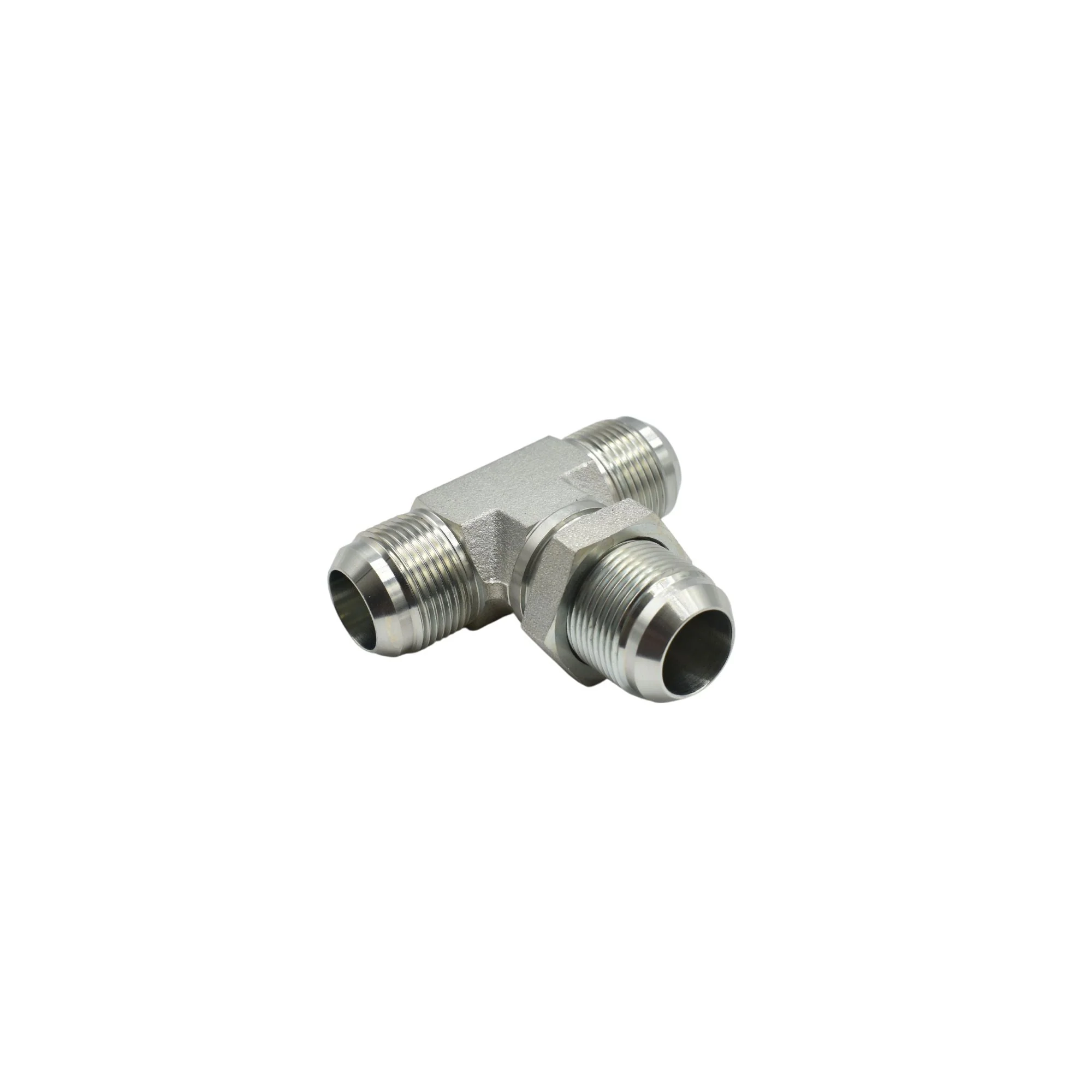

Hydraulics | -16 Bulkhead Branch Tee w/ Nut | 2703-LN-16-16-16-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.880 |
| OVERALL LENGTH L2 IN | 2.800 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.3328 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$18.96
Original: $54.16
-65%Hydraulics | -16 Bulkhead Branch Tee w/ Nut | 2703-LN-16-16-16-FG—
$54.16
$18.96Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.880 |
| OVERALL LENGTH L2 IN | 2.800 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.3328 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
