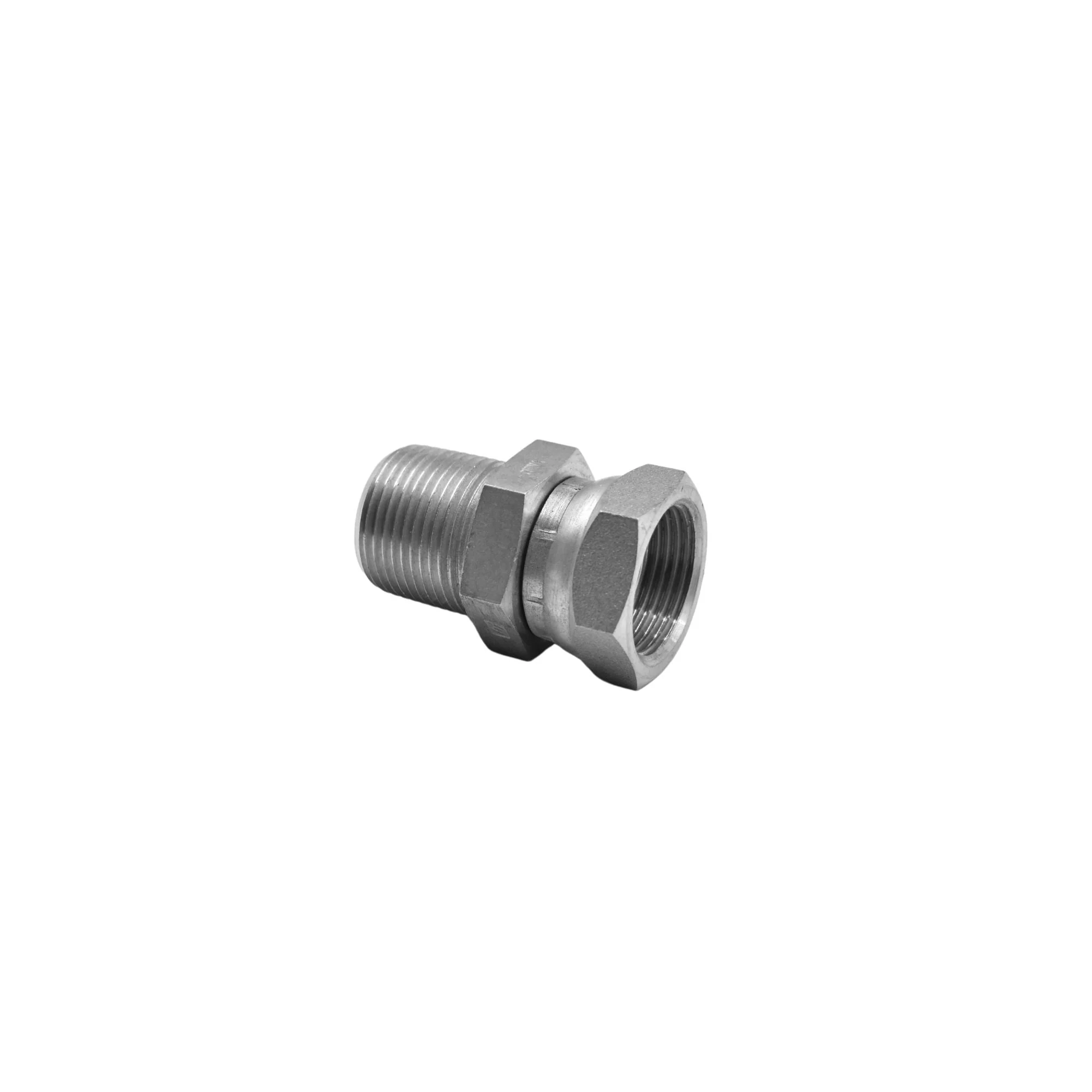

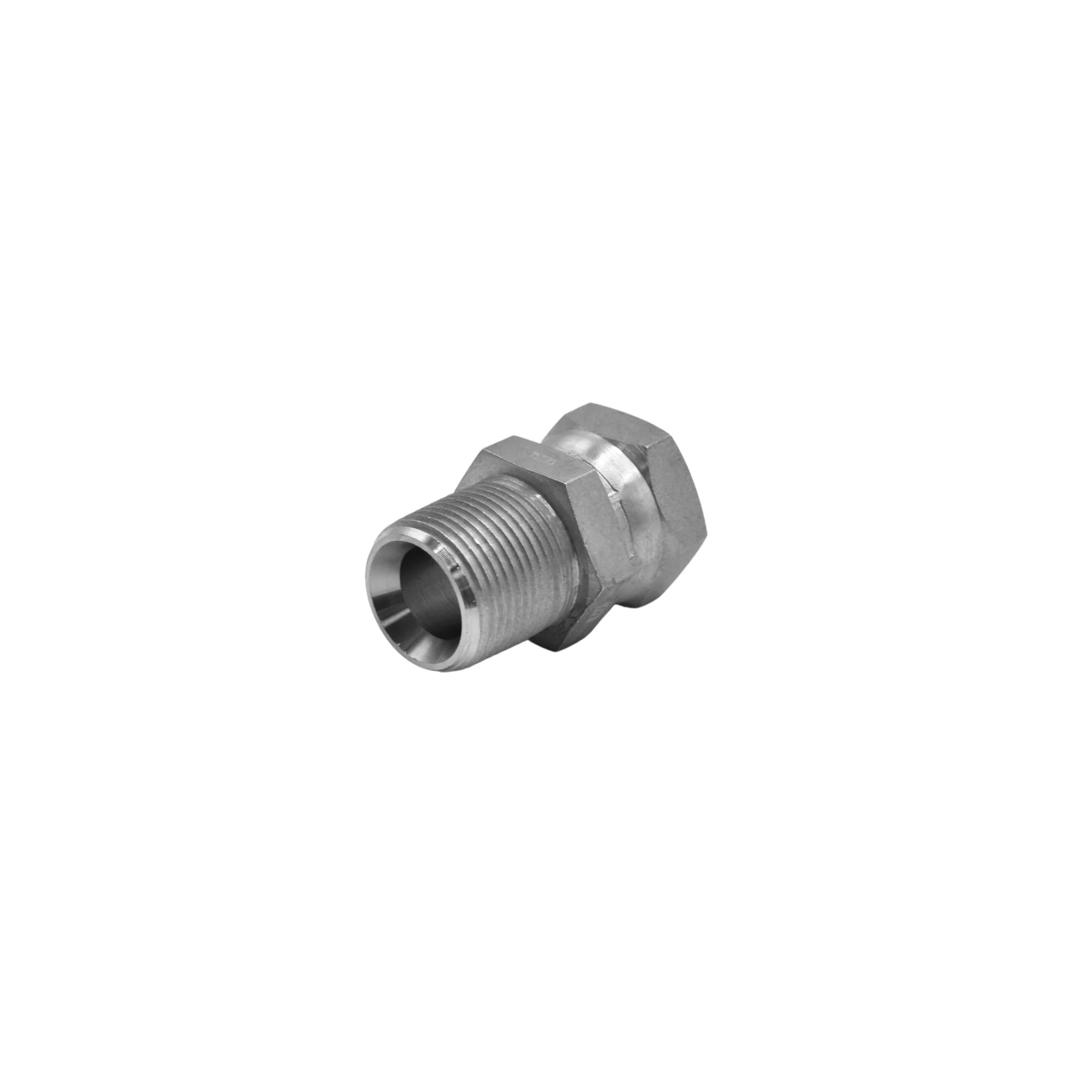

Hydraulics | 12MP-12FPS Straight SS | 1404-12-12-SS
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.75 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.080 |
| OVERALL LENGTH L2 IN | 1.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.25 |
$191.30
Hydraulics | 12MP-12FPS Straight SS | 1404-12-12-SS—
$191.30
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.75 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.080 |
| OVERALL LENGTH L2 IN | 1.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.25 |
