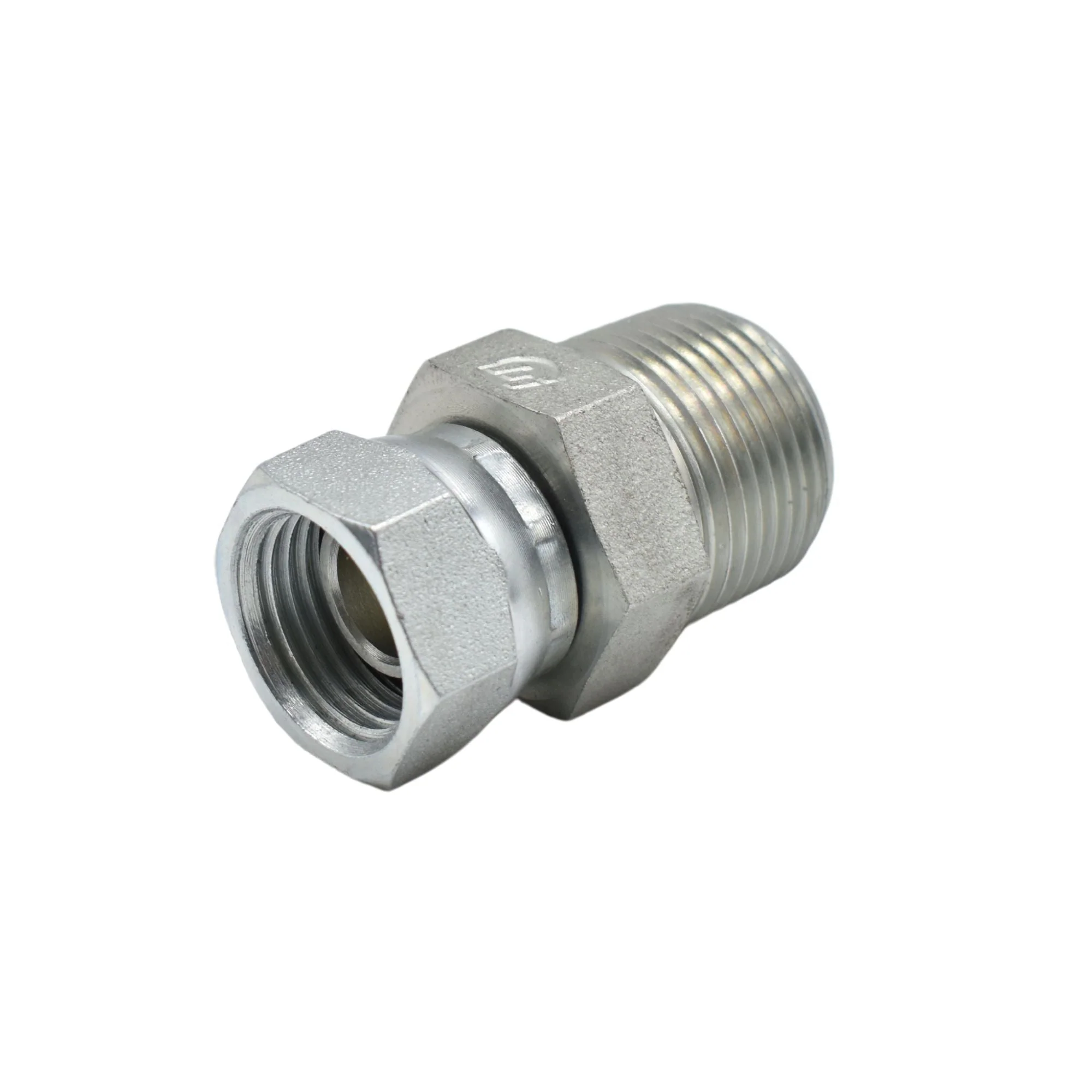

Hydraulics | 12MP-08FPS Straight Adapter | 1404-12-08
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.930 |
| OVERALL LENGTH L2 IN | 1.650 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2867 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.443 |
$2.10
Original: $5.99
-65%Hydraulics | 12MP-08FPS Straight Adapter | 1404-12-08—
$5.99
$2.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.930 |
| OVERALL LENGTH L2 IN | 1.650 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2867 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.443 |
