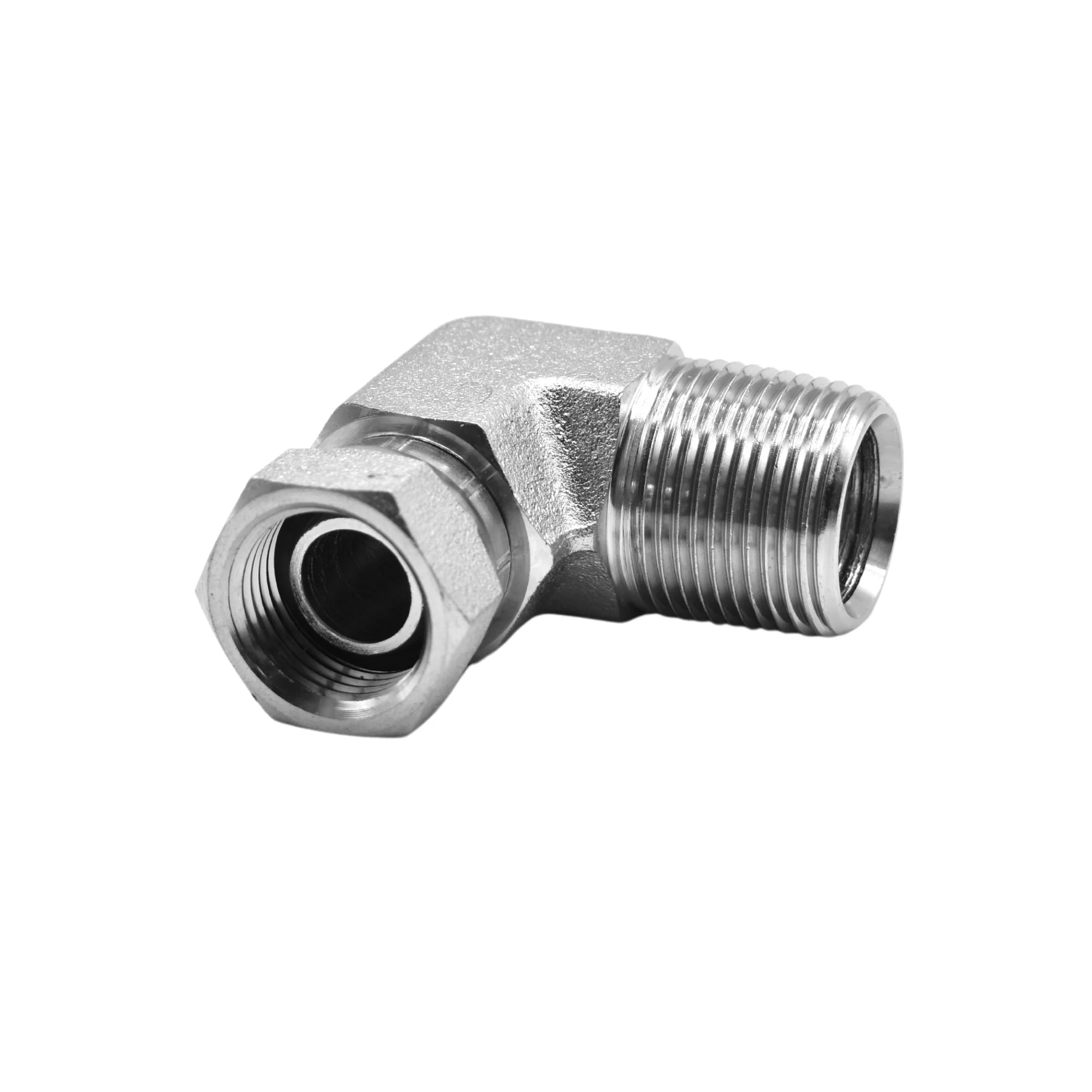

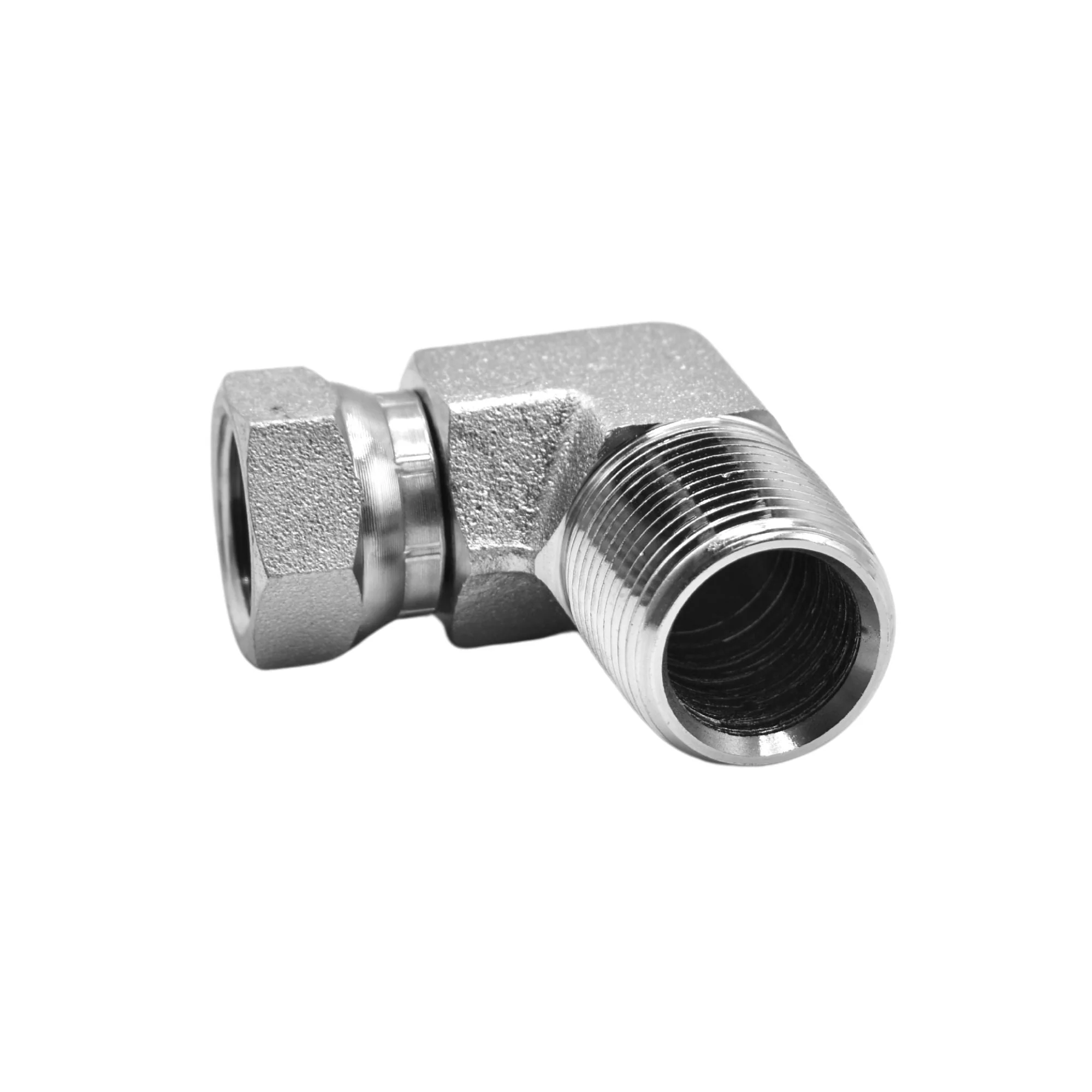

Hydraulics | 12MP-08FPS 90* Elb Forg Adapter | 1501-12-08-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.440 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.590 |
| CENTERLINE LENGTH M IN | 1.610 |
| CENTERLINE LENGTH M2 IN | 1.330 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.485 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.475 |
