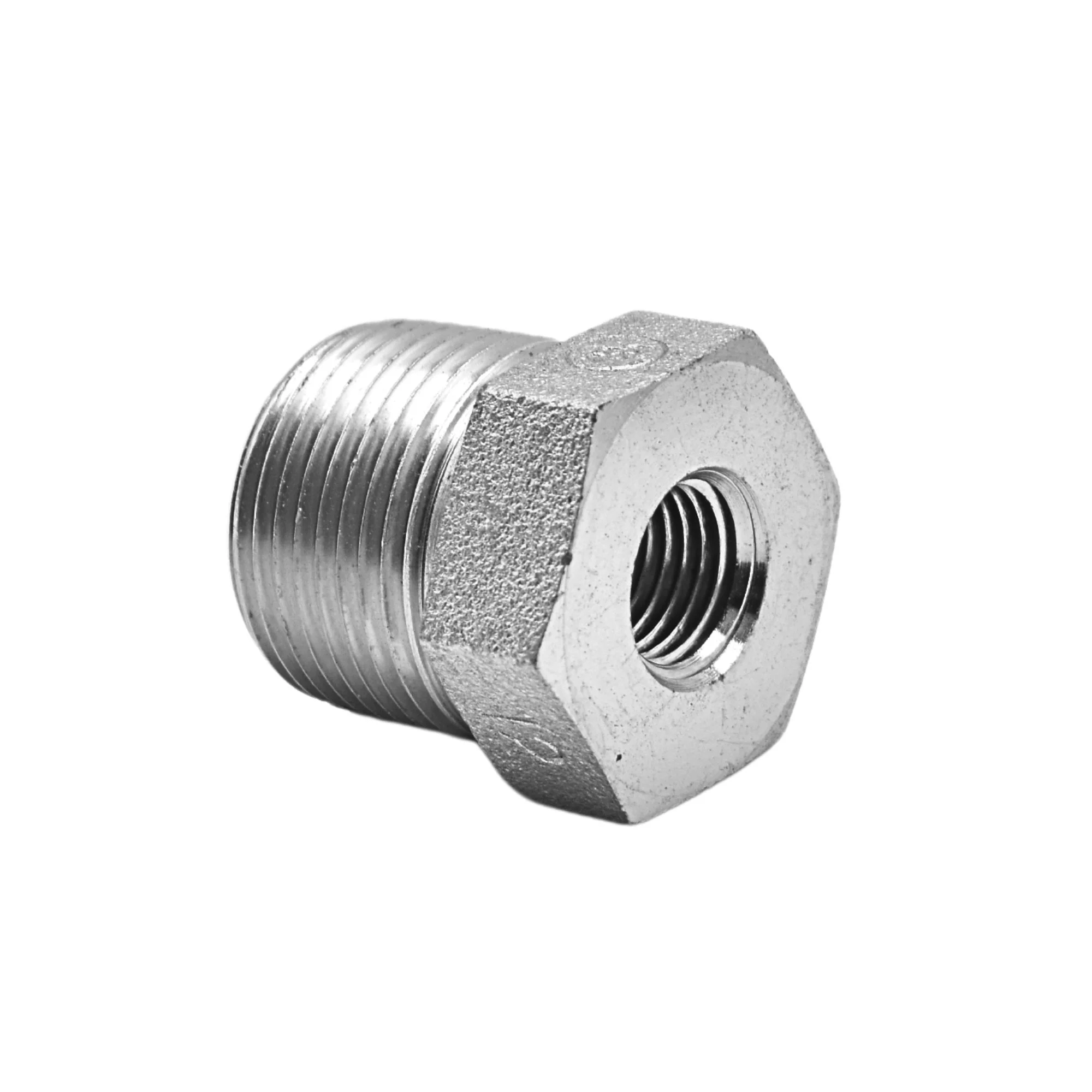

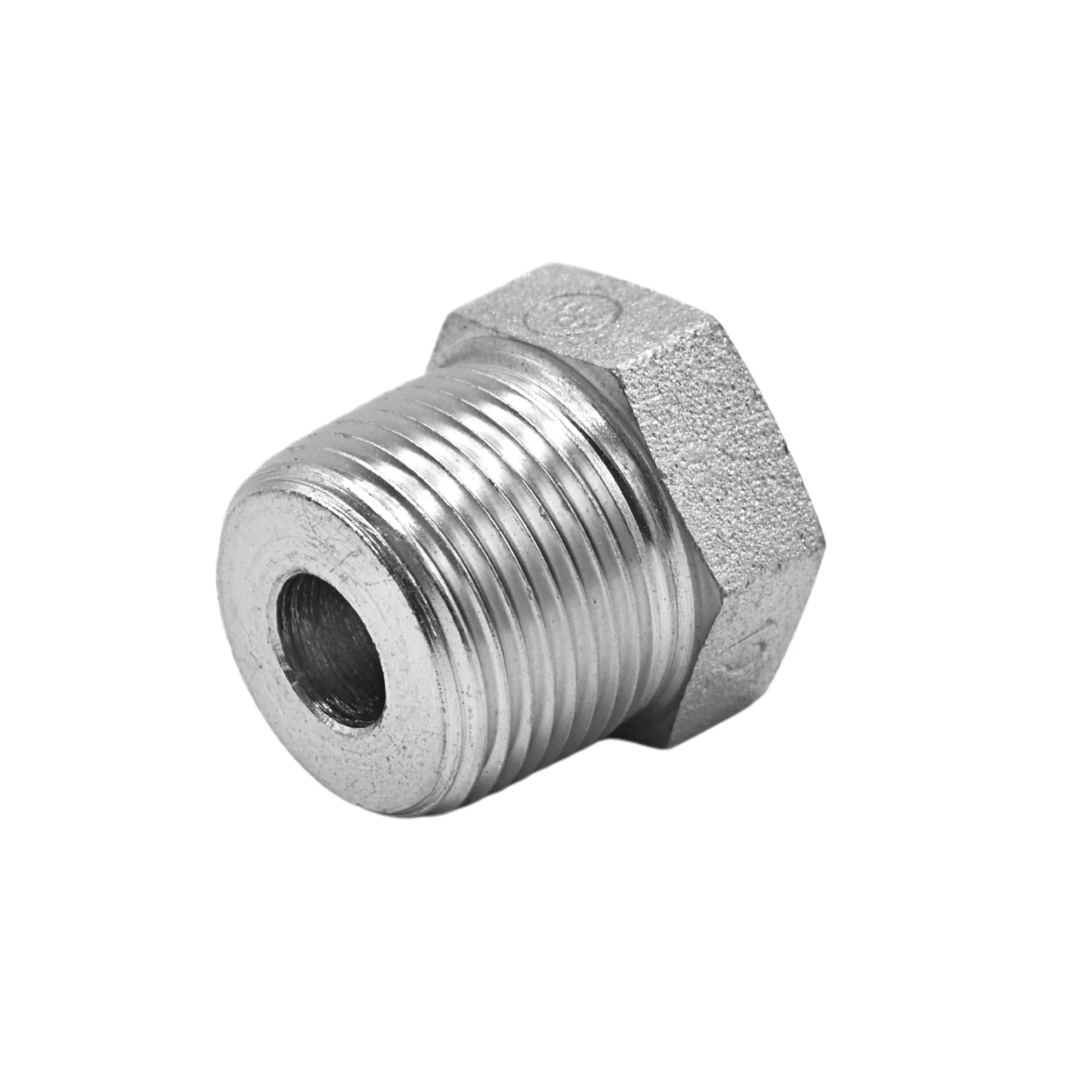

Hydraulics | 12MP-04FP Red Bushing Adapter | 5406-12-04
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2272 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$4.50
Hydraulics | 12MP-04FP Red Bushing Adapter | 5406-12-04—
$4.50
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2272 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
