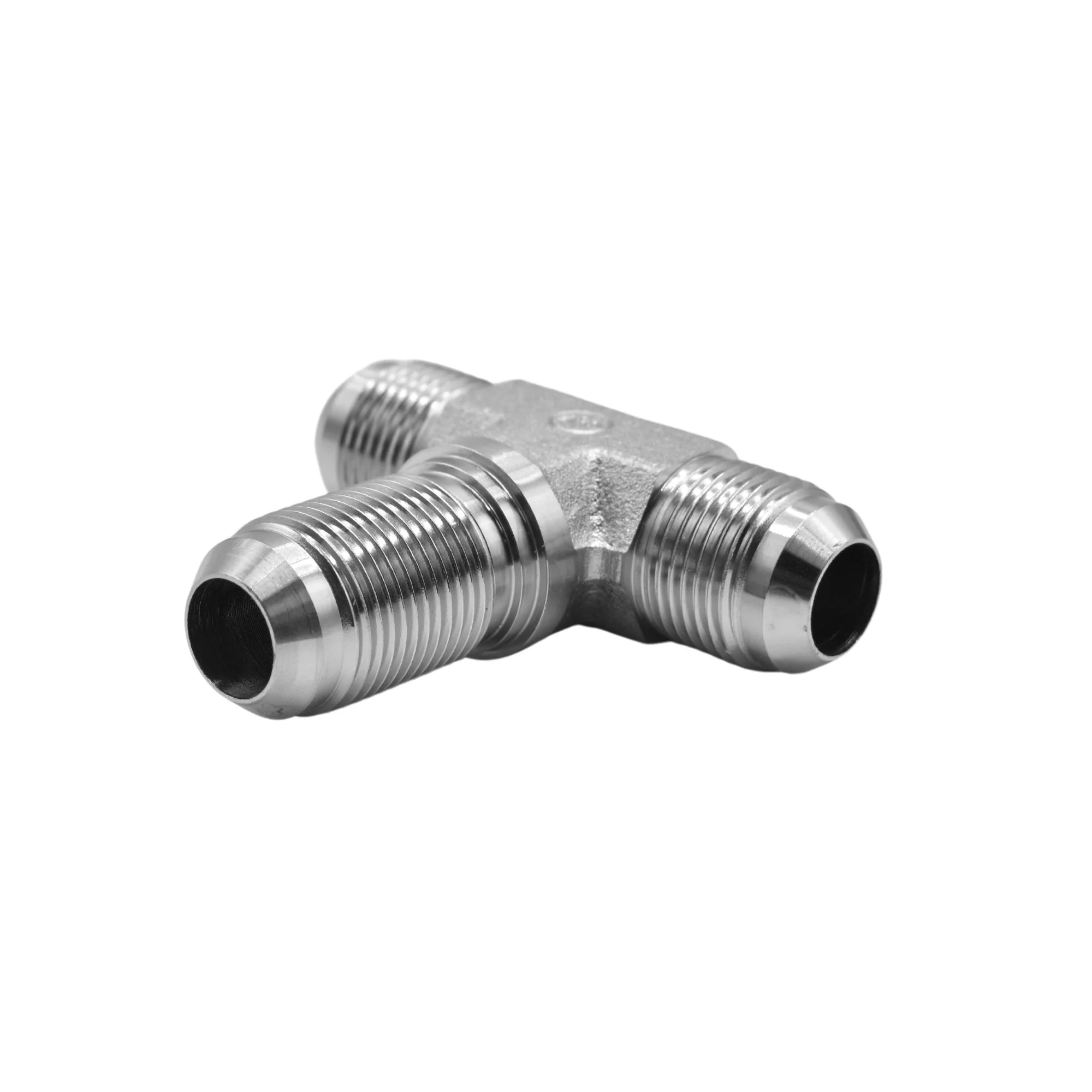

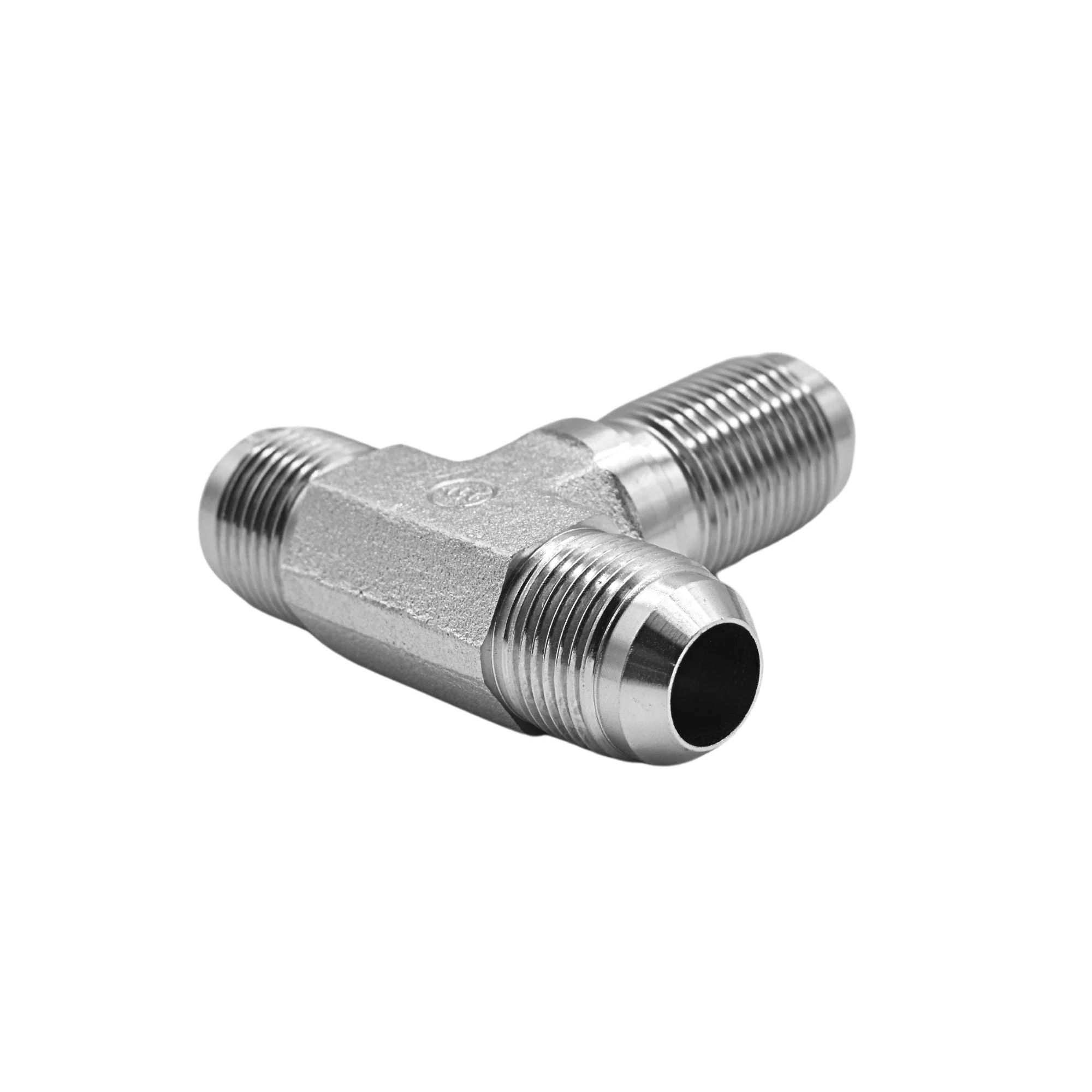

Hydraulics | 12MJ-12MJ-12MJ Blkhd Branch Tee Adapter | 2703-12-12-12-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.560 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 1.780 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.8562 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$6.36
Original: $18.18
-65%Hydraulics | 12MJ-12MJ-12MJ Blkhd Branch Tee Adapter | 2703-12-12-12-FG—
$18.18
$6.36Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.560 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 1.780 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.8562 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
