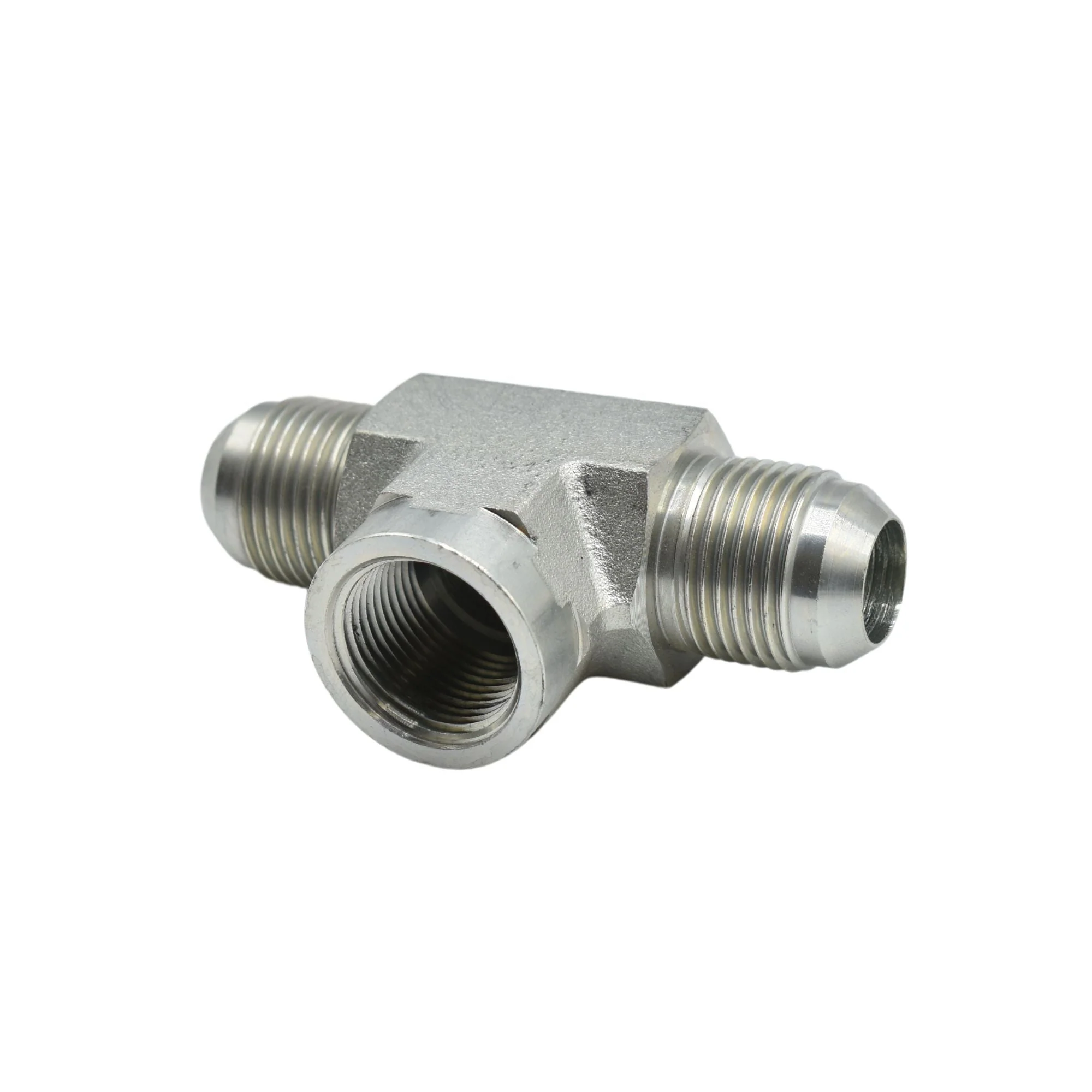

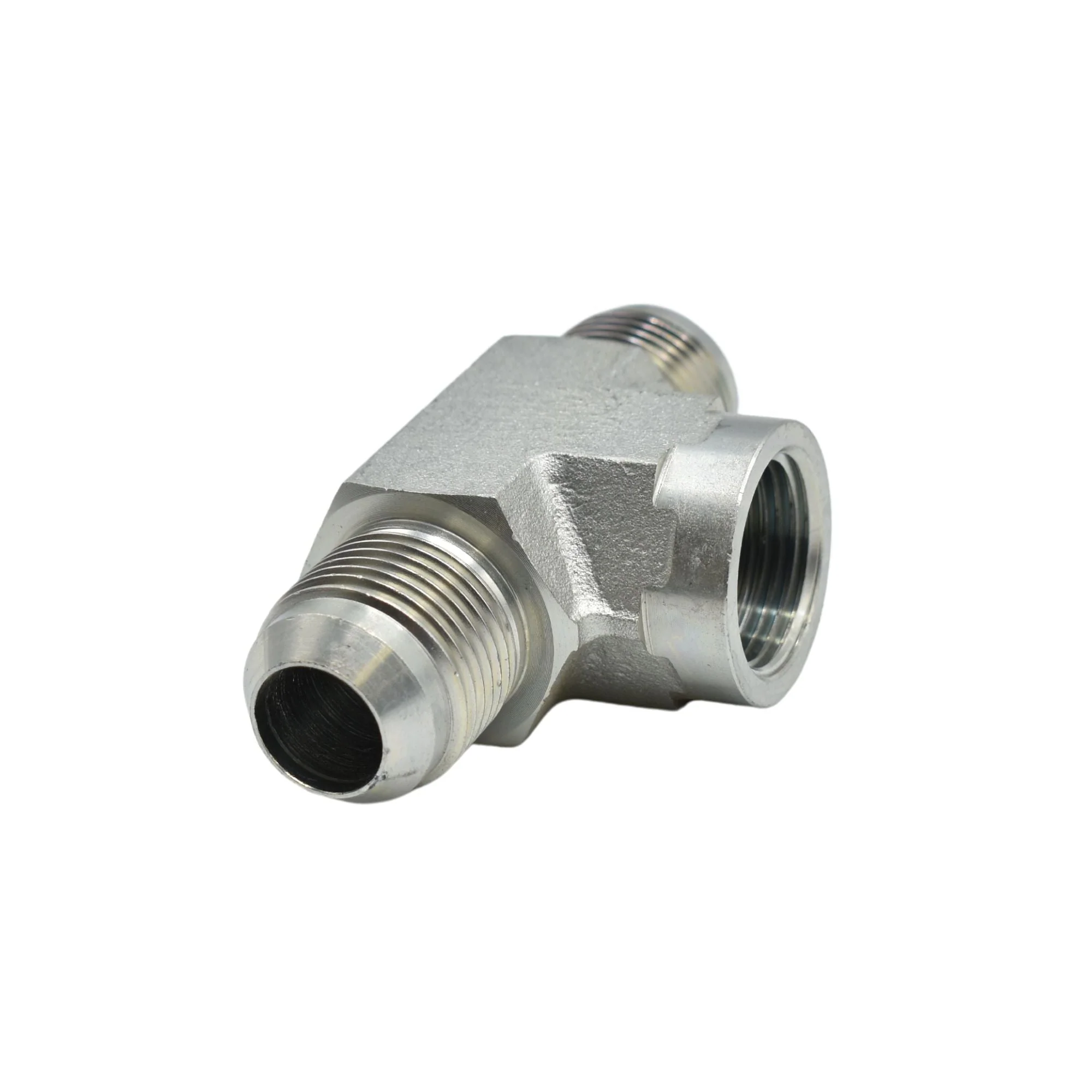

Hydraulics | 12MJ-12MJ-12FP Tee Forg Adapter | 2602-12-12-12-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.9 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.998 |
$6.58
Original: $18.81
-65%Hydraulics | 12MJ-12MJ-12FP Tee Forg Adapter | 2602-12-12-12-FG—
$18.81
$6.58Product Information
