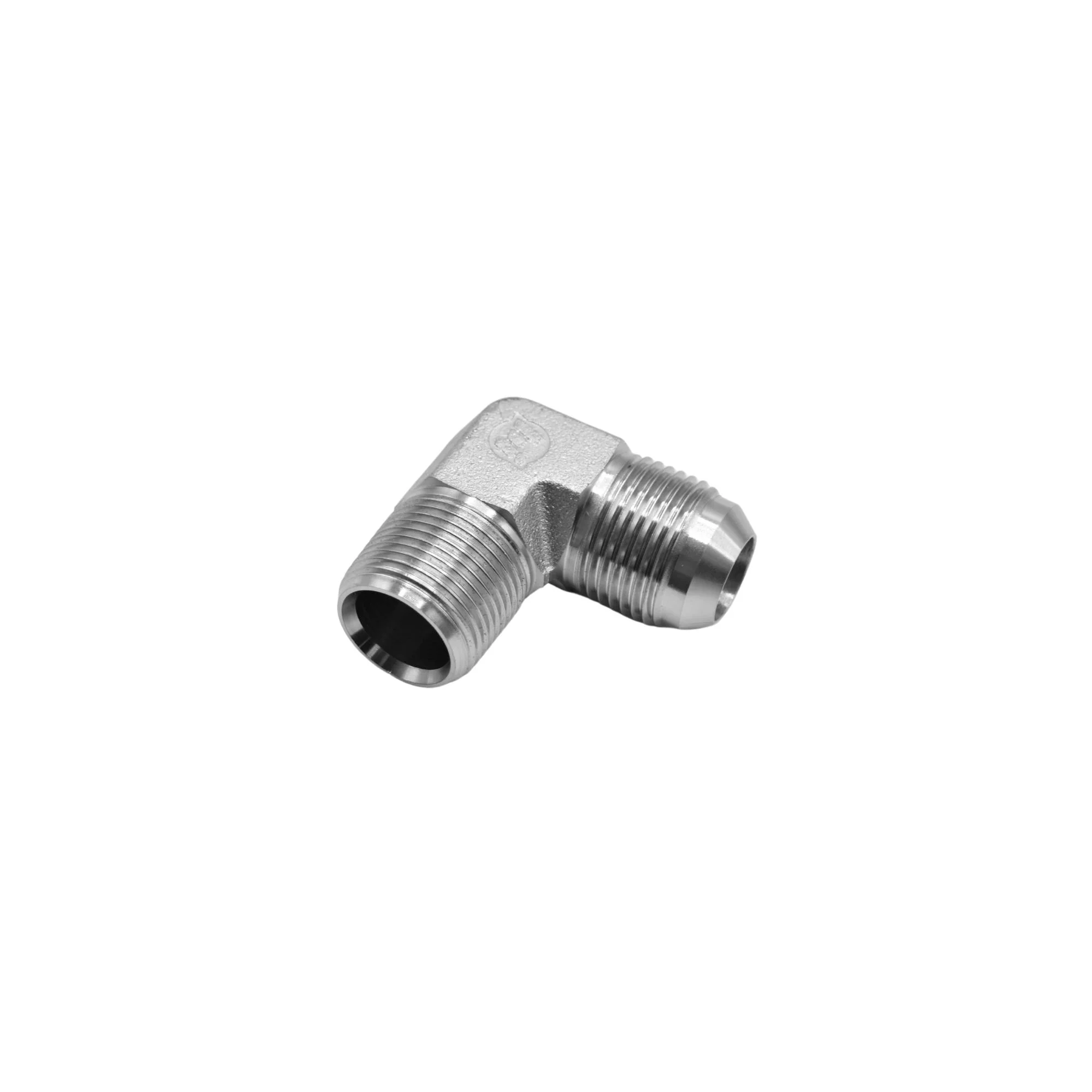

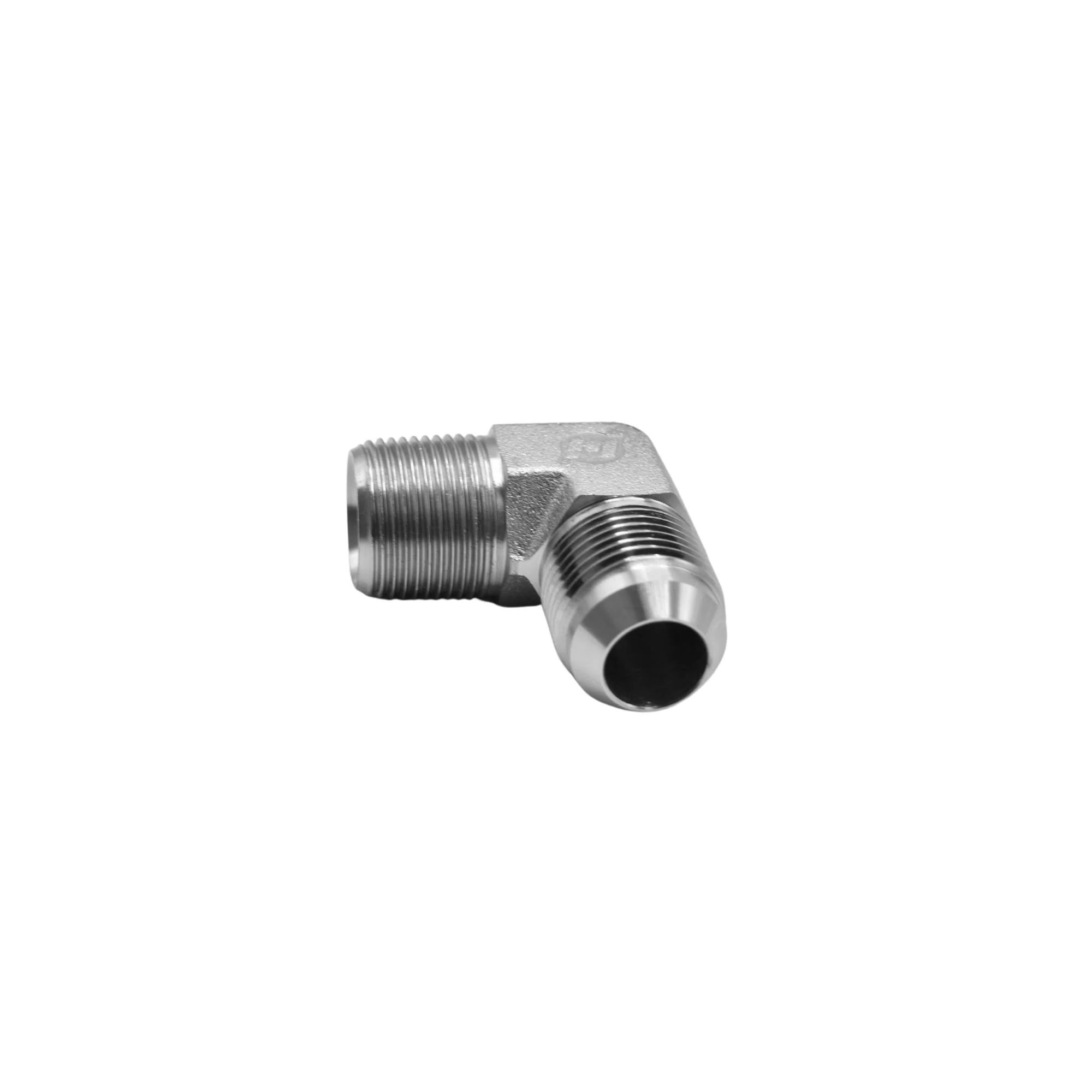

Hydraulics | 12MJ-12MBSPT 90deg Elb | 7200-12-12-FG
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 18.3 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M (MM) | 42.2 |
| CENTERLINE LENGTH L (MM) | 40.4 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.450 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.336 |
$10.26
Original: $29.32
-65%Hydraulics | 12MJ-12MBSPT 90deg Elb | 7200-12-12-FG—
$29.32
$10.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 3/4-14 |
| THREAD DRILL B2 (MM) | 18.3 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 27.0 |
| CENTERLINE LENGTH M (MM) | 42.2 |
| CENTERLINE LENGTH L (MM) | 40.4 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.450 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.336 |
