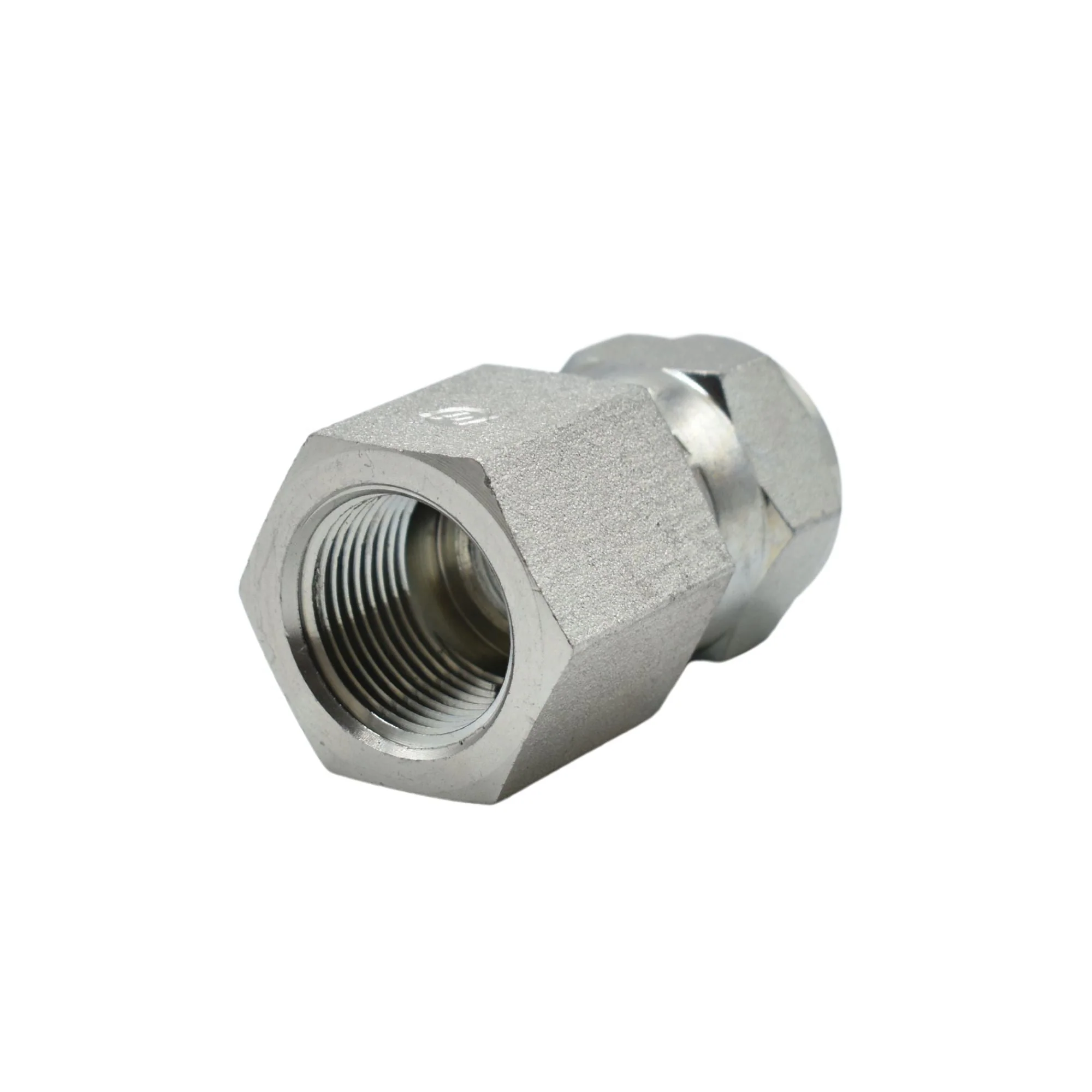

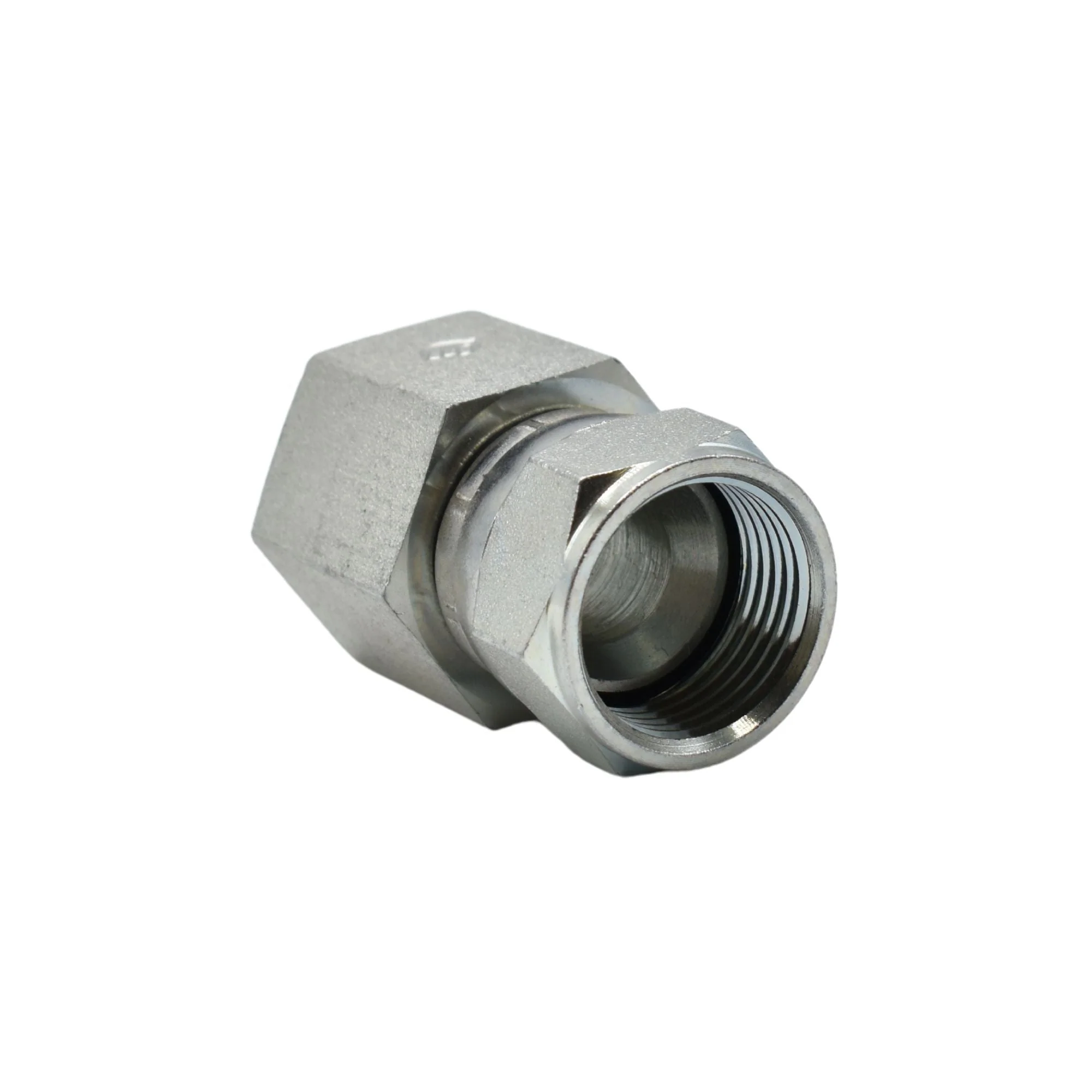

Hydraulics | 12FP-12FJS Straight Adapter | 6506-12-12
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.290 |
| OVERALL LENGTH L2 IN | 1.720 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3533 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$2.75
Original: $7.87
-65%Hydraulics | 12FP-12FJS Straight Adapter | 6506-12-12—
$7.87
$2.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.290 |
| OVERALL LENGTH L2 IN | 1.720 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3533 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
