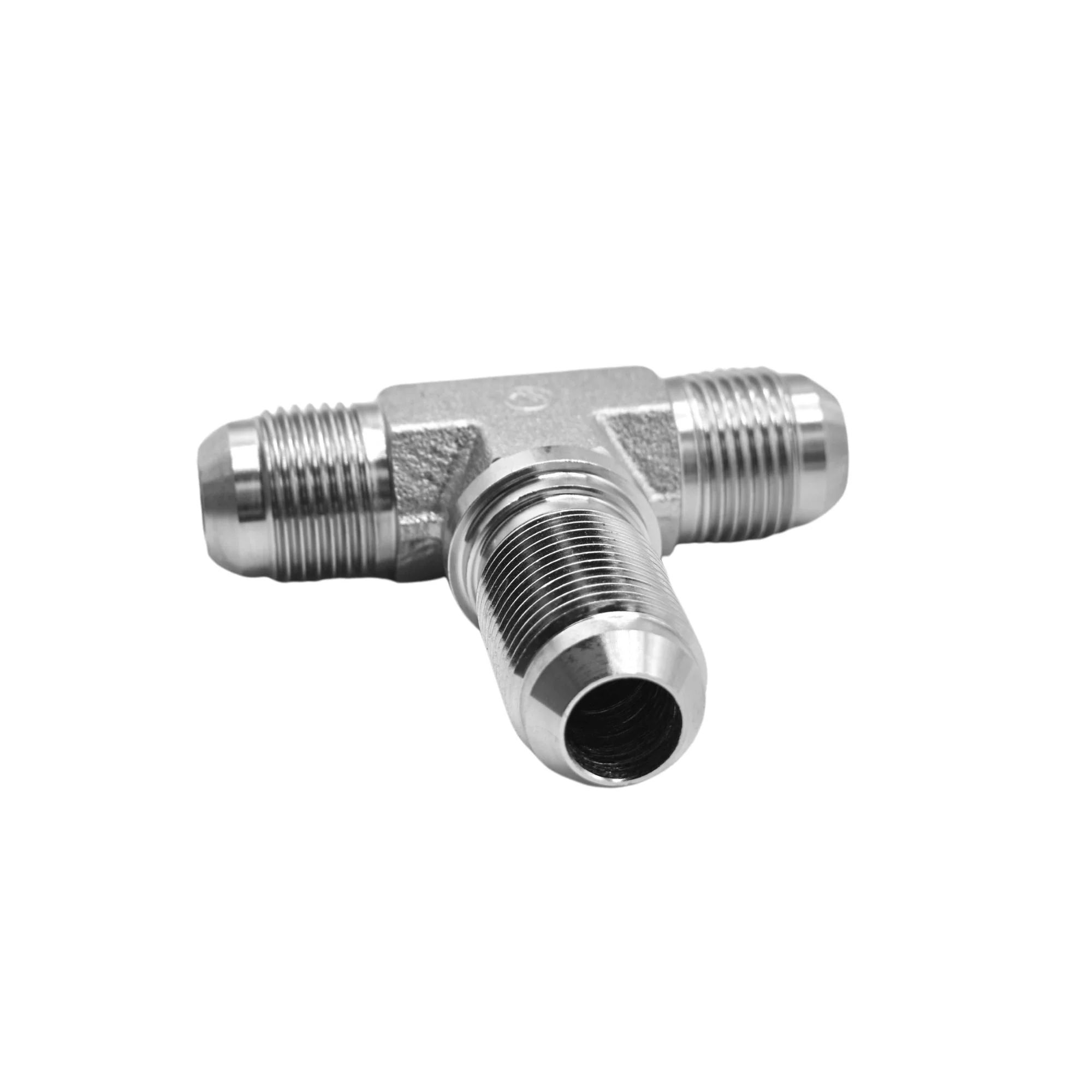

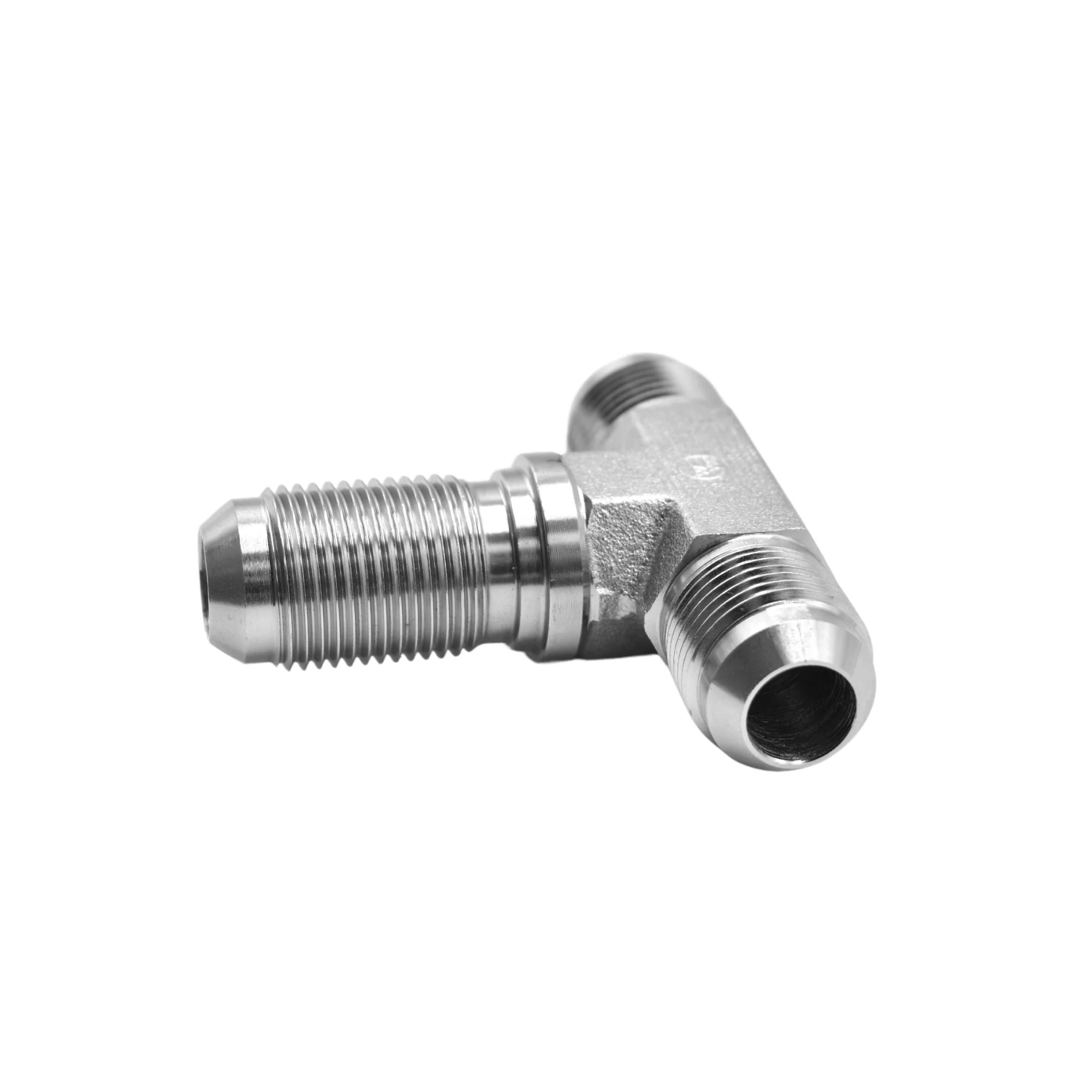

Hydraulics | 10MJ-10MJ-10MJ Blkhd Branch Tee Adapter | 2703-10-10-10-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 3.120 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 1.560 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$10.17
Hydraulics | 10MJ-10MJ-10MJ Blkhd Branch Tee Adapter | 2703-10-10-10-FG—
$10.17
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 3.120 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 1.560 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
