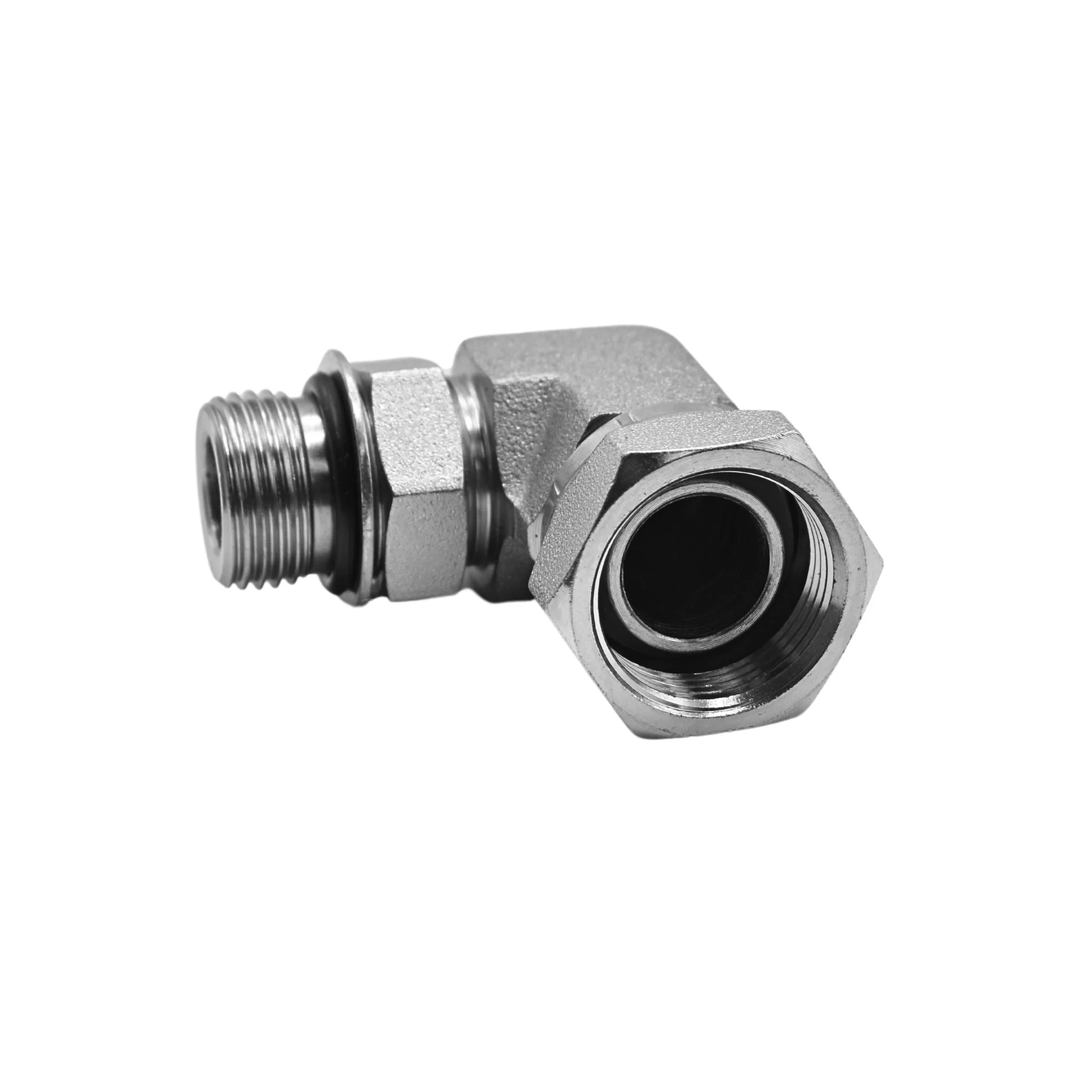

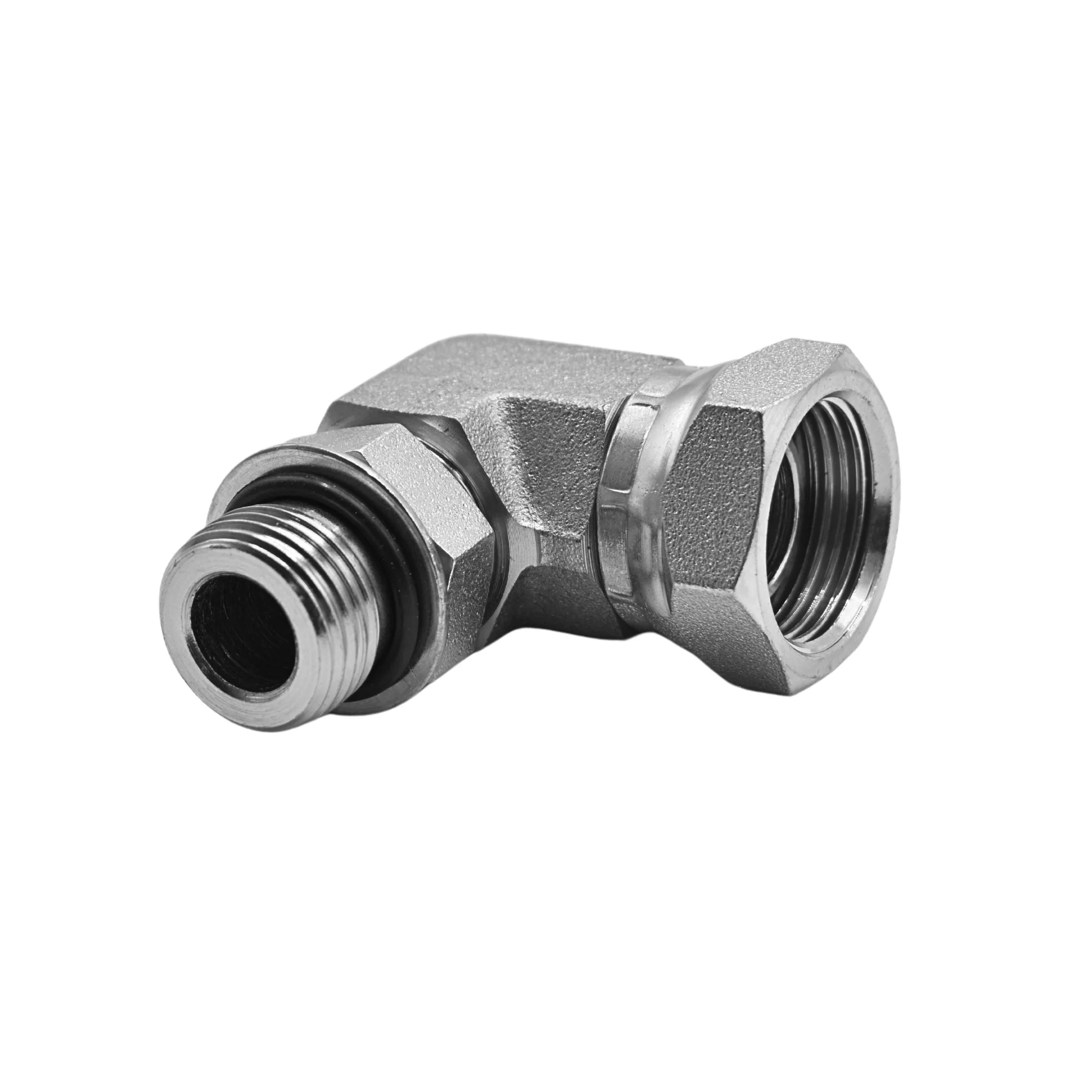

Hydraulics | 10MAORB-12FPS 90deg Elb Forg Adapter | 6901-10-12-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.620 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.000 |
| C HEX 2 IN | 1.250 |
| OVERALL LENGTH L IN | 1.620 |
| OVERALL LENGTH L2 IN | 1.270 |
| CENTERLINE LENGTH M IN | 1.780 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.5625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$9.75
Original: $27.85
-65%Hydraulics | 10MAORB-12FPS 90deg Elb Forg Adapter | 6901-10-12-NWO-FG—
$27.85
$9.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.620 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.000 |
| C HEX 2 IN | 1.250 |
| OVERALL LENGTH L IN | 1.620 |
| OVERALL LENGTH L2 IN | 1.270 |
| CENTERLINE LENGTH M IN | 1.780 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.5625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
