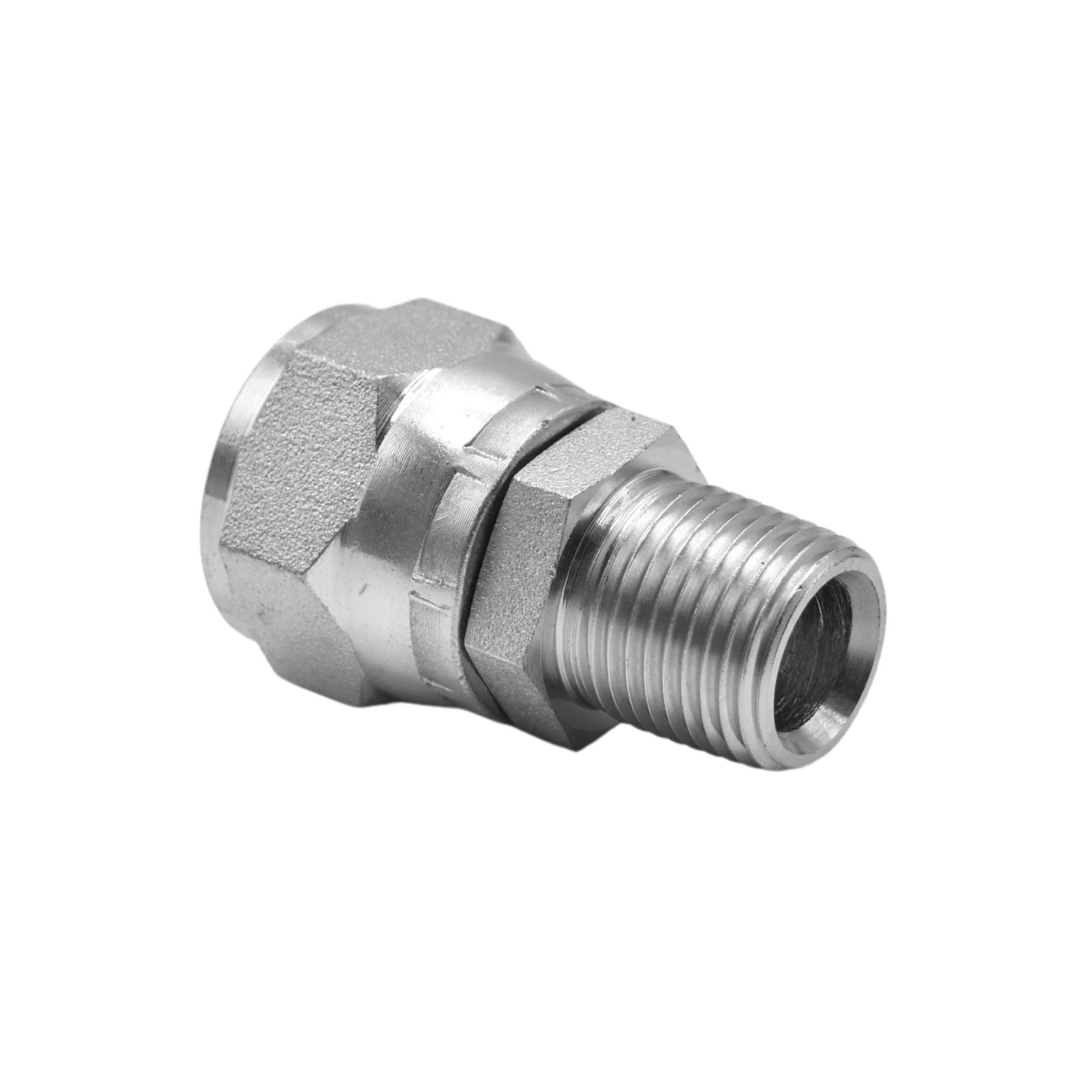

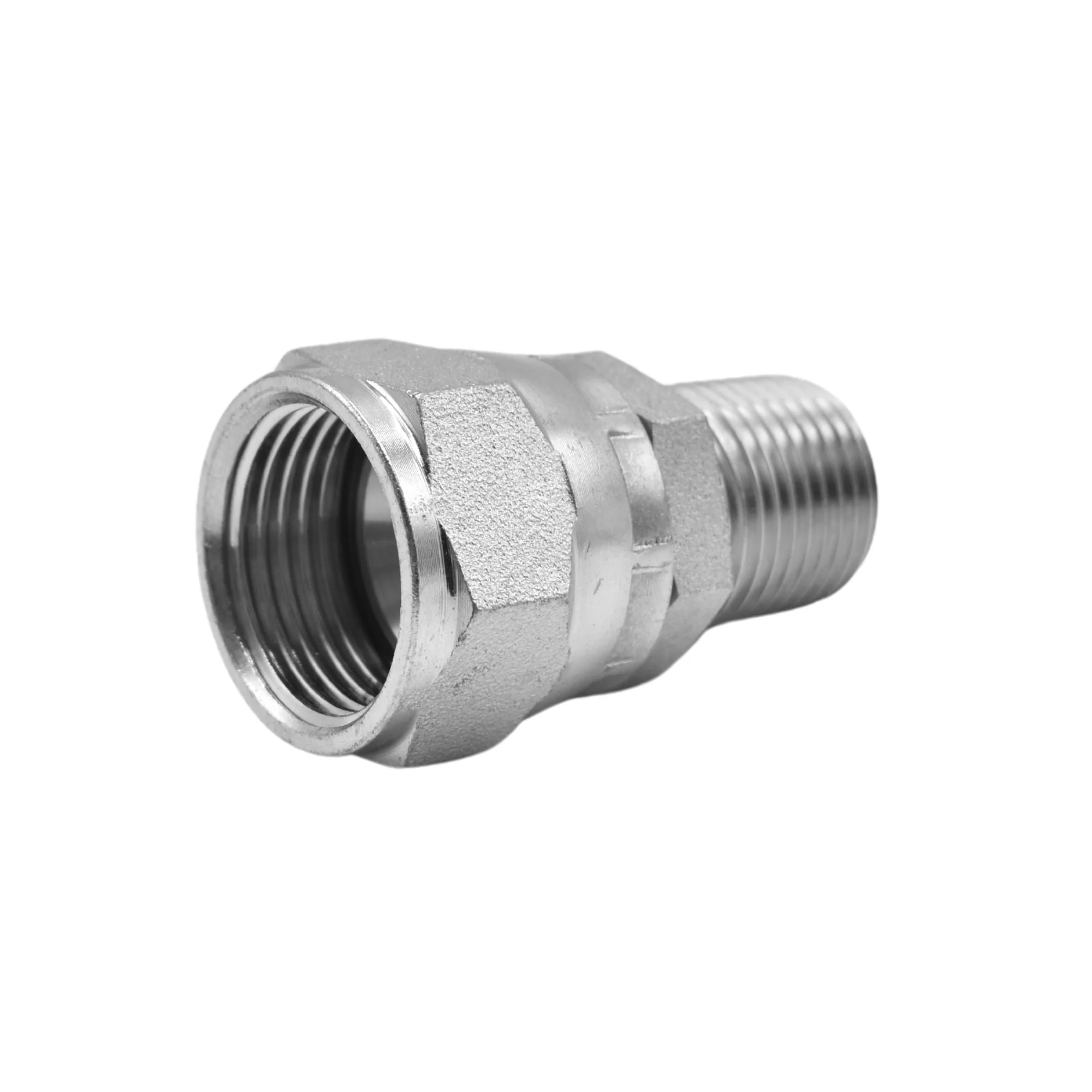

Hydraulics | 08MP-12FJS Straight Adapter | 6505-08-12
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.140 |
| OVERALL LENGTH L2 IN | 1.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3296 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$6.42
Original: $18.34
-65%Hydraulics | 08MP-12FJS Straight Adapter | 6505-08-12—
$18.34
$6.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.140 |
| OVERALL LENGTH L2 IN | 1.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3296 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
