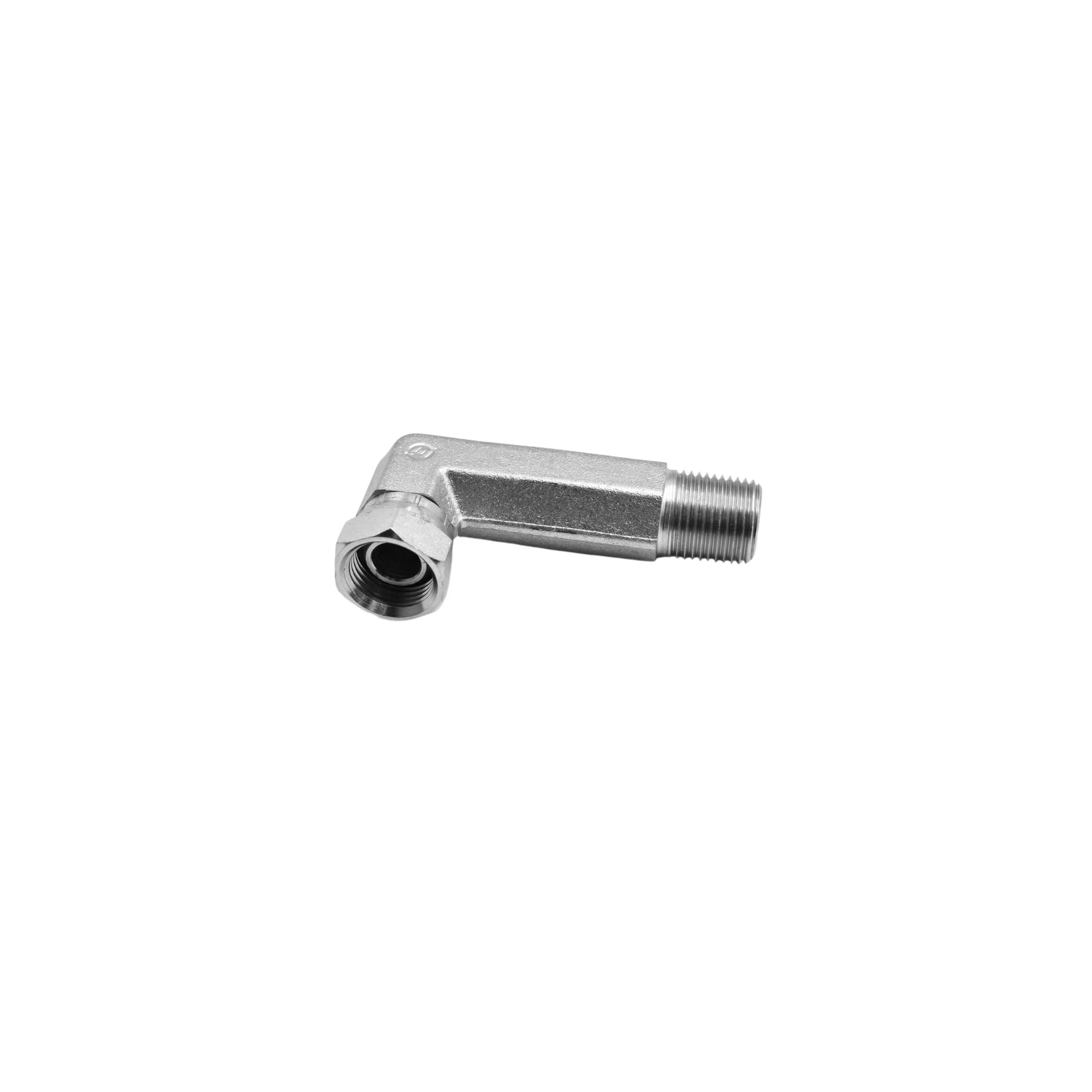

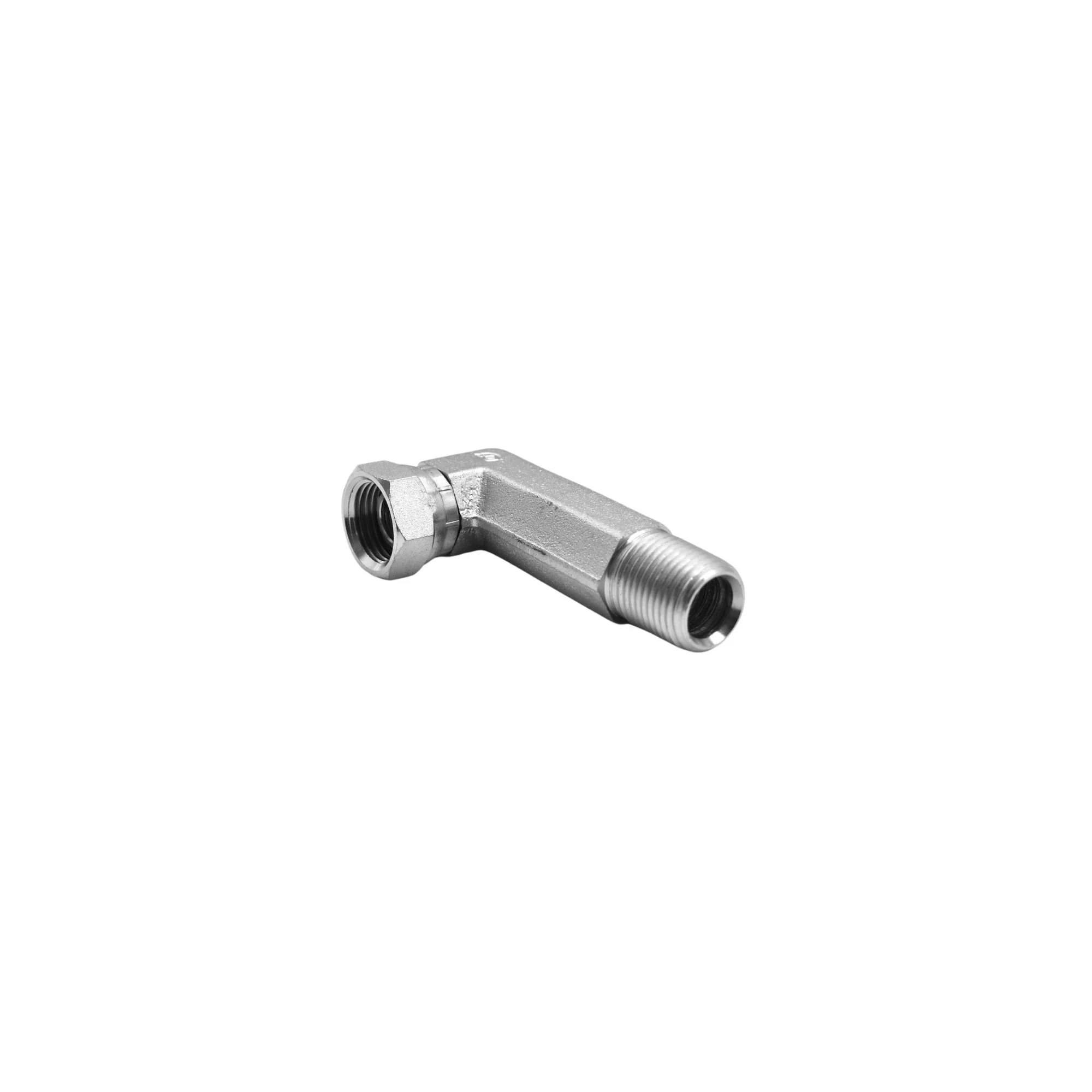

Hydraulics | 08MP-08FPS 90deg Elb Long | 1501-L-08-08-FG
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.460 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 3.190 |
| CENTERLINE LENGTH M IN | 1.110 |
| CENTERLINE LENGTH M2 IN | 1.390 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$6.57
Original: $18.76
-65%Hydraulics | 08MP-08FPS 90deg Elb Long | 1501-L-08-08-FG—
$18.76
$6.57Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.460 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 3.190 |
| CENTERLINE LENGTH M IN | 1.110 |
| CENTERLINE LENGTH M2 IN | 1.390 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
