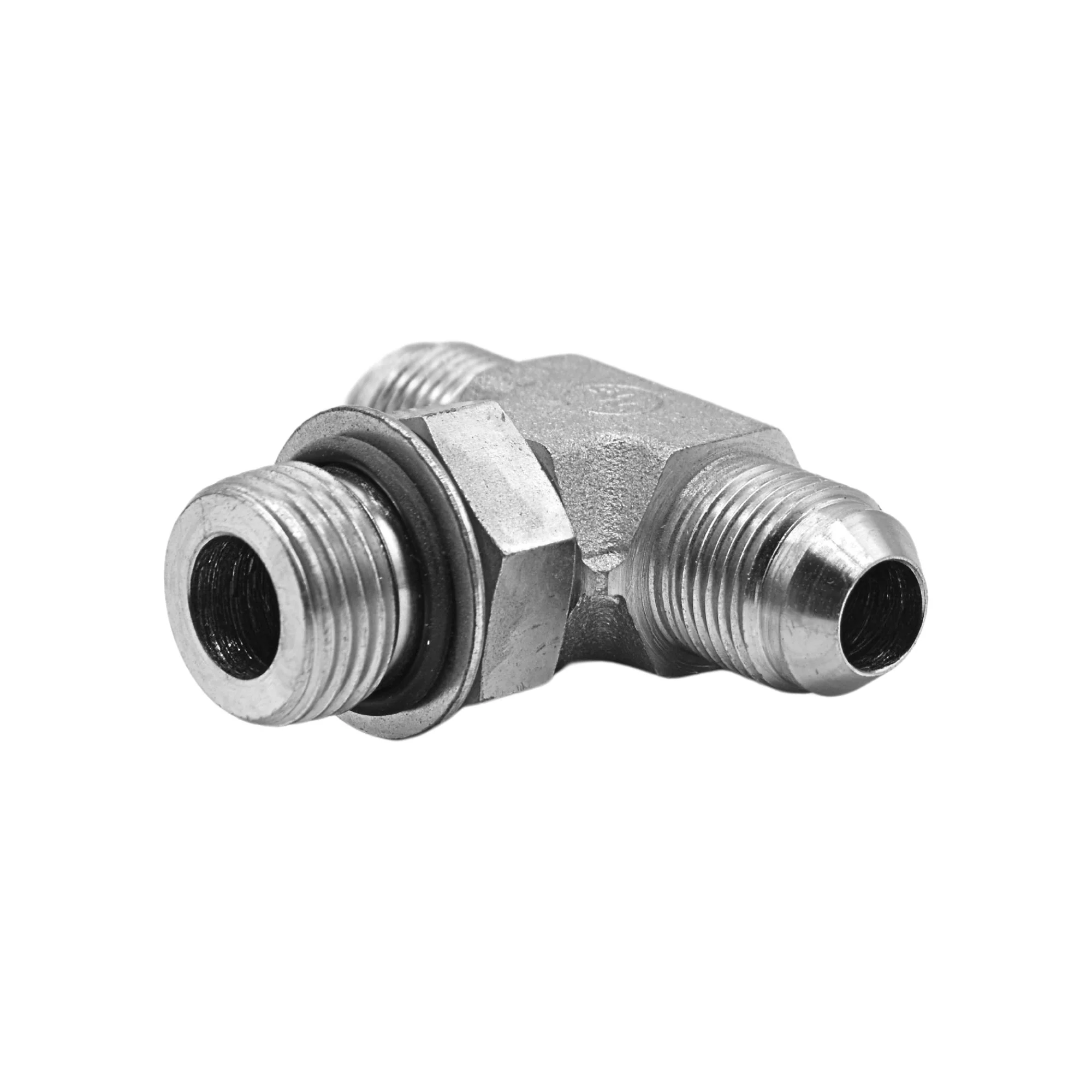

Hydraulics | 08MJ-08MJ-10MAORB Branch Tee Adapter | 6803-08-08-10-NWO-FG
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 1.700 |
| CENTERLINE LENGTH M IN | 1.330 |
| CENTERLINE LENGTH M2 IN | 1.330 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.428 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$6.52
Original: $18.63
-65%Hydraulics | 08MJ-08MJ-10MAORB Branch Tee Adapter | 6803-08-08-10-NWO-FG—
$18.63
$6.52Product Information
